Parameter Information
|
Brand name |

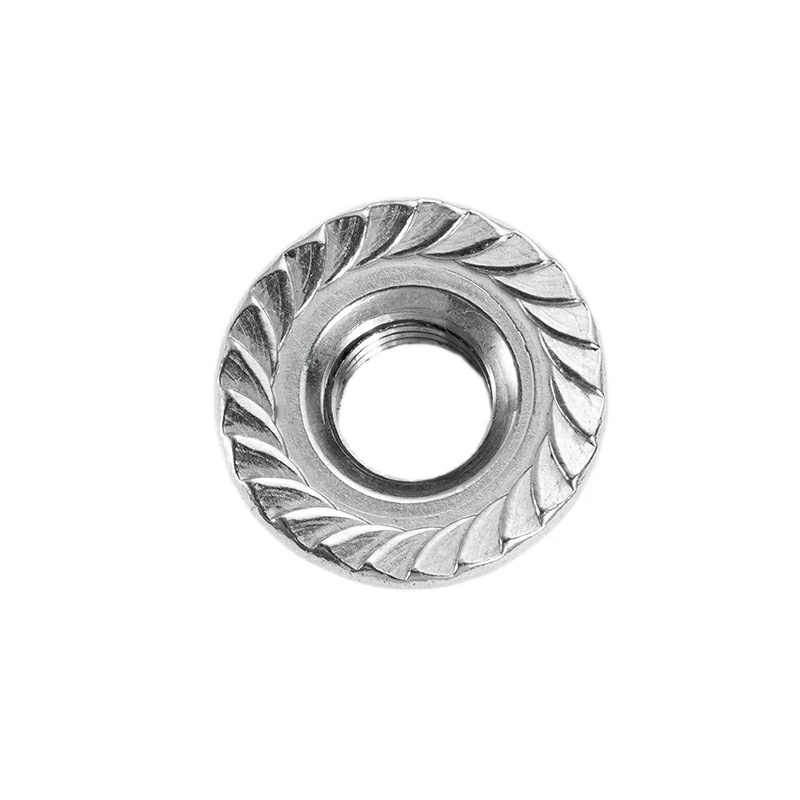

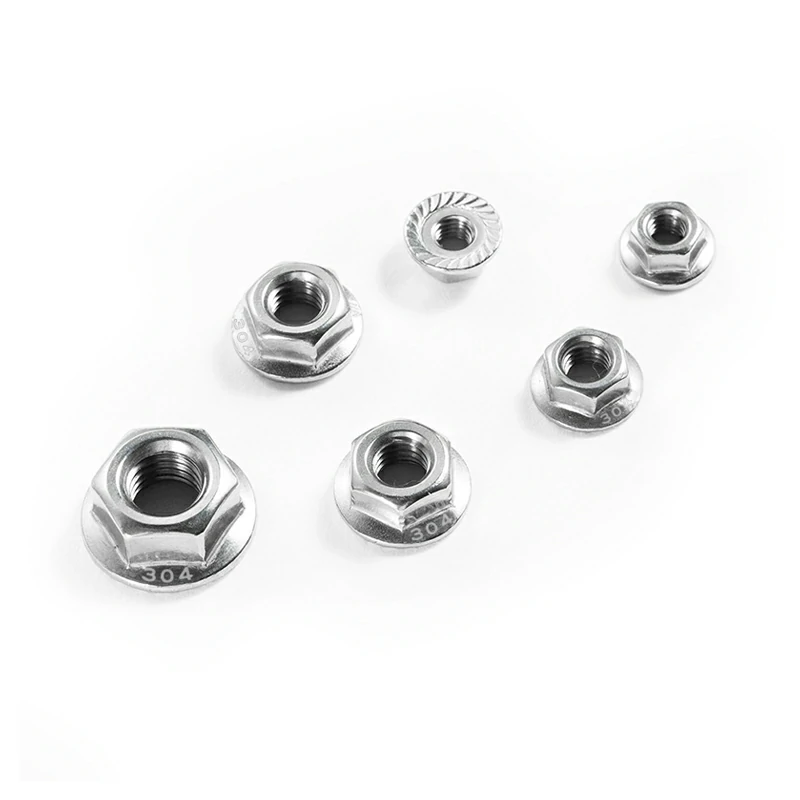

American hexagon flange nut |
|
Standard |
DIN6923 |
|
Type |
Flange nut |
|
Wood quality |
304/316stainless steel |
|
Standard type |
American standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

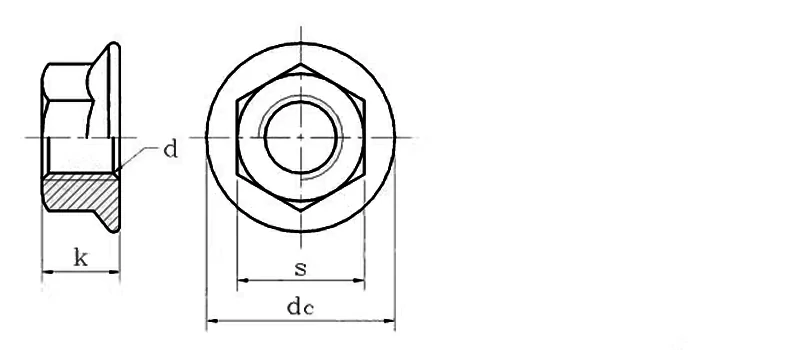

Specification
|
Nominal diameter -d |
PP |
k |
s |
dc |
|||
|
UNC |
max |
min |
max |
min |
max |
min |
|
|
6# |
32 |
0.71 |
0.156 |
0.312 |
0.302 |
0.422 |
0.406 |
|
8# |
32 |
0.203 |
0.187 |
0.344 |
0.334 |
0.469 |
0.452 |
|
10# |
24 |
0.219 |
0.203 |
0.375 |
0.365 |
0.5 |
0.45 |
|
12# |
24 |
0.236 |
0.222 |
0.438 |
0.428 |
0.594 |
0.574 |
|
1/4″ |
20 |
0.236 |
0.222 |
0.438 |
0.428 |
0.594 |
0.574 |
|
5/16″ |
18 |
0.283 |
0.268 |
0.5 |
0.489 |
0.68 |
0.66 |
|
3/8″ |
16 |
0.347 |
0.33 |
0.562 |
0.551 |
0.75 |
0.721 |
|
7/6″ |
14 |
0.395 |
0.375 |
0.688 |
0.675 |
0.937 |
0.91 |
|
1/2″ |
13 |
0.458 |
0.437 |
0.75 |
0.736 |
1.031 |
1 |
|
9/16″ |
12 |
0.506 |
0.483 |
0.875 |
0.861 |
1.188 |
1.155 |
|
5/8″ |
11 |
0.569 |
0.575 |
0.938 |
0.922 |
1.281 |
1.248 |
|
3/4″ |
10 |
0.675 |
0.627 |
1.125 |
1.088 |
0.5 |
1.46 |
