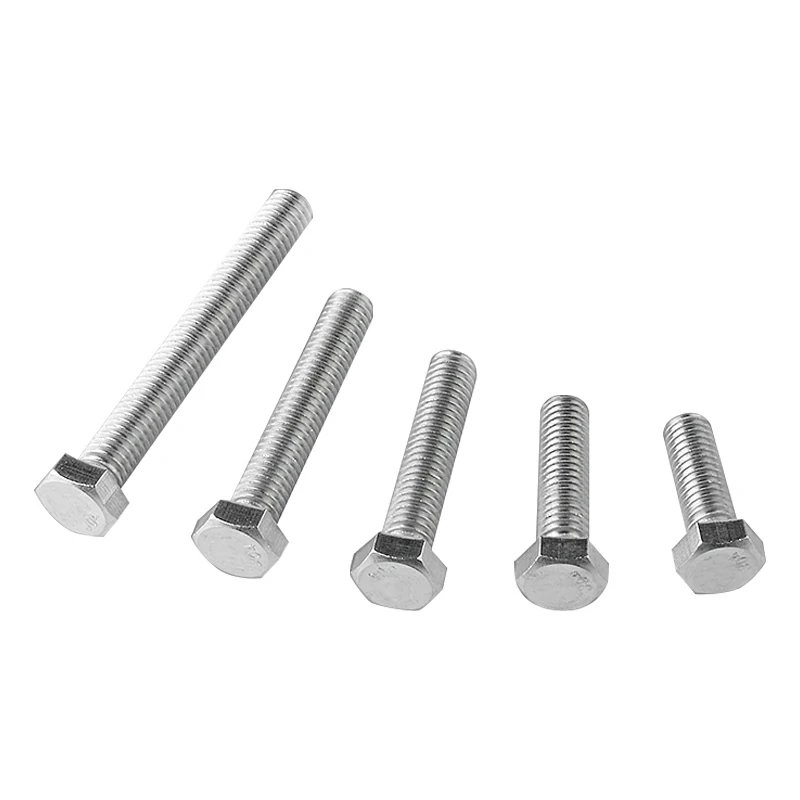

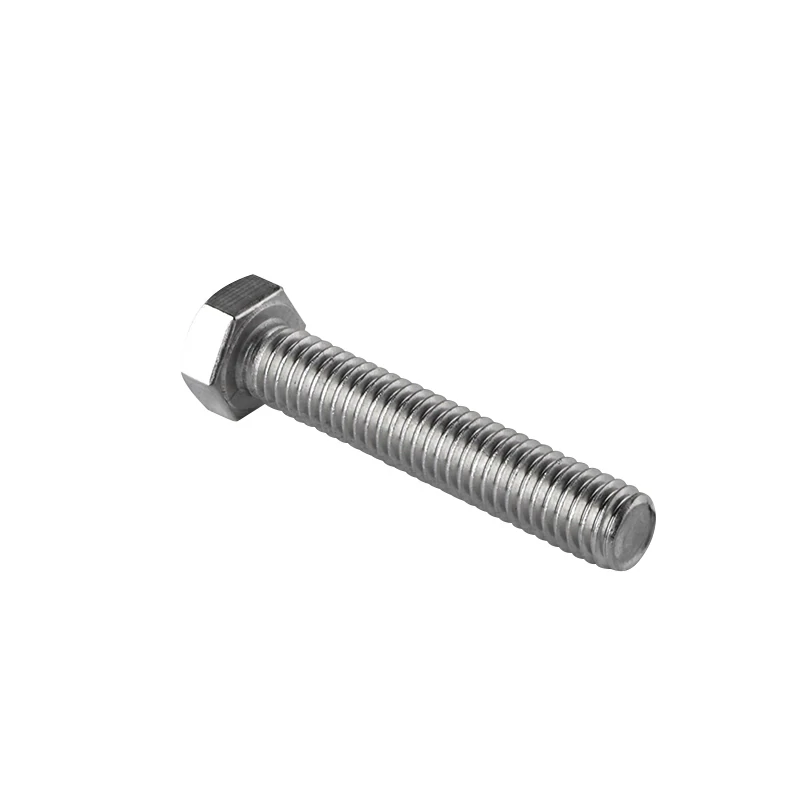

The 316 Stainless Steel American and British Standard External Fully Threaded Hex Head Bolt is a high-performance fastener designed for environments where corrosion resistance, strength, and durability are essential. This bolt meets both ANSI and BS standards, making it suitable for international use. The 316 stainless steel construction offers superior resistance to rust and degradation in extreme conditions, while the fully threaded hex head ensures easy application and strong, secure fastening across various industries, including marine, chemical, construction, and oil & gas.
Parameter Information
|
Brand name |
Hexagon shank bolt |
|
Standard |
Hexagon shank bolt |
|
Head shape |
Hexagon outside |
|
Wood quality |
316 Stainless steel |
|
Standard type |
American standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

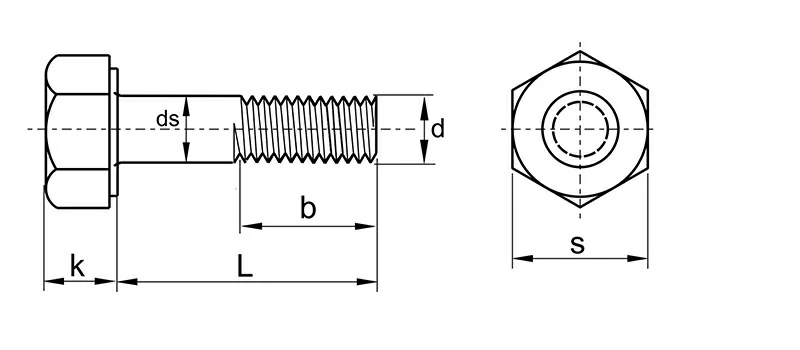

Specification
|
Nominal diameter -d |
ds |
S |
k |
b |
||||
|
max |
min |
max |
min |
max |
min |
L≤6 |
L＞6 |
|
|
1/4 |
0.2500 |
0.2450 |
0.438 |
0.428 |
0.163 |
0.150 |
0.750 |
1.000 |
|
5/16 |
0.3125 |
0.3065 |
0.500 |
0.489 |
0.211 |
0.195 |
0.875 |
1.125 |
|
3/8 |
0.3750 |
0.3690 |
0.562 |
0.551 |
0.243 |
0.226 |
1.000 |
1.250 |
|
7/16 |
0.4375 |
0.4305 |
0.625 |
0.612 |
0.291 |
0.272 |
1.125 |
1.375 |
|
1/2 |
0.5000 |
0.4930 |
0.750 |
0.736 |
0.323 |
0.302 |
1.250 |
1.500 |
|
9/16 |
0.5625 |
0.5545 |
0.812 |
0.798 |
0.371 |
0.348 |
1.375 |
1.625 |
|
5/8 |
0.6250 |
0.6170 |
0.938 |
0.922 |
0.403 |
0.378 |
1.500 |
1.750 |
|
3/4 |
0.7500 |
0.7410 |
1.125 |
1.100 |
0.483 |
0.455 |
1.750 |
2.000 |
|
7/8 |
0.8750 |
0.8660 |
1.312 |
1.285 |
0.563 |
0.531 |
2.000 |
2.250 |
|
1 |
1.0000 |
0.9900 |
1.500 |
1.469 |
0.627 |
0.591 |
2.250 |
2.500 |
|
1-1/8 |
1.1250 |
1.1140 |
1.688 |
1.631 |
0.718 |
0.658 |
2.500 |
2.750 |
|
1-1/4 |
1.2500 |
1.2390 |
1.875 |
1.812 |
0.813 |
0.749 |
2.750 |
3.000 |
|
1-3/8 |
1.3750 |
1.3630 |
2.062 |
1.994 |
0.878 |
0.810 |
3.000 |
3.250 |
|
1-1/2 |
1.5000 |
1.4880 |
2.250 |
2.175 |
0.974 |
0.902 |
3.250 |
3.500 |
|
1-3/4 |
1.7500 |
1.7380 |
2.625 |
2.538 |
1.134 |
1.054 |
3.750 |
4.000 |
|
2 |
2.0000 |
1.9880 |
3.000 |
2.900 |
1.263 |
1.175 |
4.250 |
4.500 |
|
2-1/4 |
2.2500 |
2.2380 |
3.375 |
3.262 |
1.423 |
1.327 |
4.750 |
5.000 |
|
2-1/2 |
2.5000 |
2.4880 |
3.750 |
3.625 |
1.583 |
1.479 |
5.250 |
5.500 |
|
2-3/4 |
2.7500 |
2.7380 |
4.125 |
3.988 |
1.744 |
1.632 |
5.750 |
6.000 |
|
3 |
3.0000 |
2.9880 |
4.500 |
4.350 |
1.935 |
1.815 |
6.250 |
6.500 |
