Parameter Information
|
Brand name |

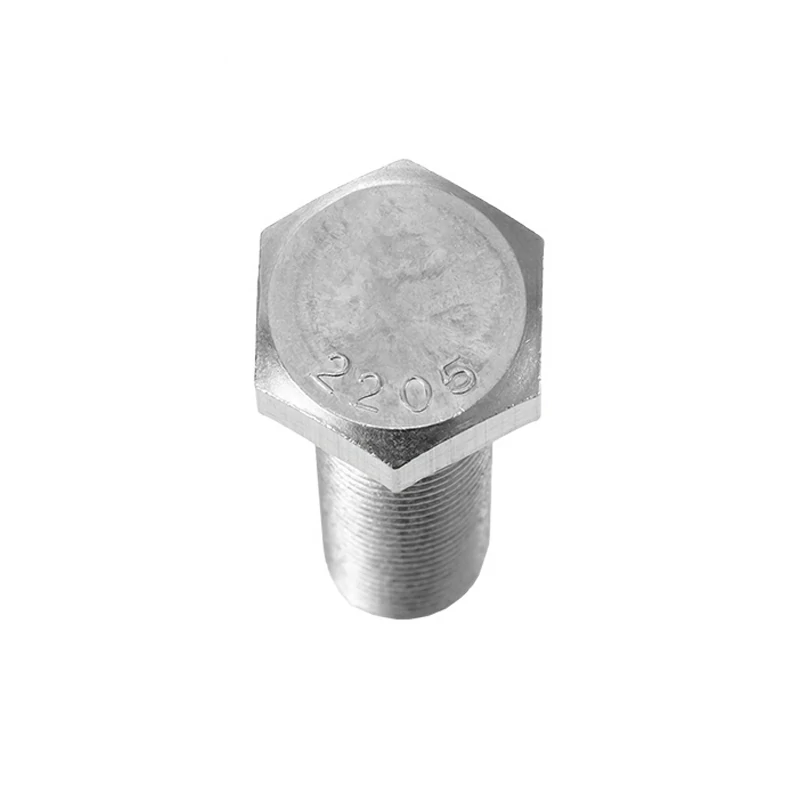

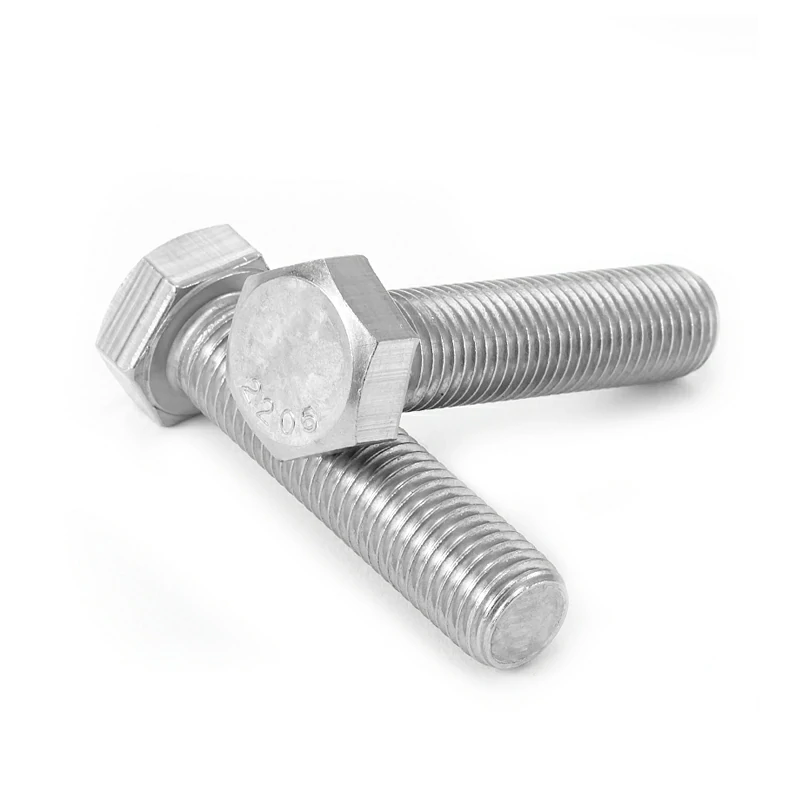

Outer hexagon full tooth bolt |
|
Standard |
DIN933 |
|
Wood quality |
2205 stainless steel |
|
Head shape |
Outer hexagon |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

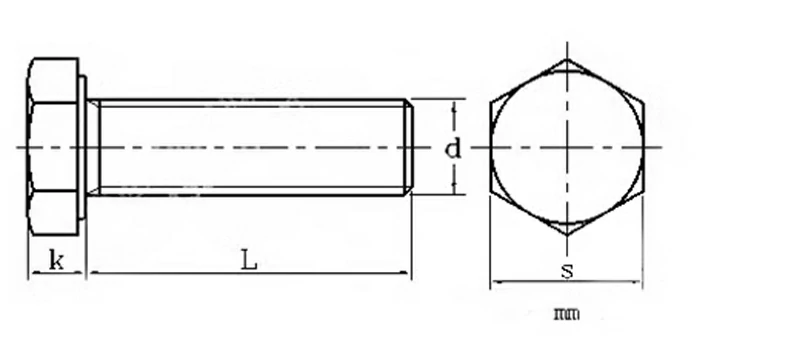

Specification
|
Specification (d) |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
|
Pitch |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
|
Opposite side (s) |
7 |
8 |
10 |
13 |
17 |
19 |
22 |
24 |
|
Head thickness (k) |
2.8 |
3.4 |
4.1 |
5.3 |
6.8 |
7.5 |
9 |
10 |
|
Specification (d) |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
|
Pitch |
2.5 |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
|
Opposite side (s) |
27 |
30 |
32 |
36 |
41 |
46 |
50 |
55 |
|
Head thickness (k) |
12 |
12.5 |
14 |
15 |
17 |
19 |
21 |
23 |
