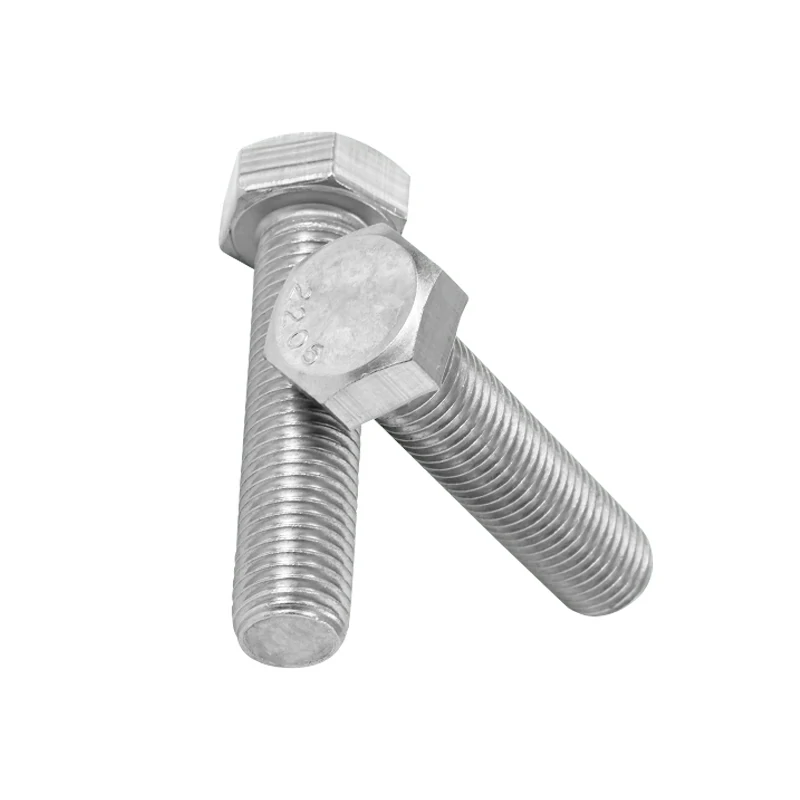

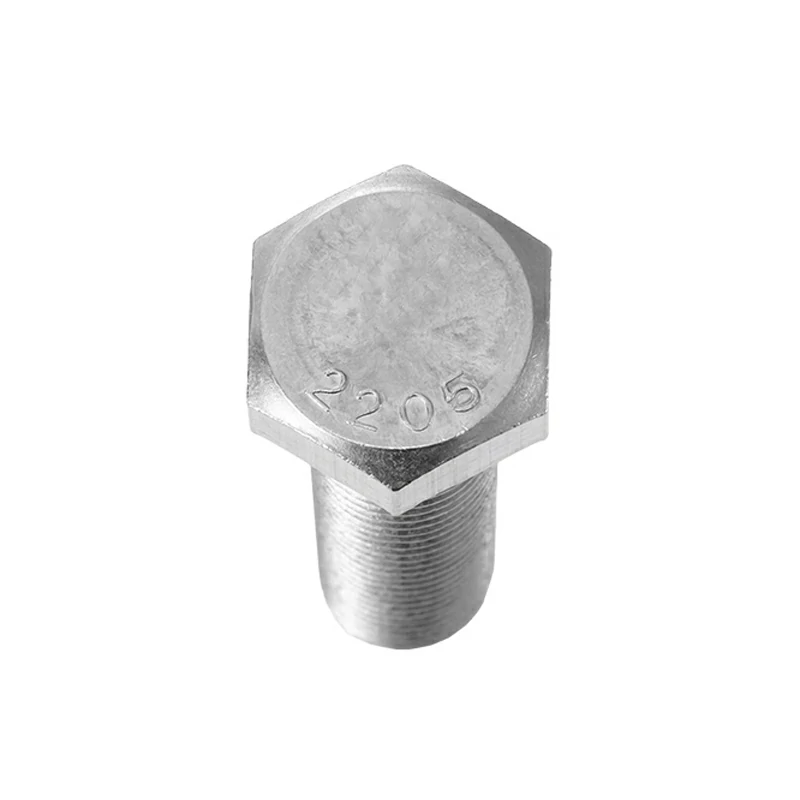

The 2205/310S Stainless Steel Full Thread GB Hex Bolt is a versatile fastener engineered for demanding conditions, offering either superior corrosion resistance and strength, made of Duplex Stainless Steel 2205 or Austenitic Stainless Steel 310S materials, with the reliability of a full-threaded, hexagonal design manufactured to german standard GB5783 quality specifications. These GB Hex Bolts are commonly used in industrial, marine, chemical, and high-temperature applications due to its strength, durability, and resistance to various environmental conditions.
Parameter Information
|
Brand name |
Hexagon shank bolt |
|
Standard |
GB5783 |
|
Type |
Hexagon outside |
|
Wood quality |
2205 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

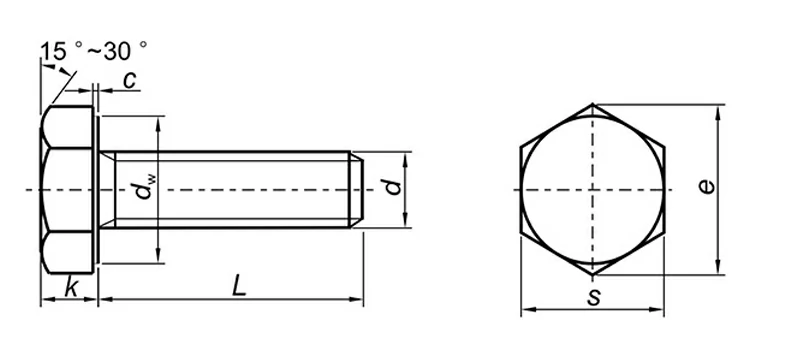

Specification
|
d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
||
|
e |
min |
Grade A |
6.01 |
7.66 |
8.79 |
11.05 |
14.38 |
17.77 |
20.03 |
23.36 |
26.75 |
|
Grade B |
5.88 |
7.5 |
8.63 |
10.89 |
14.2 |
17.59 |
19.85 |
22.78 |
26.17 |
||
|
k |
Nominal name |
2 |
2.8 |
3.5 |
4 |
5.3 |
6.4 |
7.5 |
8.8 |
10 |
|
|
Grade A |
min |
1.875 |
2.675 |
3.35 |
3.85 |
5.15 |
6.22 |
7.32 |
8.62 |
9.82 |
|
|
max |
2.125 |
2.925 |
3.65 |
4.15 |
5.45 |
6.58 |
7.68 |
8.98 |
10.18 |
||
|
Grade B |
min |
1.8 |
2.6 |
3.26 |
3.76 |
5.06 |
6.11 |
7.21 |
8.51 |
9.71 |
|
|
max |
2.2 |
3 |
3.74 |
4.24 |
5.54 |
6.69 |
7.79 |
9.09 |
10.29 |
||
|
s |
Grade A |
min |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
|
max |
5.32 |
6.78 |
7.78 |
9.78 |
12.73 |
15.73 |
17.73 |
20.67 |
23.67 |
||
|
Grade B |
min |
5.2 |
6.64 |
7.64 |
9.64 |
12.57 |
15.57 |
17.57 |
20.16 |
23.16 |
|
|
max |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
||
