Parameter Information
|
Brand name |
Hexagon flat end setting screw |
|
Head shape |
Hex socket |
|
standard |
DIN913 |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

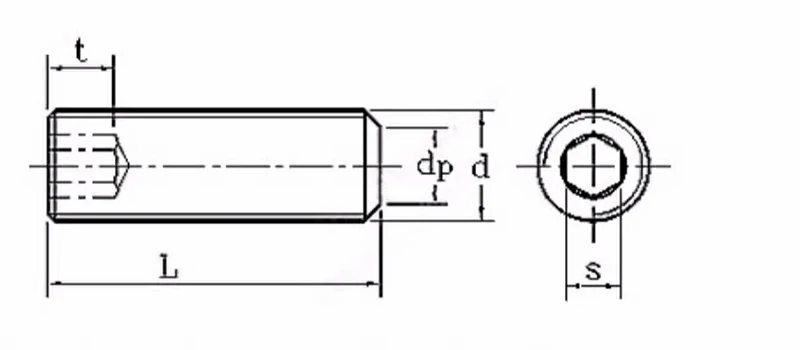

Specification
|
Nominal diameter -d |
M1.6 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
|
|
Pitch -p |
0.35 |
0.4 |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
1.2 |
2.5 |
3 |
|
|
dp |
max |
0.80 |
1.00 |
1.50 |
2.00 |
2.50 |
3.5 |
4.0 |
5.5 |
7.00 |
8.50 |
12.00 |
15.00 |
18.00 |
|
min |
0.55 |
0.75 |
1.25 |
1.75 |
2.25 |
3.2 |
3.7 |
5.2 |
6.64 |
8.14 |
11.57 |
14.57 |
17.57 |
|
|
s |
nominal |
0.7 |
0.9 |
1.3 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
max |
0.724 |
0.902 |
1.295 |
1.545 |
2.045 |
2.560 |
3.071 |
4.084 |
5.084 |
6.095 |
8.115 |
10.115 |
12.142 |
|
|
min |
0.711 |
0.889 |
1.270 |
1.520 |
2.020 |
2.520 |
3.020 |
4.020 |
5.020 |
6.020 |
8.025 |
10.025 |
12.032 |
|
|
t |
min |
0.7 |
0.8 |
1.2 |
1.2 |
1.5 |
2 |
2 |
3 |
4 |
4.8 |
6.4 |
8 |
10 |
