Parameter Information
|
Brand name |

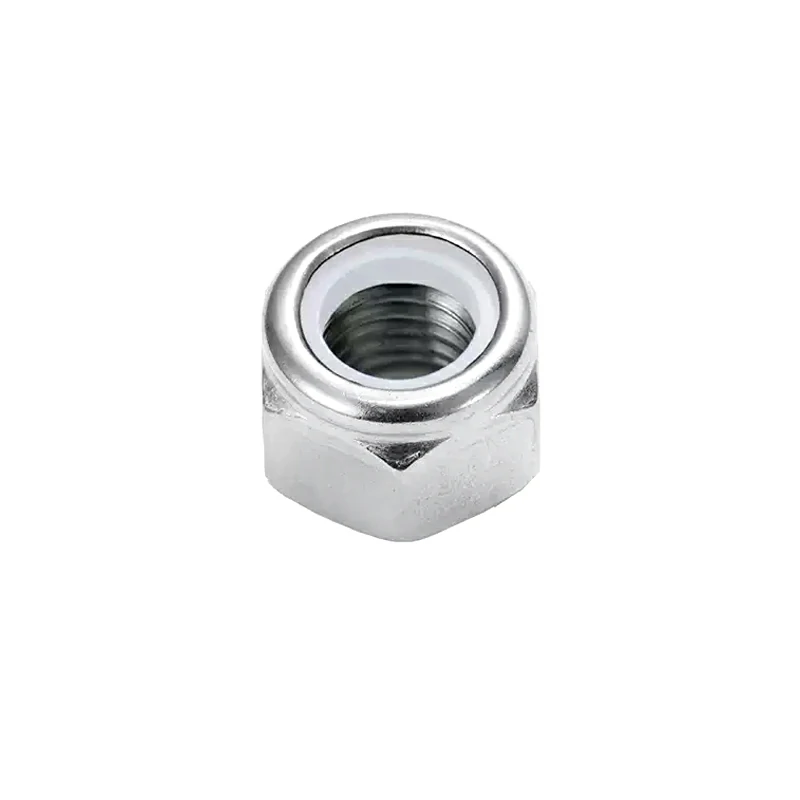

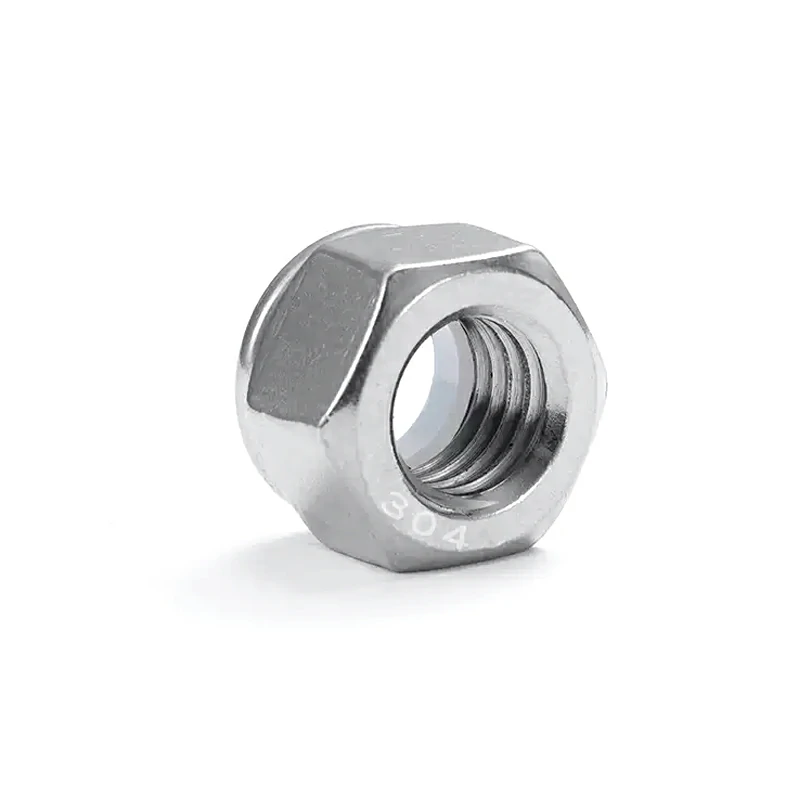

American-made hexagonal nylon lock nuts |
|
Standard |
ANSI B18.16.6 |
|
Type |
Lock nut |
|
Wood quality |
304/316 stainless steel |
|
Mode of action |
Lock tightly |
|
Standard type |
American standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

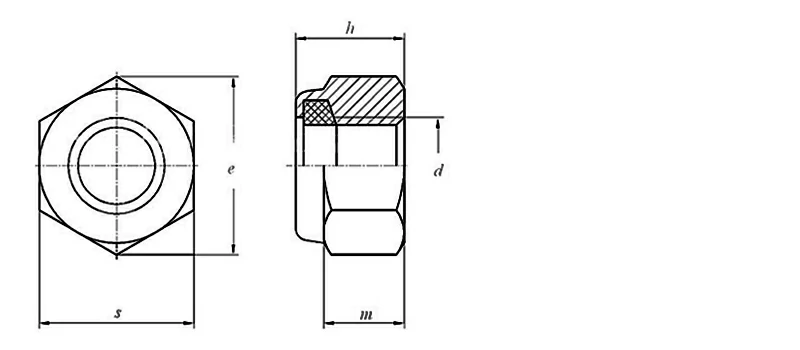

Specification
|
Nominal diameter-d |
2# |
4# |
6# |
8# |
10# |
12# |
|
|
d |
Nominal diameter |
0.056 |
0.112 |
0.138 |
0.164 |
0.19 |
0.216 |
|
PP |
Coarse teeth/UNC |
56 |
40 |
32 |
32 |
24 |
24 |
|
Fine teeth/UNC |
64 |
48 |
40 |
36 |
32 |
28 |
|
|
s |
max |
0.251 |
0.251 |
0.313 |
0.345 |
0.376 |
0.439 |
|
min |
0.243 |
0.243 |
0.305 |
0.336 |
0.367 |
0.43 |
|
|
e |
min |
0.268 |
0.268 |
0.339 |
0.374 |
0.41 |
0.482 |
|
h |
max |
0.153 |
0.153 |
0.188 |
0.239 |
0.249 |
0.328 |
|
min |
0.133 |
0.133 |
0.168 |
0.219 |
0.229 |
0.298 |
|
|
m |
min |
0.081 |
0.081 |
0.103 |
0.14 |
0.14 |
0.225 |
|
Nominal diameter-d |
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
9/16″ |
5/8″ |
|
|
d |
0.25 |
0.3125 |
0.375 |
0.4375 |
0.5 |
0.5625 |
0.625 |
|
|
PP |
UNC |
20 |
18 |
16 |
14 |
13 |
12 |
11 |
|
s |
max |
0.439 |
0.502 |
0.564 |
0.627 |
0.752 |
0.877 |
0.94 |
|
min |
0.43 |
0.489 |
0.551 |
0.616 |
0.736 |
0.861 |
0.922 |
|
|
e |
min |
0.482 |
0.552 |
0.622 |
0.698 |
0.837 |
0.978 |
1.051 |
|
h |
max |
0.328 |
0.359 |
0.468 |
0.468 |
0.609 |
0.656 |
0.765 |
|
min |
0.298 |
0.329 |
0.438 |
0.438 |
0.579 |
0.626 |
0.735 |
|
|
m |
min |
0.225 |
0.25 |
0.335 |
0.324 |
0.464 |
0.469 |
0.593 |
|
Nominal diameter-d |
3/4″ |
7/8″ |
1″ |
1-1/8″ |
1-1/4″ |
1-3/8″ |
1-1/2″ |
|
|
d |
0.75 |
0.875 |
1 |
1.125 |
1.25 |
1.375 |
1.5 |
|
|
PP |
UNC |
10 |
9 |
8 |
7 |
7 |
6 |
6 |
|
s |
max |
1.064 |
1.252 |
1.44 |
1.627 |
1.815 |
2.008 |
2.197 |
|
min |
1.052 |
1.239 |
1.427 |
1.614 |
1.801 |
1.973 |
2.159 |
|
|
e |
min |
1.191 |
1.403 |
1.615 |
1.826 |
2.038 |
2.232 |
2.444 |
|
h |
max |
0.89 |
0.999 |
1.078 |
1.203 |
1.422 |
1.609 |
1.64 |
|
min |
0.86 |
0.969 |
1.016 |
1.141 |
1.36 |
1.547 |
1578 |
|
|
m |
min |
0.742 |
0.79 |
0.825 |
0.93 |
1.125 |
1.282 |
1.313 |
