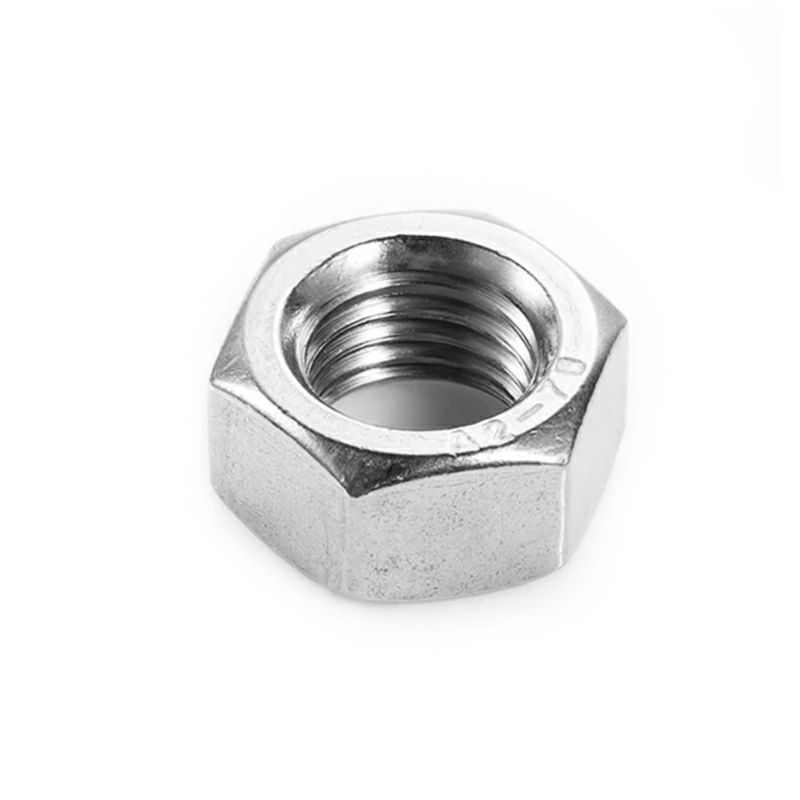

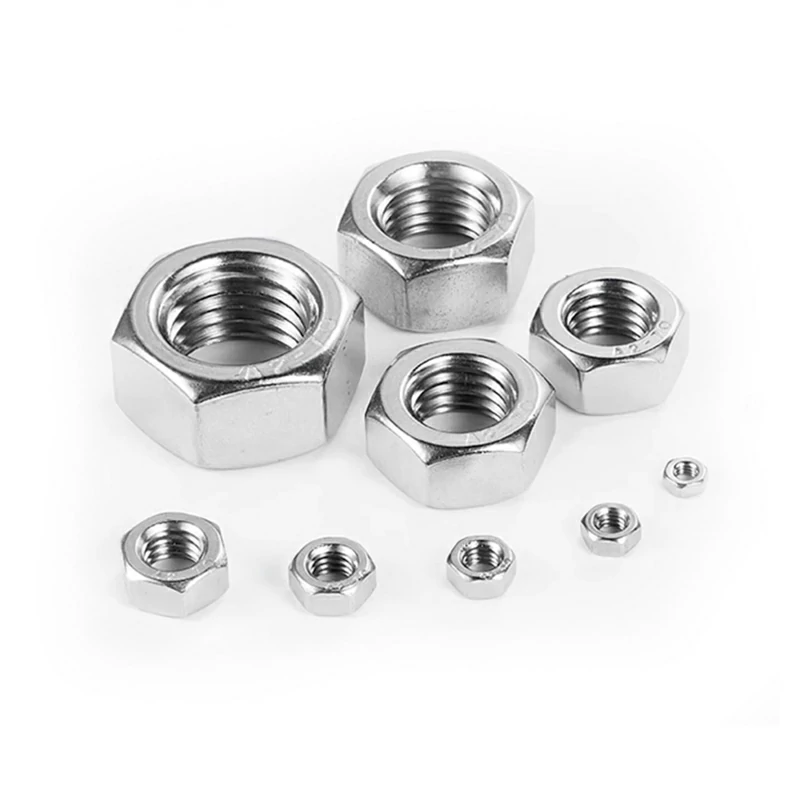

DIN934 304 Stainless Steel Hexagon Nut Fine Pitch Screw Fine Thread Nut is a high-quality, corrosion-resistant, full-height hex nut with precise metric fine threads. It is a DIN934 standard six-sided nut made from 304-grade stainless steel. This 304 Stainless Steel Hexagon Nut is commonly used in machinery, automotive, and other industrial applications where a strong, vibration-resistant, and adjustable fastening solution is required, particularly in environments where rust resistance is important, such as machinery, automotive, aerospace, construction, and marine applications.
Parameter Information
|
Brand name |
Hexagon nut. - Fine teeth |
|
Standard |
DIN934 |
|
Type |
Hexagon nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

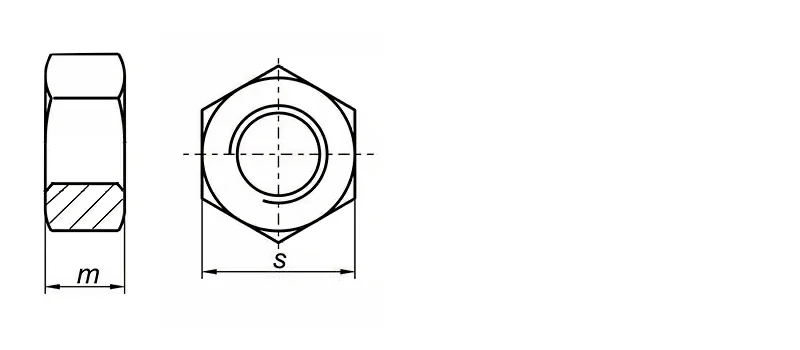

Specification
|
Specification-d |
M2 |
M2.2 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
|
Thickness-m |
1.6 |
2 |
2.4 |
3.2 |
4 |
5 |
6.5 |
8 |
10 |
11 |
13 |
15 |
16 |
18 |
|
Hexagon to side-s |
4 |
5 |
5.5 |
7 |
8 |
10 |
13 |
17 |
19 |
22 |
24 |
20 |
30 |
32 |
