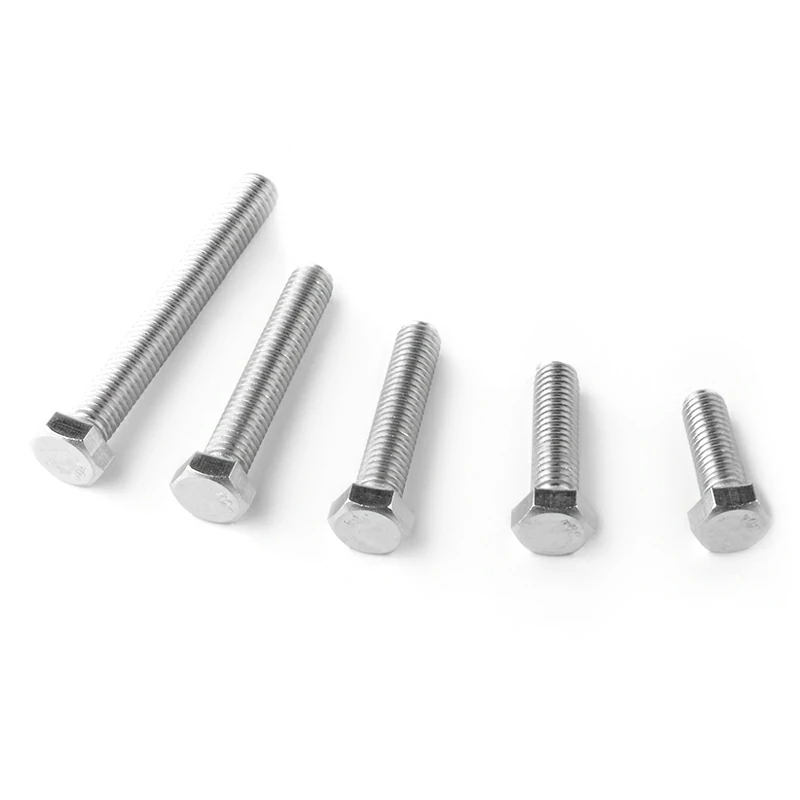

Parameter Information
|
Brand name |

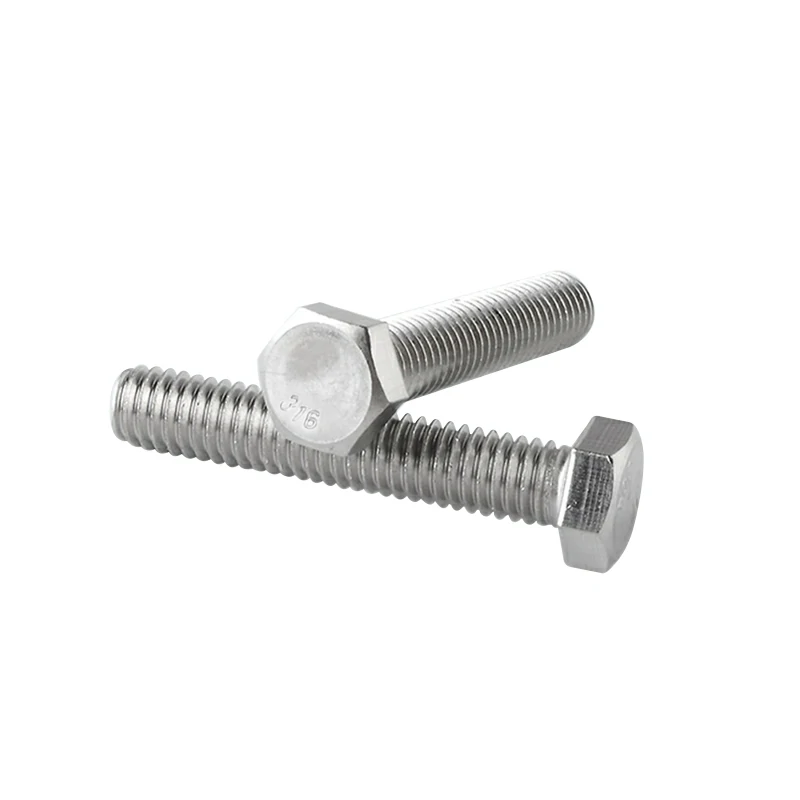

Outer hexagon full tooth bolt |
|
Standard |
ANSI B18.2.1 |
|
Wood quality |
316L stainless steel |
|
Head shape |
Outer hexagon |
|
Standard type |
American standard |
|
Surface treatment |
Stainless washing |
|
Packaging |
Packaging bag + carton packaging |

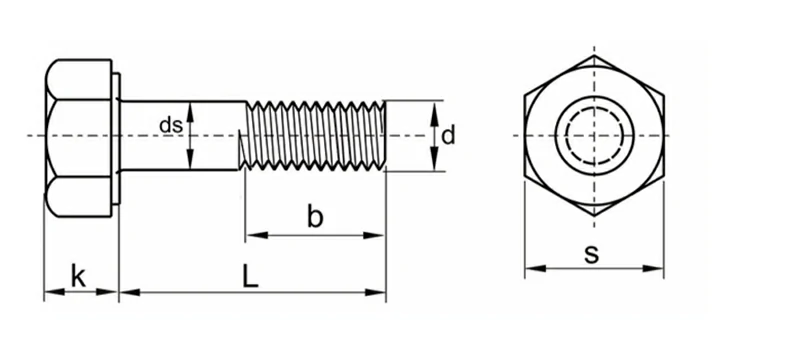

Specification
|
Nominal diameter -d |
ds |
S |
k |
b |
||||
|
max |
min |
max |
min |
max |
min |
L≤6 |
L＞6 |
|
|
1/4 |
0.2500 |
0.2450 |
0.438 |
0.428 |
0.163 |
0.150 |
0.750 |
1.000 |
|
5/16 |
0.3125 |
0.3065 |
0.500 |
0.489 |
0.211 |
0.195 |
0.875 |
1.125 |
|
3/8 |
0.3750 |
0.3690 |
0.562 |
0.551 |
0.243 |
0.226 |
1.000 |
1.250 |
|
7/16 |
0.4375 |
0.4305 |
0.625 |
0.612 |
0.291 |
0.272 |
1.125 |
1.375 |
|
1/2 |
0.5000 |
0.4930 |
0.750 |
0.736 |
0.323 |
0.302 |
1.250 |
1.500 |
|
9/16 |
0.5625 |
0.5545 |
0.812 |
0.798 |
0.371 |
0.348 |
1.375 |
1.625 |
|
5/8 |
0.6250 |
0.6170 |
0.938 |
0.922 |
0.403 |
0.378 |
1.500 |
1.750 |
|
3/4 |
0.7500 |
0.7410 |
1.125 |
1.100 |
0.483 |
0.455 |
1.750 |
2.000 |
|
7/8 |
0.8750 |
0.8660 |
1.312 |
1.285 |
0.563 |
0.531 |
2.000 |
2.250 |
|
1 |
1.0000 |
0.9900 |
1.500 |
1.469 |
0.627 |
0.591 |
2.250 |
2.500 |
|
1-1/8 |
1.1250 |
1.1140 |
1.688 |
1.631 |
0.718 |
0.658 |
2.500 |
2.750 |
|
1-1/4 |
1.2500 |
1.2390 |
1.875 |
1.812 |
0.813 |
0.749 |
2.750 |
3.000 |
|
1-3/8 |
1.3750 |
1.3630 |
2.062 |
1.994 |
0.878 |
0.810 |
3.000 |
3.250 |
|
1-1/2 |
1.5000 |
1.4880 |
2.250 |
2.175 |
0.974 |
0.902 |
3.250 |
3.500 |
|
1-3/4 |
1.7500 |
1.7380 |
2.625 |
2.538 |
1. 134 |
1.054 |
3.750 |
4.000 |
|
2 |
2.0000 |
1.9880 |
3.000 |
2.900 |
1.263 |
1.175 |
4.250 |
4.500 |
|
2-1/4 |
2.2500 |
2.2380 |
3.375 |
3.262 |
1.423 |
1.327 |
4.750 |
5.000 |
|
2-1/2 |
2.5000 |
2.4880 |
3.750 |
3.625 |
1.583 |
1.479 |
5.250 |
5.500 |
|
2-3/4 |
2.7500 |
2.7380 |
4.125 |
3.988 |
1.744 |
1.632 |
5.750 |
6.000 |
|
3 |
3.0000 |
2.9880 |
4.500 |
4.350 |
1.935 |
1.815 |
6.250 |
6.500 |
