Parameter Information
|
Brand name |
Spring washer |
|
Standard |
JISB 1251 |
|
Category |
Elastic pad |
|
Material |
304/316 stainless steel |
|
Standard type |
Japanese standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

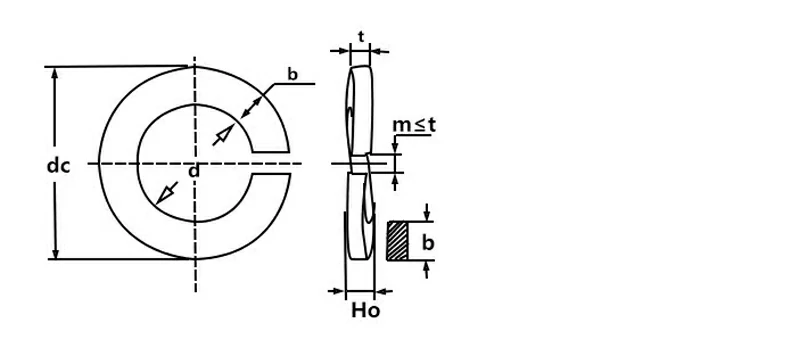

Specification
|
Nominal diameter |
d |
b |
t |
dc |
ho |
|||||
|
min= nominal |
max |
nominal |
max |
min |
nominal |
max |
min |
max |
(≈1.5t) |
|
|
Φ2.5 |
2.6 |
2.9 |
1 |
1.1 |
0.9 |
0.6 |
0.7 |
0.5 |
5.2 |
0.9 |
|
Φ3 |
3.1 |
3.4 |
1.3 |
1.4 |
1.2 |
0.7 |
0.8 |
0.6 |
6.3 |
1.05 |
|
Φ3.5 |
3.6 |
3.9 |
1.3 |
1.4 |
1.2 |
0.7 |
0.8 |
0.6 |
6.8 |
1.05 |
|
Φ4 |
4.1 |
4.4 |
1.5 |
1.6 |
1.4 |
0.8 |
0.9 |
0.7 |
1.7 |
1.2 |
|
Φ5 |
5.1 |
5.4 |
1.8 |
1.9 |
1.7 |
1 |
1.1 |
0.9 |
9.4 |
1.5 |
|
Φ6 |
6.1 |
6.5 |
2.5 |
2.65 |
2.35 |
1.2 |
1.3 |
1.1 |
11.9 |
1.8 |
|
Φ8 |
8.2 |
8.6 |
3 |
3.15 |
2.85 |
1.6 |
1.7 |
1.5 |
15 |
2.4 |
|
Φ10 |
10.2 |
10.8 |
3.5 |
3.7 |
3.3 |
1.8 |
1.95 |
1.65 |
18.4 |
2.7 |
|
Φ12 |
12.2 |
13 |
4 |
4.2 |
3.8 |
2.1 |
2.25 |
1.95 |
21.6 |
3.15 |
|
Φ14 |
14.2 |
15 |
4.5 |
4.7 |
4.3 |
2.4 |
2.55 |
2.25 |
24.6 |
3.6 |
|
Φ16 |
16.2 |
17.2 |
5 |
5.2 |
4.8 |
2.8 |
3 |
2.6 |
27.8 |
4.2 |
|
Φ18 |
18.2 |
19.2 |
5.5 |
5.7 |
5.3 |
3 |
3.2 |
2.8 |
30.6 |
4.5 |
|
Φ20 |
20.2 |
21.4 |
6 |
6.2 |
5.8 |
3.2 |
3.4 |
3 |
33.8 |
4.8 |
|
Φ22 |
22.5 |
23.7 |
6.5 |
6.7 |
6.3 |
3.5 |
3.7 |
3.3 |
37.1 |
5.3 |
|
Φ24 |
24.5 |
25.7 |
7 |
7.25 |
6.75 |
3.8 |
4.05 |
3.55 |
40.2 |
5.7 |
|
Φ27 |
27.5 |
28.7 |
7 |
7.25 |
6.75 |
4 |
4.25 |
3.75 |
43 |
6 |
