Parameter Information
|
Brand name |

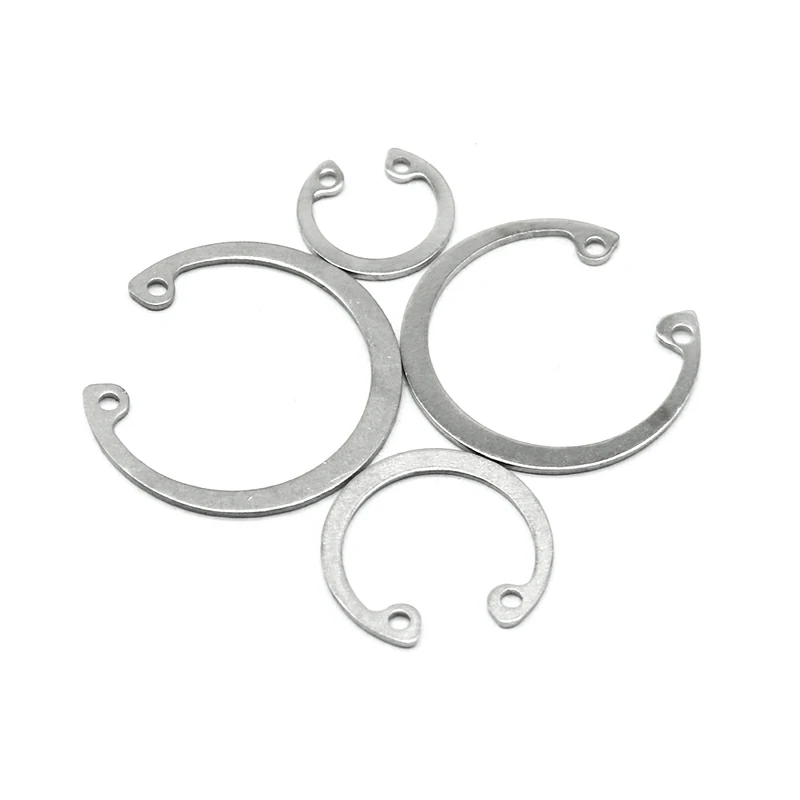

Elastic retainer for hole |
|
Standard |
GB893.1 |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

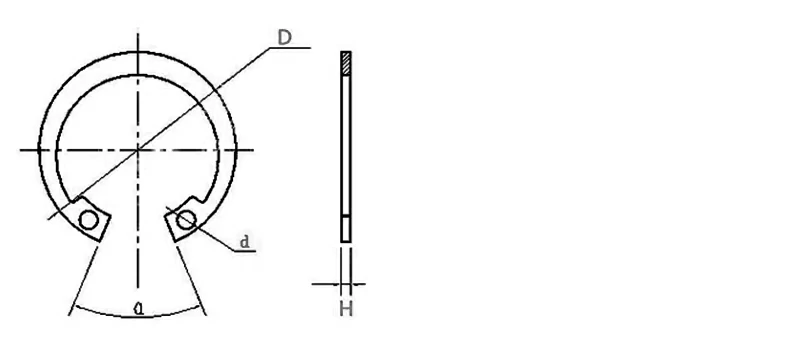

Specification
|
Specification -Φ |
Outside diameter -D |
Thickness -H |
Inner hole -d |
angle-a |
|
Φ8 |
8.64 |
0.56 |
1 |
45° |
|
Φ9 |
9.8 |
0.58 |
||
|
Φ10 |
11 |
0.74 |
1.5 |
|
|
Φ11 |
12 |
0.8 |
||
|
Φ12 |
13 |
0.9 |
||
|
Φ13 |
14.2 |
0.94 |
1.7 |
|
|
Φ14 |
15 |
1 |
||
|
Φ15 |
16.1 |
1 |
||
|
Φ16 |
17.4 |
1 |
||
|
Φ17 |
18.4 |
1 |
||
|
Φ18 |
19.4 |
1 |
||
|
Φ19 |
20.6 |
1 |
2 |
|
|
Φ20 |
21.36 |
1 |
||
|
Φ22 |
23.5 |
1 |
||
|
Φ24 |
25.9 |
1.2 |
||
|
Φ25 |
26.7 |
1.2 |
||
|
Φ26 |
27.64 |
1.2 |
||
|
Φ28 |
30.2 |
1.2 |
||
|
Φ30 |
32. 7 |
1.2 |
||
|
Φ32 |
34.3 |
1.2 |
2.5 |
|
|
Φ34 |
36.45 |
1.5 |
||
|
Φ35 |
37.35 |
1.5 |
||
|
Φ36 |
38.9 |
1.5 |
||
|
Φ37 |
39.8 |
1.5 |
||
|
Φ38 |
41.65 |
1.5 |
||
|
Φ39 |
42.6 |
1.5 |
||
|
Φ40 |
43.8 |
1.5 |
||
|
Φ42 |
45.6 |
1.5 |
3 |
|
|
Φ45 |
48.9 |
1.5 |
||
|
Φ47 |
51.5 |
1.5 |
||
|
Φ48 |
51.8 |
1.5 |
||
|
Φ50 |
53.6 |
2 |
||
|
Φ52 |
55.9 |
2 |
||
|
Φ55 |
59.1 |
2 |
||
|
Φ58 |
62.3 |
2 |
36° |
|
|
Φ60 |
64.5 |
2 |
||
|
Φ62 |
65.9 |
2 |
||
|
Φ65 |
69.3 |
2.5 |
||
|
Φ68 |
72.4 |
2.5 |
