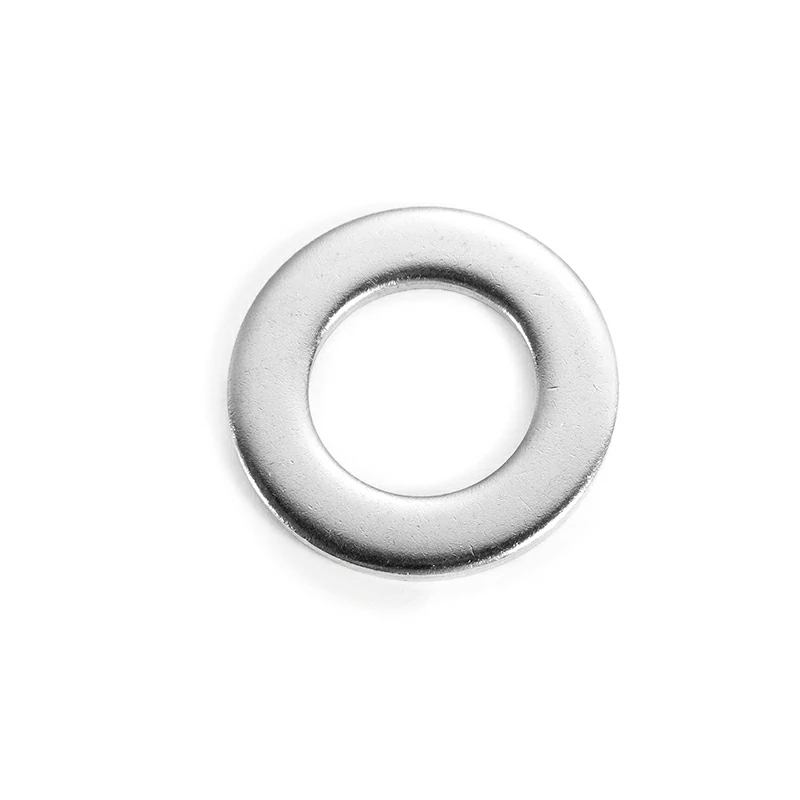

Parameter Information
|
Brand name |
Plain washer |
|
Standard |
DIN125 |
|
Category |
Flat gasket |
|
Wood quality |
304 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

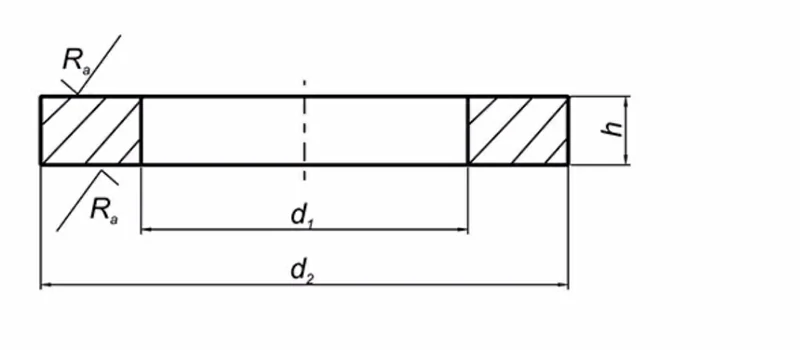

Specification
|
Specification (large diameter of thread) |
1.6 |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
|
|
d2 |
min |
1.7 |
2.2 |
2.7 |
3.2 |
4.3 |
5.3 |
6.4 |
8.4 |
|
max |
1.84 |
2.34 |
2.84 |
3.38 |
4.48 |
5.48 |
6.62 |
8.62 |
|
|
d2 |
max |
4 |
5 |
6 |
7 |
9 |
10 |
12 |
16 |
|
min |
3.7 |
4.7 |
5.7 |
6.64 |
8.64 |
9.64 |
11.57 |
15.57 |
|
|
h |
max |
0.35 |
0.35 |
0.55 |
0.55 |
0.9 |
1.1 |
1.8 |
1.8 |
|
min |
0.25 |
0.25 |
0.45 |
0.45 |
0.7 |
0.9 |
1.4 |
1.4 |
|
|
The weight of every 1000 steel products is ≈kg |
0.024 |
0.037 |
0.088 |
0.119 |
0.308 |
0.443 |
1.02 |
1.83 |
|
