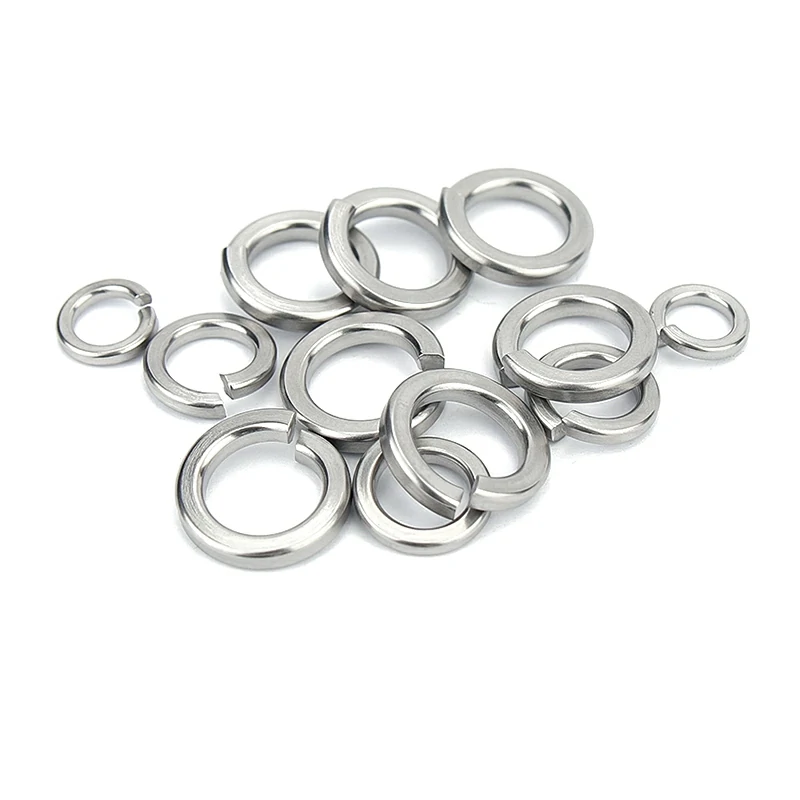

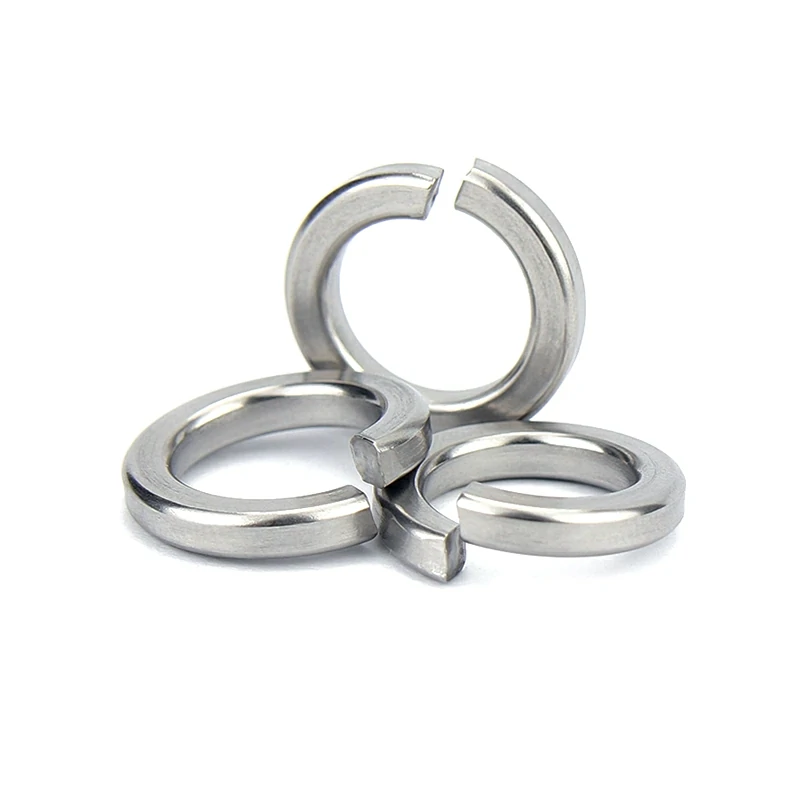

Parameter Information
|
Brand name |
Spring washer |
|
Standard |
DIN127 |
|
Category |
Spring washer |
|
Material |
304/316 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

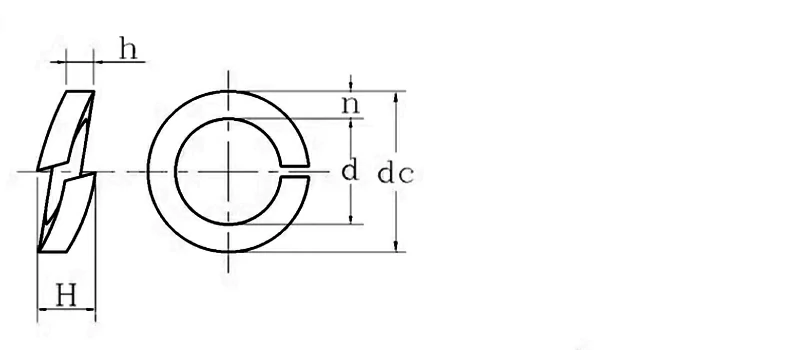

Specification
|
Thread specification |
d |
n |
h |
H |
Kilo weight (steel) ≈kg |
||||||
|
d |
min |
max |
nominal |
max |
min |
nominal |
max |
min |
min |
max |
|
|
Φ3 |
3.1 |
3.4 |
1.3 |
1.4 |
1.2 |
0.8 |
0.9 |
0.7 |
1.6 |
1.9 |
0.11 |
|
Φ4 |
4.1 |
4.4 |
1.5 |
1.6 |
1.4 |
0.9 |
1 |
0.8 |
1.8 |
2.1 |
0.18 |
|
Φ5 |
5.1 |
5.4 |
1.8 |
1.9 |
1.7 |
1.2 |
1.3 |
1.1 |
2.4 |
2.8 |
0.36 |
|
Φ6 |
6.1 |
6.5 |
2.5 |
2.65 |
2.35 |
1.6 |
1.7 |
1.5 |
3.2 |
3.8 |
0.83 |
|
Φ8 |
8.1 |
8.5 |
3 |
3.15 |
2.85 |
2 |
2.1 |
1.9 |
4 |
4.7 |
1.6 |
|
Φ10 |
10.2 |
10.7 |
3.5 |
3.7 |
3.3 |
2.2 |
2.35 |
2.05 |
4.4 |
5.2 |
2.53 |
|
Φ12 |
12.2 |
12.7 |
4 |
4.2 |
3.8 |
2.5 |
2.65 |
2.35 |
5 |
5.9 |
3.82 |
|
Φ14 |
14.2 |
14.7 |
4.5 |
4.7 |
4.3 |
3 |
3.15 |
2.85 |
6 |
7.1 |
6.01 |
|
Φ16 |
16.2 |
17 |
5 |
5.2 |
4.8 |
3.5 |
3.7 |
3.3 |
7 |
8.3 |
8.91 |
|
Φ18 |
18.2 |
19 |
5 |
5.2 |
4.8 |
3.5 |
3.7 |
3.3 |
7 |
8.3 |
9.73 |
|
Φ20 |
20.2 |
21.2 |
6 |
6.2 |
5.8 |
4 |
4.2 |
3.8 |
8 |
9.4 |
15.2 |
|
Φ22 |
22.5 |
23.5 |
6 |
6.2 |
5.8 |
4 |
4.2 |
3.8 |
8 |
9.4 |
16.5 |
|
Φ24 |
24.5 |
25.5 |
7 |
7.25 |
6.75 |
5 |
5.2 |
4.8 |
10 |
11.8 |
26.2 |
|
Φ27 |
27.5 |
28.5 |
7 |
7.25 |
6.75 |
5 |
5.2 |
4.8 |
10 |
11.8 |
28.7 |
|
Φ30 |
30.5 |
31.7 |
8 |
8.25 |
7.75 |
6 |
6.2 |
5.8 |
12 |
14.2 |
44.3 |
|
Φ36 |
36.5 |
37.7 |
10 |
10.25 |
9.75 |
6 |
6.2 |
5.8 |
12 |
14.2 |
67.3 |
|
Φ39 |
39.5 |
40.7 |
10 |
10.25 |
9.75 |
6 |
6.2 |
5.8 |
12 |
14.2 |
71.7 |
|
Φ42 |
42.5 |
43.7 |
12 |
12.25 |
11.75 |
7 |
7.25 |
6.75 |
14 |
16.5 |
111 |
