Parameter Information
|
Brand name |
American-made flat gasket |
|
Standard |
ANSI B18.22.1 |
|
Category |
Flat gasket |
|
Wood quality |
304/316 stainless steel |
|
Standard type |
American standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

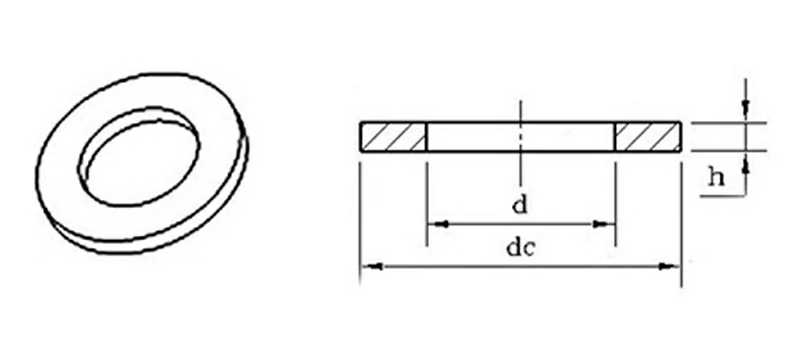

Specification
|
Specification |
6# |
8# |
10# |
12# |
1/4 |
5/6 |
3/8 |
7/16 |
1/2 |
|
|
dc |
max |
9.91 |
11.51 |
13.08 |
14.66 |
16.26 |
17.36 |
21 |
23.8 |
27.74 |
|
min |
9.4 |
11 |
12.57 |
14.15 |
15.75 |
17.3 |
20.45 |
23.24 |
26.8 |
|
|
d |
max |
4.17 |
4.98 |
5.77 |
6.73 |
7.52 |
9.12 |
10.59 |
12.29 |
13.87 |
|
min |
3.84 |
4.65 |
5.44 |
6.22 |
7.01 |
8.61 |
10.19 |
11.79 |
13.36 |
|
|
h |
max |
1.65 |
1.65 |
1.65 |
2.03 |
2.03 |
2.03 |
2.03 |
2.03 |
3.07 |
|
min |
0.91 |
0.91 |
0.91 |
1.3 |
1.3 |
1.3 |
1.3 |
1.3 |
1.88 |
|
|
A thousand pieces weigh in kilograms |
0.66 |
0.85 |
1.09 |
1.74 |
2.13 |
2.24 |
3.37 |
4.26 |
8.8 |
|
|
Specification |
9/16 |
5/8 |
3/4 |
7/8 |
1 |
1-1/8 |
1-1/4 |
1-3/8 |
1-1/2 |
|
|
dc |
max |
30.12 |
34.09 |
38.07 |
45.21 |
51.56 |
57.91 |
64.26 |
70.61 |
76.96 |
|
min |
29.18 |
33.15 |
37.13 |
44.27 |
50.62 |
56.97 |
63.32 |
69.67 |
76.02 |
|
|
d |
max |
15.47 |
17.42 |
21.39 |
24.58 |
27.74 |
32.51 |
35.69 |
38.86 |
42.04 |
|
min |
14.96 |
16.48 |
20.45 |
23.65 |
26.8 |
31.57 |
34.75 |
37.92 |
41.1 |
|
|
h |
max |
3.07 |
3.07 |
4.06 |
4.06 |
4.06 |
4.06 |
4.88 |
4.88 |
4.88 |
|
min |
1.88 |
1.88 |
2.74 |
2.74 |
2.74 |
2.74 |
3.45 |
3.45 |
3.45 |
|
|
A thousand pieces weigh in kilograms |
10.19 |
13.1 |
20.78 |
30.17 |
39.58 |
48.12 |
73.29 |
89.21 |
106.65 |
|
