Parameter Information
|
Brand name |

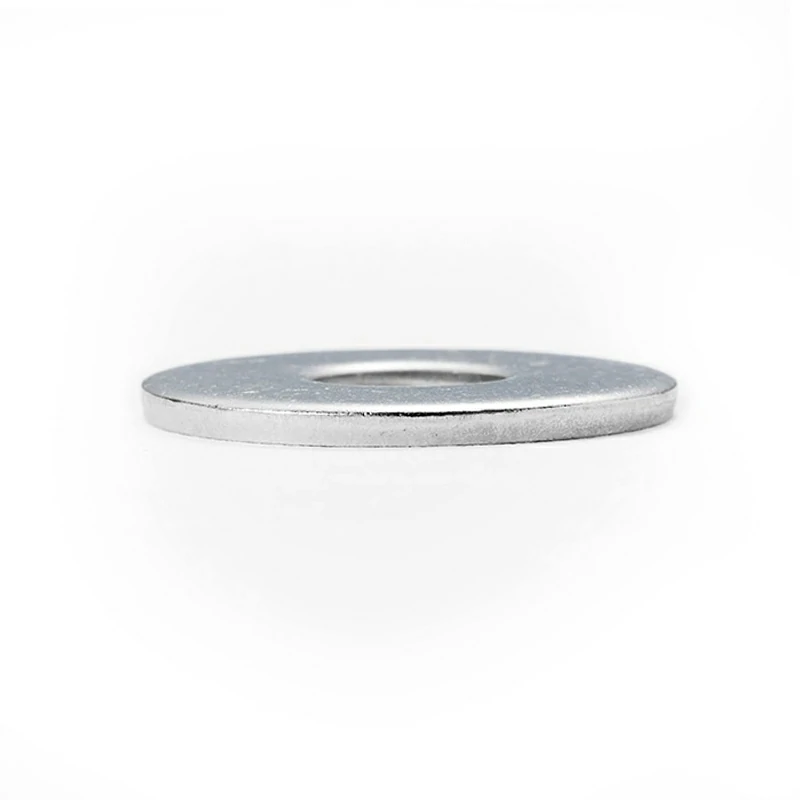

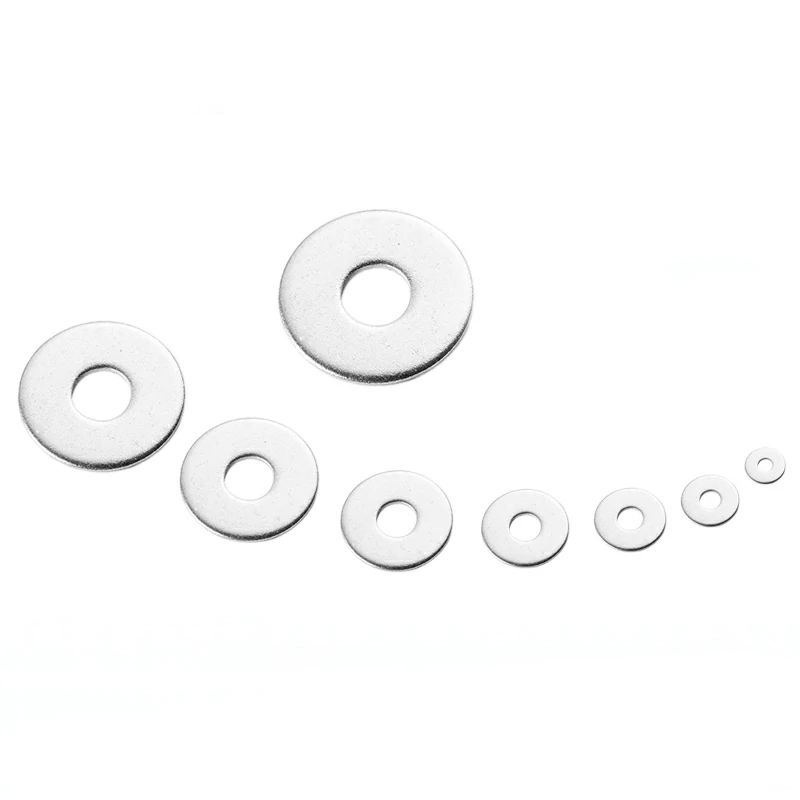

Large flat washer |
|
Standard |
DIN9021 |
|
Category |
Flat gasket |
|
Wood quality |
2205 duplex stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |
Specification
|

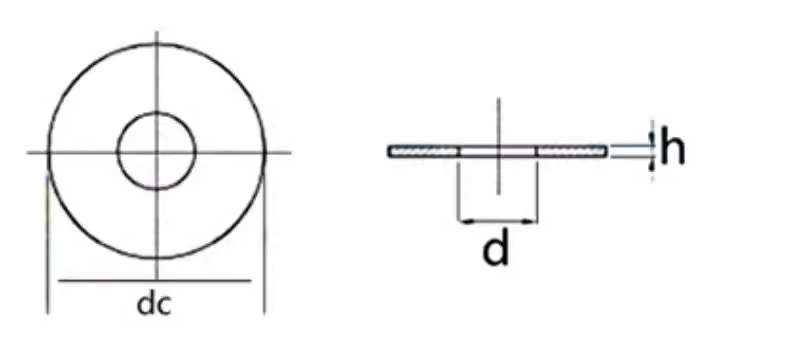

Specification |
DIN9021(GB96.1、IS07093-1) |
|||
|
Inside diameter |
Outside diameter |
Thickness |
Thousand-piece weight |
|
|
Φ3 |
3.20-3.38 |
8.64-9.00 |
0.8±0.1 |
0.349 |
|
Φ4 |
4.30-4.48 |
11.57-12.00 |
1.0±0.1 |
0.774 |
|
Φ5 |
5.30-5.48 |
14.57-15.00 |
1.0±0.1 |
1.46 |
|
Φ6 |
6.40-6.62 |
17.57-18.00 |
1.6±0.2 |
2.79 |
|
Φ8 |
8.40-8.62 |
23.48-24.00 |
2.0±0.2 |
6.23 |
|
Φ10 |
10.50-10.77 |
29.48-30.00 |
2.5±0.2 |
12.2 |
|
Φ12 |
13.00-13.27 |
36.38-37.00 |
3.0±0.3 |
22.2 |
|
Φ14 |
15.00-15.27 |
43.38-44.00 |
3.0±0.3 |
31.6 |
|
Φ16 |
17.00-17.27 |
49.38-50.00 |
3.0±0.3 |
40.9 |
|
Φ18 |
19.00-19.33 |
54.10-56.00 |
4.0±0.3 |
67.4 |
|
Φ20 |
21.00-21.33 |
59.26-60.00 |
4.0±0.3 |
76.8 |
|
Φ22 |
23.00-23.52 |
64.80-66.00 |
5.0±0.6 |
118 |
|
Φ24 |
25.00-25.52 |
70.80-72.00 |
5.0±0.6 |
140.5 |
|
Φ27 |
30.00-30.52 |
83.60-85.00 |
6.0±0.6 |
234 |
|
Φ30 |
33.00-33.62 |
90.60-92.00 |
6.0±0.6 |
273 |
|
Φ33 |
36.00-36.62 |
103.60-105.00 |
6.0±0.6 |
360 |
|
Φ36 |
39.00-39.62 |
108.60-110.00 |
8.0±1.2 |
522 |
