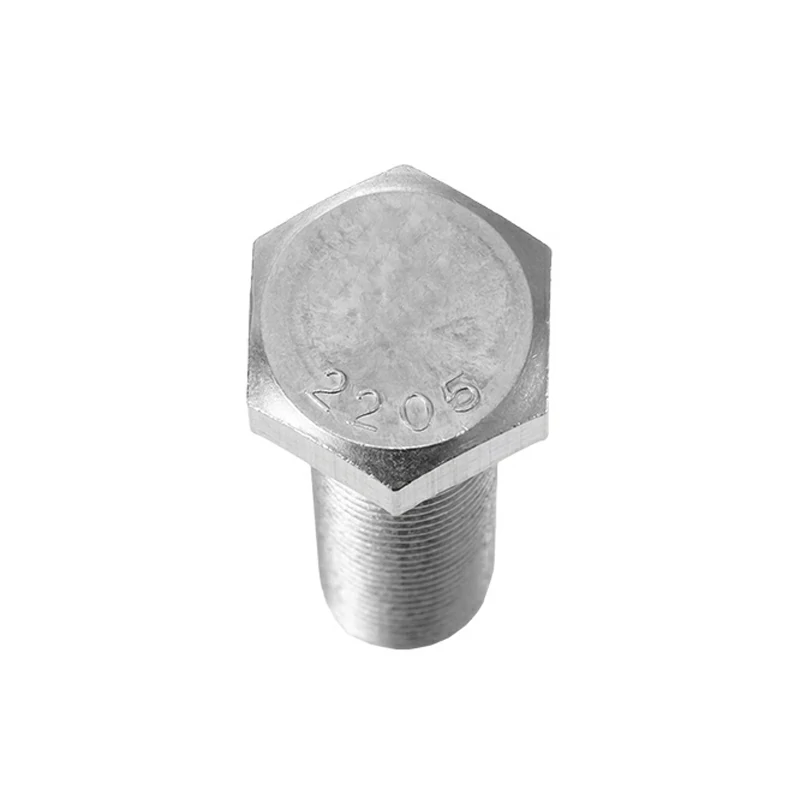

The 2205 Stainless Steel DIN Full Thread Hex Head Socket Bolt is a highly robust and corrosion-resistant fastener, fully threaded, with an external hexagonal head, manufactured to German industrial standards, and available in various lengths with an diameter. This Hex Head Socket Bolt is made from 2205 duplex stainless steel, which provides excellent performance in marine, chemical, and high-stress environments.
Parameter Information
|
Brand name |
Hexagon shank bolt |
|
Standard |
DIN933 |
|
Type |
Hexagon outside |
|
Wood quality |
2205 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

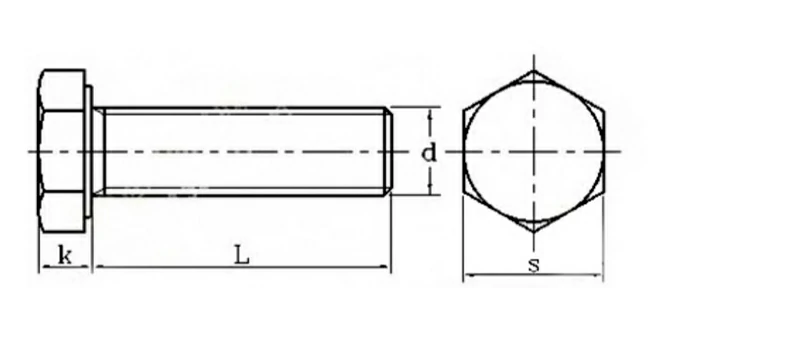

Specification
|
Specification -d |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
|
Dental distance |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
|
Opposite side -s |
7 |
8 |
10 |
13 |
17 |
19 |
22 |
24 |
|
Head thickness -k |
2.8 |
3.4 |
4.1 |
5.3 |
6.8 |
7.5 |
9 |
10 |
|
Specification -d |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
|
Dental distance |
2.5 |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
|
Opposite side -s |
27 |
30 |
32 |
36 |
41 |
46 |
50 |
55 |
|
Head thickness -k |
12 |
12.5 |
14 |
15 |
17 |
19 |
21 |
23 |
