Parameter Information
|
Brand name |
Cross-groove countersunk self-drilling and self-tapping screws |
|
Head shape |
Sink one's head |
|
Standard |
DIN7504P |
|
Wood quality |
410 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

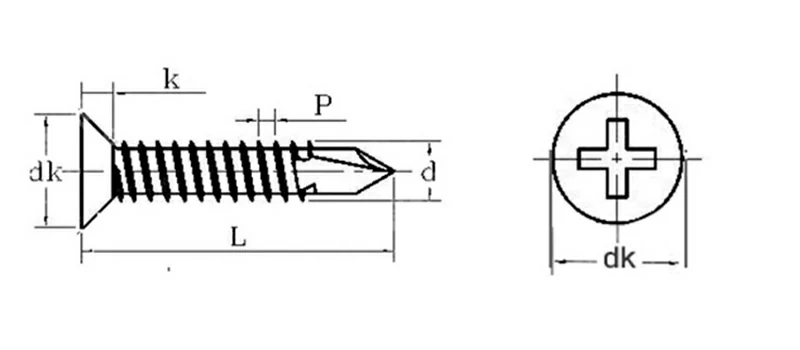

Specification
|
Specification |
M2.9 |
M3.5 |
M4.2 |
M4.8 |
M5.5 |
M6.3 |
|
Pitch -p |
1.1 |
1.3 |
1.4 |
1.6 |
1.8 |
1.85 |
|
Head diameter -dk |
5.5 |
7.3 |
8.4 |
9.3 |
10.3 |
11.3 |
|
Head thickness -k |
1.7 |
2.35 |
2.6 |
2.8 |
3 |
3.15 |
