Parameter Information
|
Brand name |
Hex socket screw with cylindrical head |
|
Standard |
DIN912- Full teeth |
|
Wood quality |
316L stainless steel |
|
Category |
Machine screw |
|
Head shape |
Hex socket |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

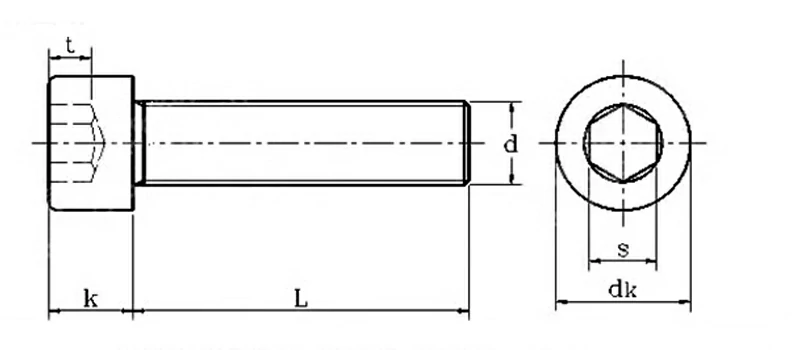

Specification
|
Specification |
M1.4 |
M1.2 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M20 |
|
Pitch |
0.2 |
0.3 |
0.4 |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2 |
|
Opposite side |
0.8 |
1.5 |
1.5 |
2 |
2.2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
13.8 |
14 |
|
Hexagonal hole depth |
0.4 |
0.6 |
0.8 |
1 |
1.3 |
2 |
2.5 |
3 |
4 |
5 |
6 |
7 |
8 |
8 |
|
Head diameter |
2.6 |
2.8 |
3.6 |
4.4 |
5.3 |
6.8 |
8.2 |
9.8 |
12.7 |
15.7 |
17.7 |
20.7 |
23.8 |
24 |
|
Head thickness |
1.36 |
1.6 |
1.8 |
2.4 |
3 |
4 |
5 |
5 |
8 |
10 |
12 |
14 |
16 |
16 |
