Parameter Information
|
Brand name |

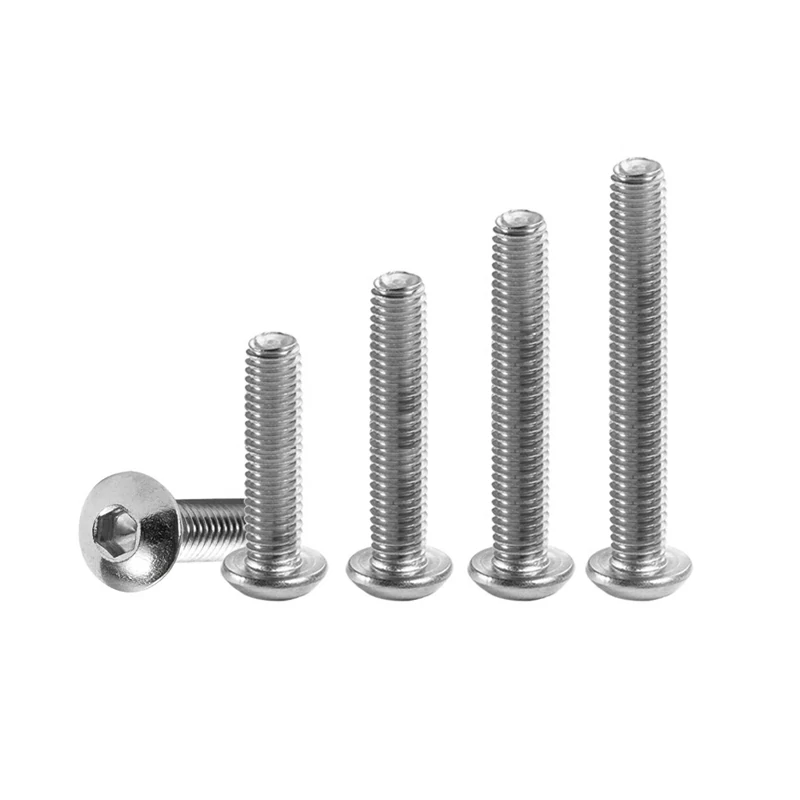

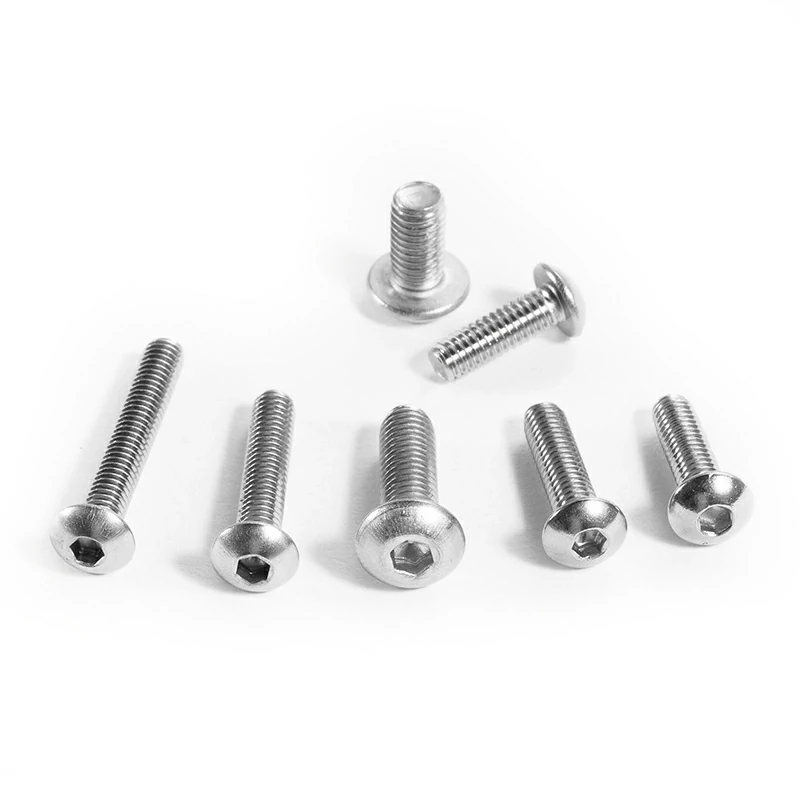

Hex socket machine screw with half round head |
|
Standard |
DIN912 |
|
Model number |
ISO7380-316M5 |
|
Category |
Machine screw |
|
Head shape |
Hex socket |
|
Wood quality |
304 stainless steel |
|
Standard type |
International standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

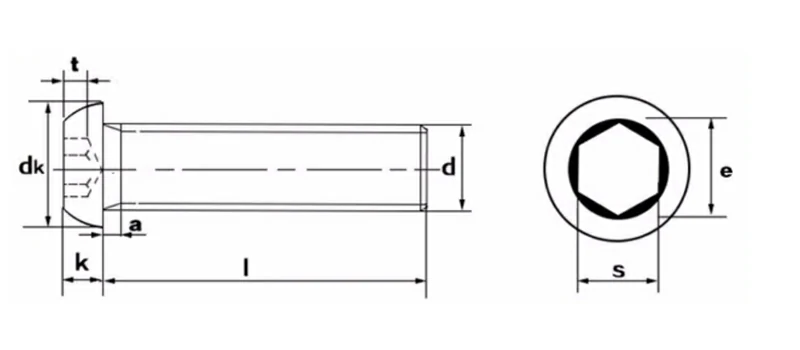

Specification
|
Specification |
Pitch |
a max |
dk max |
e min |
k max |
s |
t min |
|
M3 |
0.5 |
1 |
5.7 |
2.3 |
1.65 |
2 |
1.04 |
|
M4 |
0.7 |
1.4 |
7.6 |
2.87 |
2.2 |
2.5 |
1.3 |
|
M5 |
0.8 |
1.6 |
9.5 |
3.44 |
2.75 |
3 |
1.56 |
|
M6 |
1 |
2 |
10.5 |
4.58 |
3.3 |
4 |
2.8 |
|
M8 |
1.25 |
2.5 |
14 |
5.72 |
4.4 |
5 |
2.6 |
|
M10 |
1. 5 |
3 |
17.5 |
6.86 |
5.5 |
6 |
3.12 |
|
M12 |
1.75 |
3.5 |
21 |
9.15 |
6.6 |
8 |
4.16 |
|
M16 |
2 |
4 |
28 |
11.43 |
8.8 |
10 |
5.2 |
