Parameter Information
|
Brand name |
Double head screw through wall combination |
|
Head shape |
Hex socket |
|
Category |
Set screw |
|
Wood quality |
316 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

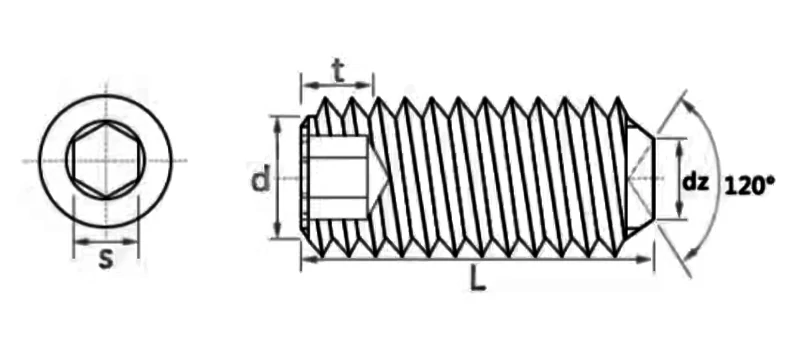

Specification
|
Thread specification -d |
M1.6 |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
|
|
Pitch -p |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
|
|
n |
nominal |
0.7 |
0.9 |
1.3 |
1.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
6 |
8 |
|
max |
0.724 |
0.902 |
1.295 |
1.545 |
1.545 |
2.045 |
2.56 |
3.08 |
4.095 |
5.095 |
6.095 |
6.095 |
8.115 |
|
|
min |
0.711 |
0.889 |
1.27 |
1.52 |
1.52 |
2.02 |
2.52 |
3.02 |
4.02 |
5.02 |
60.2 |
6.02 |
8.025 |
|
|
Applicable wrench |
0.7 |
0.9 |
1.3 |
1.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
6 |
8 |
|
