Parameter Information
|
Brand name |

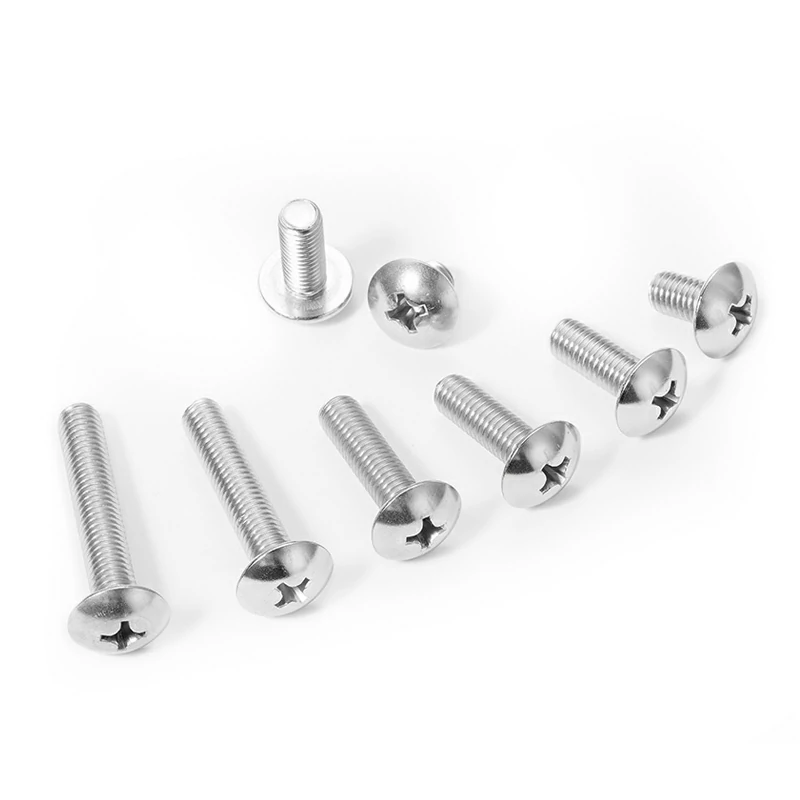

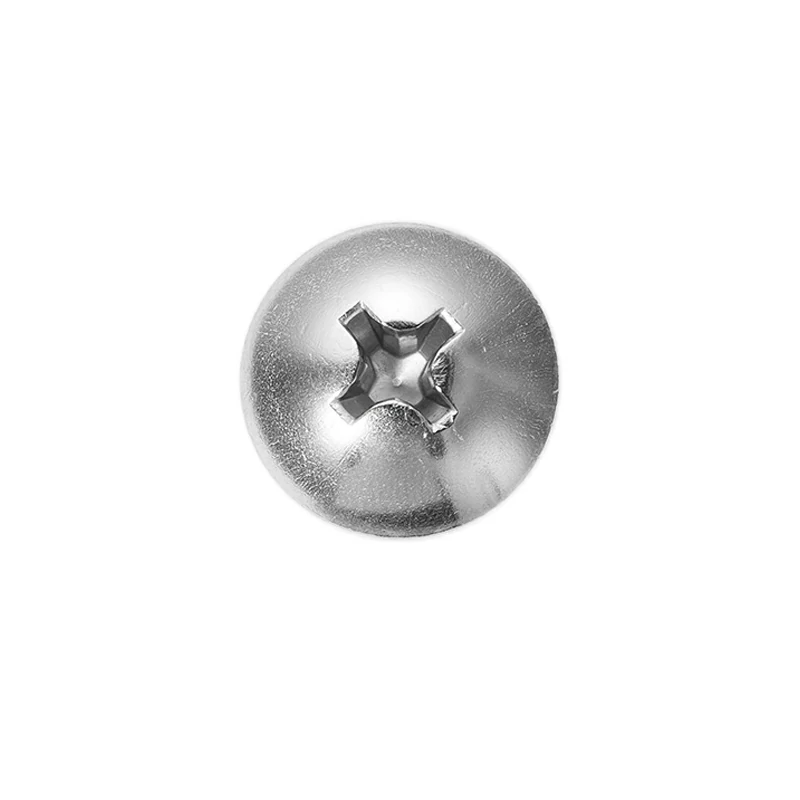

Cross-groove large flat head machine screw |
|
Standard |
JISB1111T |
|
Head shape |
Flat head |
|
Category |
Machine screw |
|
Wood quality |
304 stainless steel |
|
Standard type |
Japanese standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

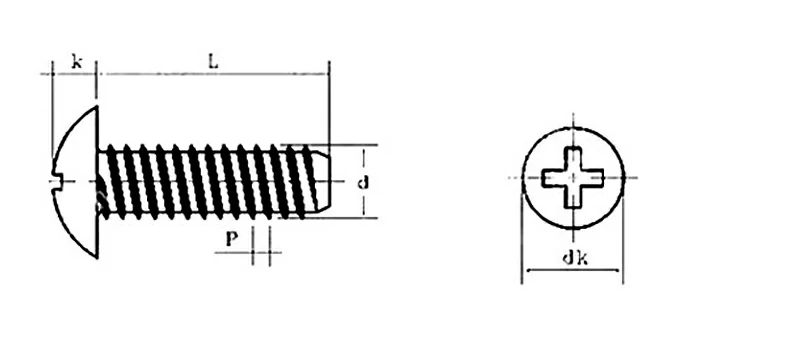

Specification
|
Specification |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M4.5 |
M5 |
M6 |
M8 |
|
Pitch -P |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.75 |
0.81 |
1 |
1.2 |
|
Thread diameter -d |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
6 |
8 |
|
Head diameter -dk |
4.5 |
5.7 |
6.5 |
8.1 |
8.8 |
10.6 |
11.1 |
13.2 |
17.8 |
|
Head thickness -k |
1.3 |
1.6 |
1.7 |
2.5 |
2.2 |
2.95 |
2.9 |
3.4 |
4.9 |
