Parameter Information
|
Brand name |

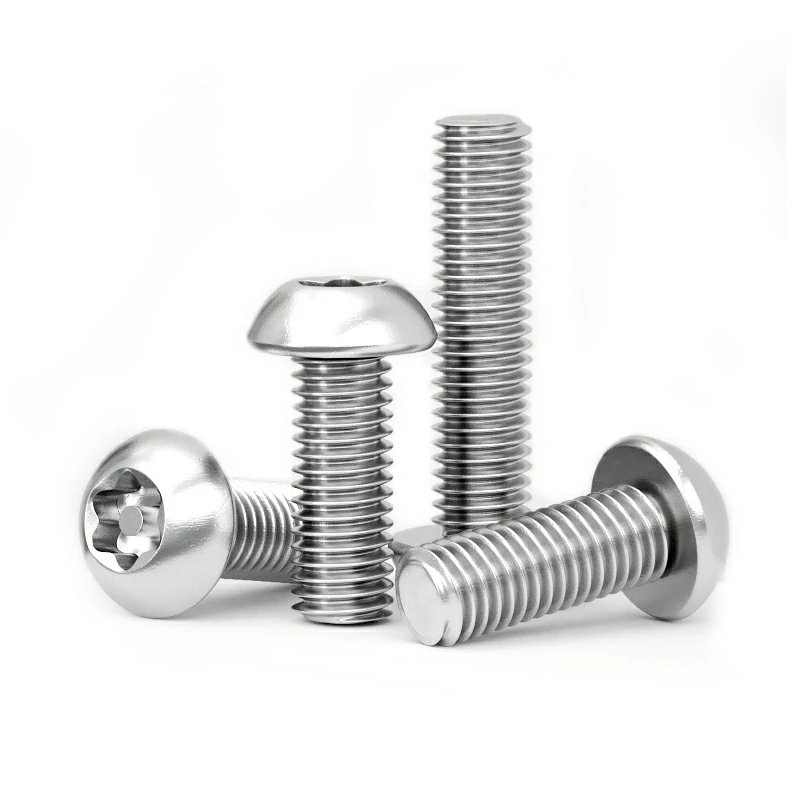

Half round head with plum inside pillar |
|
Head shape |
Roundness |
|
Category |
Machine screw |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

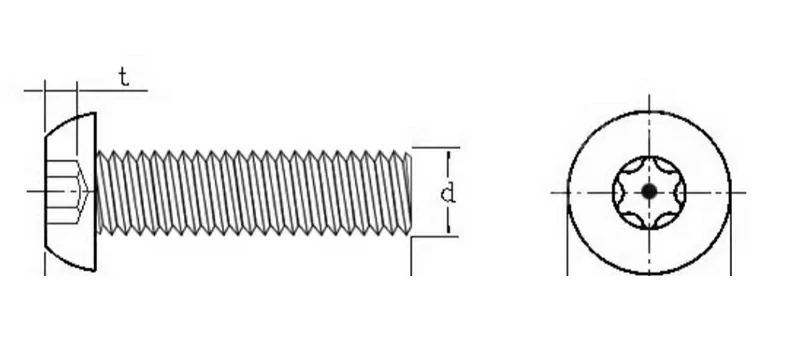

Specification
|
Nominal diameter -d |
M3 |
M4 |
M5 |
M6 |
M8 |
|
|
Pitch -p |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
|
|
dk |
max |
5.6 |
7.5 |
9.3 |
10.3 |
13.8 |
|
min |
5.5 |
7.4 |
9.2 |
10.2 |
13.6 |
|
|
k |
max |
1.7 |
2.2 |
2.9 |
3.3 |
4.4 |
|
min |
1.6 |
2.1 |
2.8 |
3.2 |
4.3 |
|
|
Suitable for hexagonal wrench |
T10 |
T20 |
T25 |
T30 |
T40 |
|
