Parameter Information
|
Brand name |
One word flat end tight |
|
Head shape |
Roundness |
|
Category |
Set screw |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

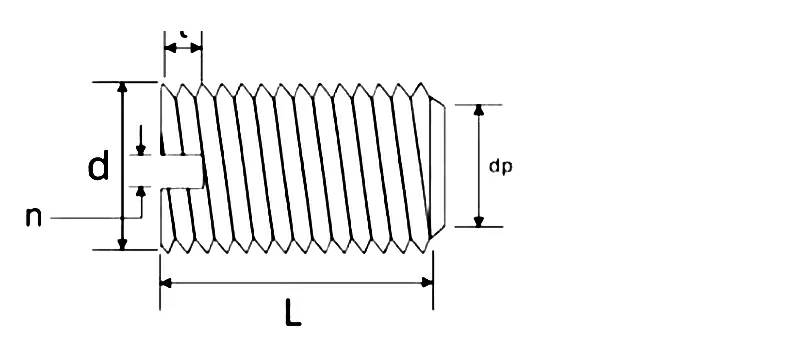

Specification
|
Nominal diameter -d |
M1.2 |
M1.6 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
|
|
Pitch -p |
0.25 |
0.35 |
0.4 |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
|
|
dp |
max |
0.6 |
0.8 |
1 |
1.5 |
2 |
2.5 |
3.5 |
4 |
5.5 |
7 |
8.5 |
|
min |
0.35 |
0.55 |
0.75 |
1.25 |
1.75 |
2.25 |
3.2 |
3.7 |
5.2 |
6.64 |
8.14 |
|
|
n |
nominal |
0.2 |
0.25 |
0.25 |
0.4 |
0.4 |
0.6 |
0.8 |
1 |
1.2 |
1.6 |
2 |
|
max |
0.4 |
0.45 |
0.45 |
0.6 |
0.6 |
0.8 |
1 |
1.31 |
1.51 |
1.91 |
2.31 |
|
|
min |
0.26 |
0.31 |
0.31 |
0.46 |
0.46 |
0.66 |
0.86 |
1.06 |
1.26 |
1.66 |
2.06 |
|
|
t |
max |
0.52 |
0.74 |
0.84 |
0.95 |
1.05 |
1.42 |
1.63 |
2 |
2.5 |
3 |
3.6 |
|
min |
0.4 |
0.56 |
0.64 |
0.72 |
0.8 |
1.12 |
1.28 |
1.6 |
2 |
2.4 |
2.8 |
|
