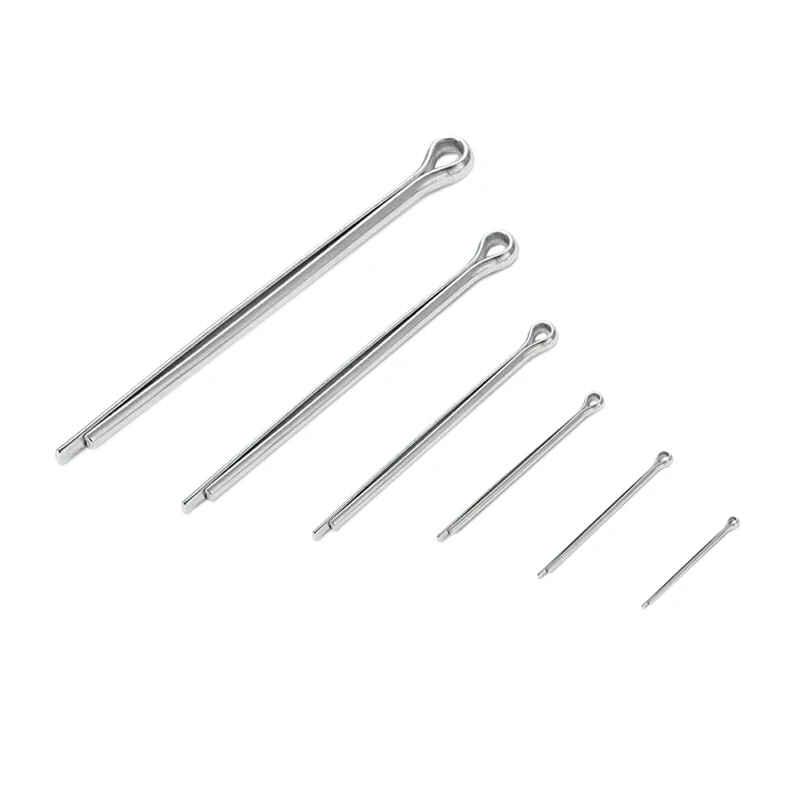

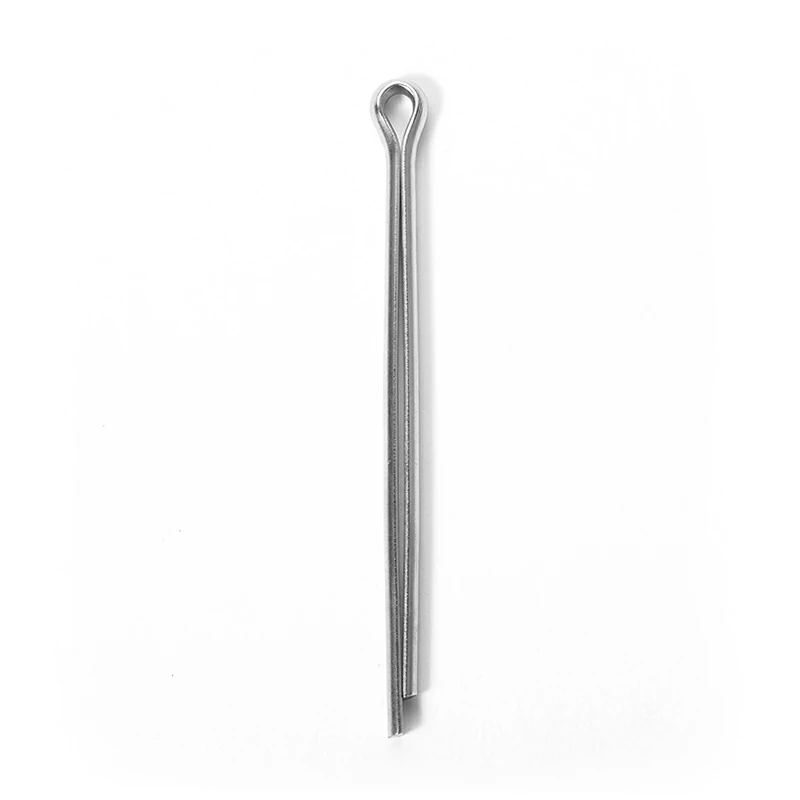

The GB91 304 SS Cotter Pin Card Pin is a assortment of durable, corrosion-resistant split pins made from 304 stainless steel, conforming to the Chinese GB91 standard, and available in a range of small diameters from 1.0mm to 2.5mm for securing various mechanical components. This Stainless Steel Cotter Pin Card Pin ∮1.0-∮2.5 is designed for use in mechanical, automotive, construction, and marine applications. Its small diameter range makes it ideal for precision fastening in lightweight assemblies or components that require secure, long-lasting fastening.
Parameter Information
|
Brand name |
Cotter Pin |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

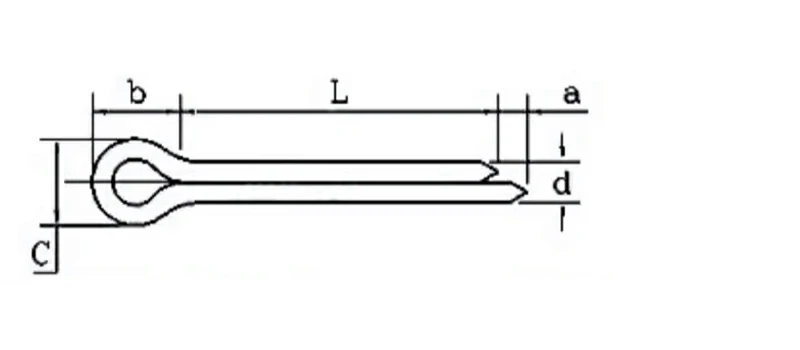

Specification
|
Nominal size -d |
d |
a |
b≈ |
c |
|||
|
max |
min |
max |
min |
max |
min |
||
|
0.6 |
0.5 |
0.4 |
1.6 |
0.8 |
2 |
1 |
0.9 |
|
0.8 |
0.7 |
0.6 |
1.6 |
0.8 |
2.4 |
1.4 |
1.2 |
|
1 |
0.9 |
0.8 |
1.6 |
0.8 |
3 |
1.8 |
1.6 |
|
1.2 |
1 |
0.9 |
2.5 |
1.25 |
3 |
2 |
1.7 |
|
1.6 |
1.4 |
1.3 |
2.5 |
1.25 |
3.2 |
2.8 |
2.4 |
|
2 |
1.8 |
1.7 |
2.5 |
1.25 |
4 |
3.6 |
3.2 |
|
2.5 |
2.3 |
2.1 |
2.5 |
1.25 |
5 |
4.6 |
4 |
|
3.2 |
2.9 |
2.7 |
3.2 |
1.6 |
6.4 |
5.8 |
5.1 |
|
4 |
3.7 |
3.5 |
4 |
2 |
8 |
7.4 |
6.5 |
|
5 |
4.6 |
4.4 |
4 |
2 |
10 |
9.2 |
8 |
|
6.3 |
5.9 |
5.7 |
4 |
2 |
12.6 |
11.8 |
10.3 |
|
8 |
7.5 |
7.3 |
4 |
2 |
16 |
15 |
13.1 |
|
10 |
9.5 |
9.3 |
6.3 |
3.15 |
20 |
19 |
16.6 |
|
13 |
12.4 |
12.1 |
6.3 |
3.15 |
26 |
24.8 |
21.7 |
|
16 |
15.4 |
15.1 |
6.3 |
3.15 |
32 |
30.8 |
27 |
|
20 |
19.3 |
19 |
6.3 |
3.15 |
40 |
38.5 |
33.8 |
