Parameter Information
|
Brand name |

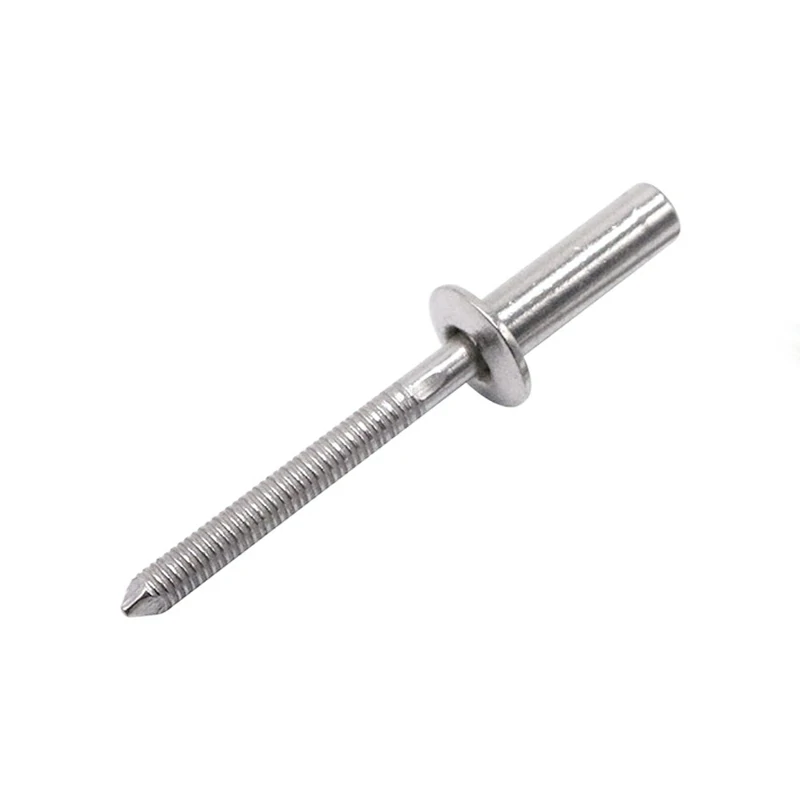

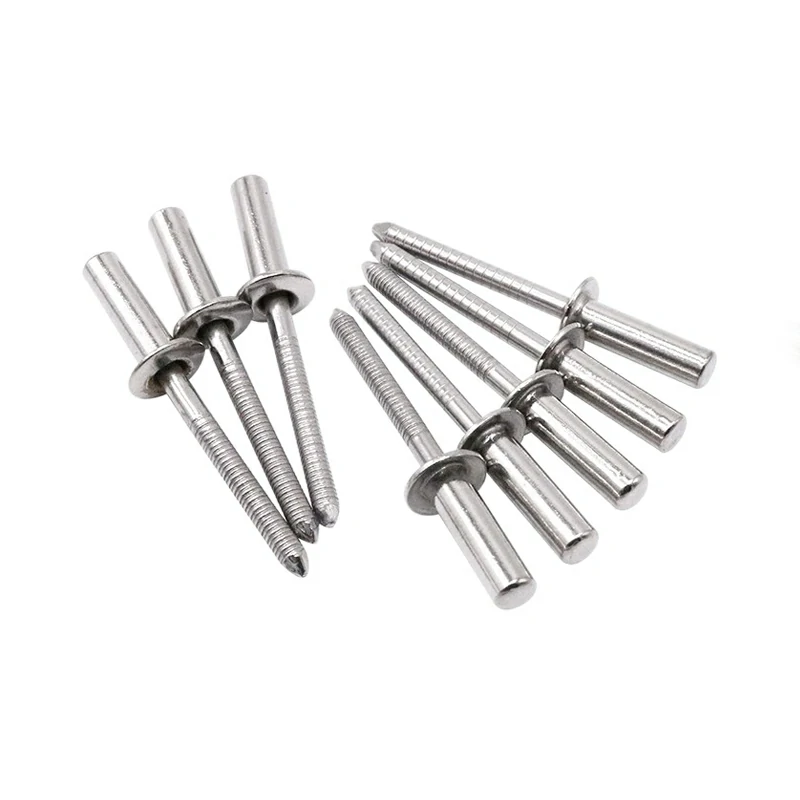

Closed oval head core-pulling rivet |
|
Standard |
GB12615 |
|
Wood quality |
Stainless steel/aluminum |
|
Standard type |
National standard |
|
Surface treatment |
White washing |
|
Packaging |
Packaging bag + carton packaging |

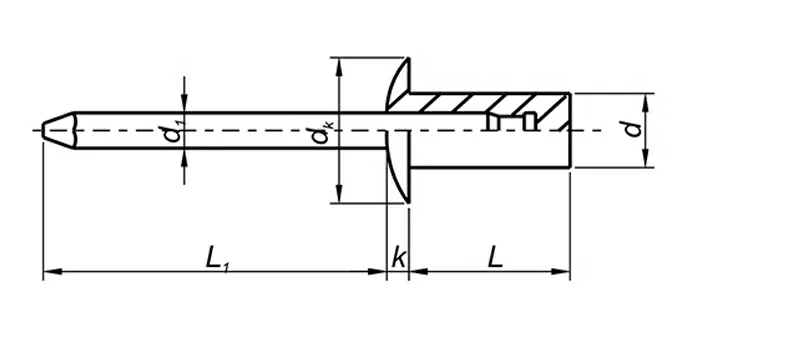

Specification
|
d |
dk |
k max |
R |
r |
d1 |
L1 |
|||
|
Nominal |
max |
min |
max |
min |
≈ |
max |
|||
|
3 |
3.07 |
2.93 |
6.24 |
5.76 |
1.4 |
5 |
0.5 |
1.8 |
26 |
|
3.2 |
3.29 |
3.11 |
6.27 |
5.76 |
1.4 |
5 |
0.5 |
1.8 |
26 |
|
4 |
4.09 |
3.91 |
8.29 |
7.71 |
1.7 |
6.8 |
0.5 |
2.18 |
27 |
|
5 |
5.09 |
4.91 |
8.89 |
9.31 |
2 |
7.6 |
0.7 |
2.8 |
27 |
|
6 |
6.09 |
5.91 |
12.35 |
11.65 |
2.5 |
9.3 |
0.7 |
3.6 |
31 |
