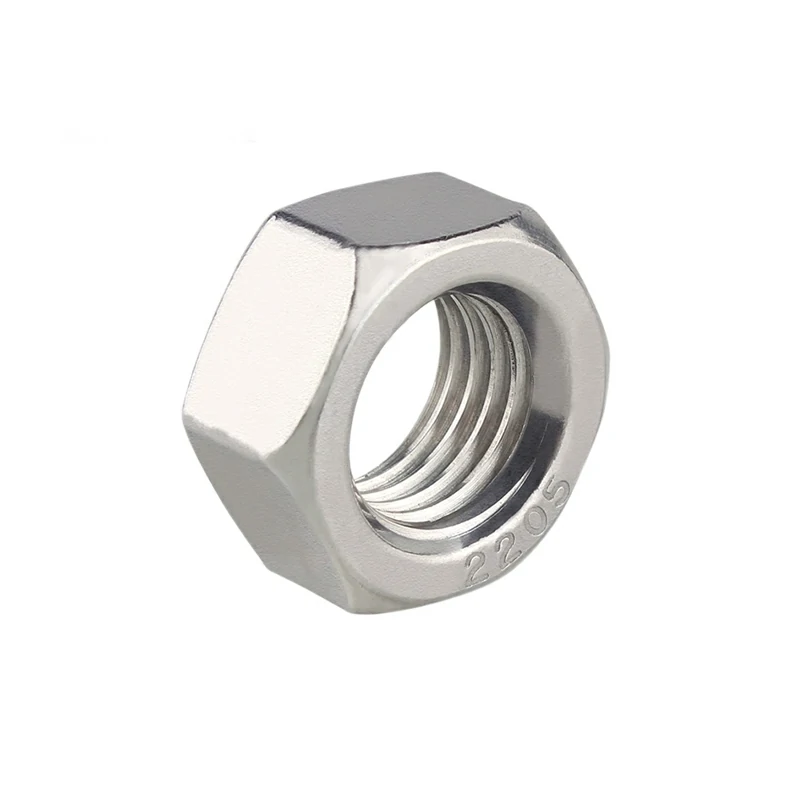

Parameter Information
|
Brand name |
Hexagonal nut |
|
Standard |
GB6170 |
|
Type |
Hexagon nut |
|
Wood quality |
2205 stainless steel |
|
Mode of action |
Lock tightly |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

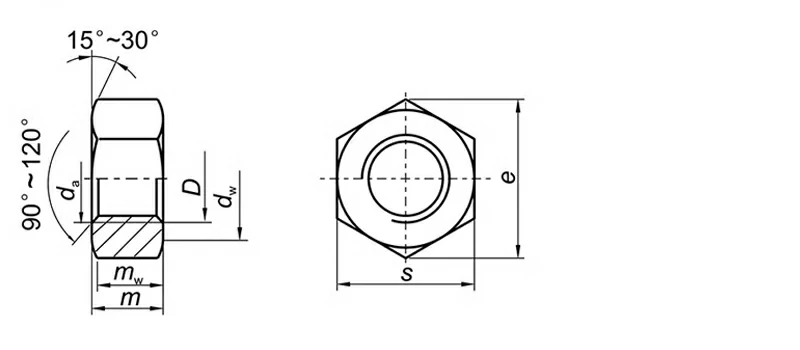

Specification
|
d |
M1.6 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
|
|
e |
min |
3.41 |
4.32 |
5.45 |
6.01 |
7.66 |
8.79 |
11.05 |
14.38 |
17.77 |
20.03 |
|
m |
max |
1.3 |
1.6 |
2 |
2.4 |
3.2 |
4.7 |
5.2 |
6.8 |
8.4 |
10.8 |
|
min |
1.05 |
1.35 |
1.75 |
2.15 |
2.9 |
4.4 |
4.9 |
6.44 |
8.04 |
10.37 |
|
|
s |
max |
3.2 |
4 |
5 |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
|
min |
3.02 |
3.82 |
4.82 |
5.32 |
6.78 |
7.78 |
9.78 |
12.73 |
15.73 |
17.73 |
|
|
|
The weight of every 1000 steel products is ≈kg |
||||||||||
|
|
0.05 |
0.1 |
0.21 |
0.3 |
0.649 |
1.19 |
2.19 |
4.74 |
8.91 |
13.67 |
|
|
d |
M14 |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
M56 |
M64 |
|
|
e |
min |
23.36 |
26.75 |
32.95 |
39.55 |
50.85 |
60.79 |
71.3 |
·82.6 |
93.56 |
104.86 |
|
m |
max |
14.1 |
14.8 |
18 |
21.5 |
25.6 |
31 |
34 |
38 |
45 |
51 |
|
min |
13.4 |
14.1 |
16.9 |
20.2 |
24.3 |
29.4 |
32.4 |
36.4 |
43.4 |
49.1 |
|
|
s |
max |
21 |
24 |
30 |
36 |
46 |
55 |
65 |
75 |
85 |
95 |
|
min |
20.67 |
23.67 |
29.16 |
35 |
45 |
53.8 |
63.1 |
73.1 |
82.8 |
92.8 |
|
|
|
The weight of every 1000 steel products is ≈kg |
||||||||||
|
|
21.63 |
32.66 |
58.37 |
100.5 |
205.2 |
351.7 |
534.8 |
816.8 |
1202 |
1659 |
|
