Parameter Information
|
Brand name |
Thickened hex nut |
|
Standard |
GB6175 |
|
Type |
Hexagon nut |
|
Wood quality |
321 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

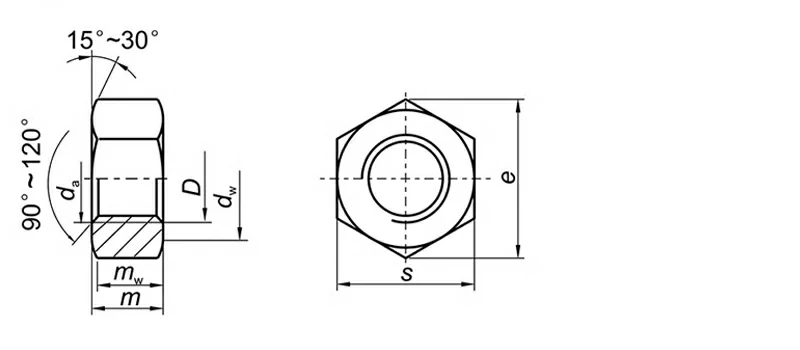

Specification
|
d |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M26 |
M30 |
|
|
e |
min |
8.79 |
11.05 |
14.38 |
17.77 |
20.03 |
26.75 |
32.95 |
39.55 |
50.85 |
60.79 |
|
m |
max |
5.1 |
5.7 |
7.5 |
9.3 |
12 |
16.4 |
20.3 |
23.9 |
28.6 |
34.7 |
|
min |
4.8 |
5.7 |
7.14 |
8.94 |
11.57 |
15.7 |
19 |
22.6 |
27.3 |
33.1 |
|
|
s |
max |
8 |
10 |
13 |
16 |
18 |
24 |
30 |
36 |
46 |
55 |
|
min |
7.78 |
9.78 |
12.73 |
15.73 |
17.73 |
23.67 |
29.16 |
35 |
45 |
53.8 |
|
|
|
The weight of every 1000 steel products is ≈kg |
||||||||||
|
|
1.30 |
2.41 |
5.25 |
9.90 |
15.25 |
36.36 |
65.62 |
112.5 |
230.5 |
396 |
|
