Parameter Information
|
Brand name |

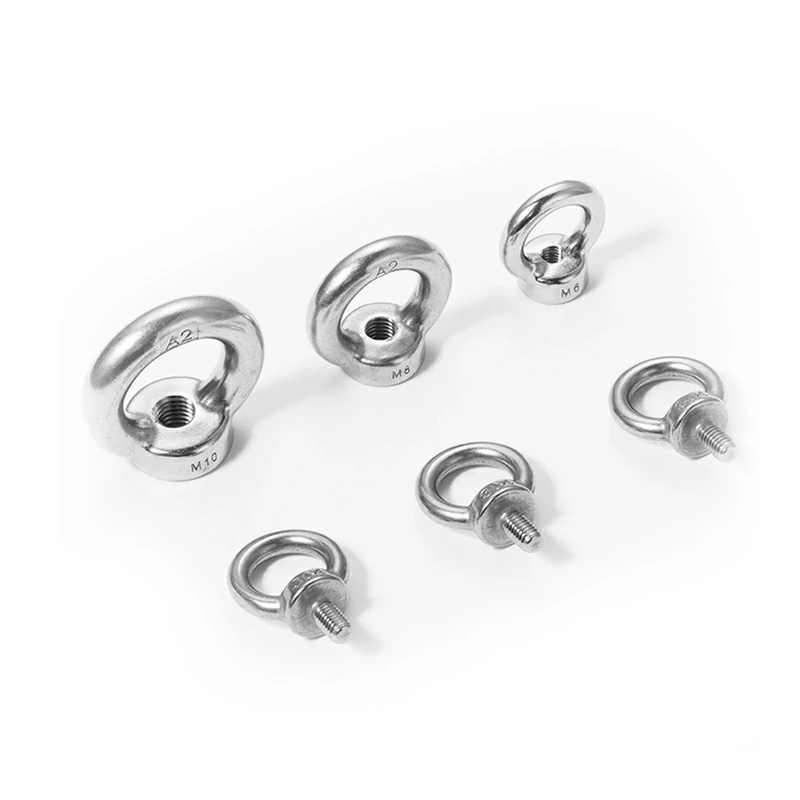

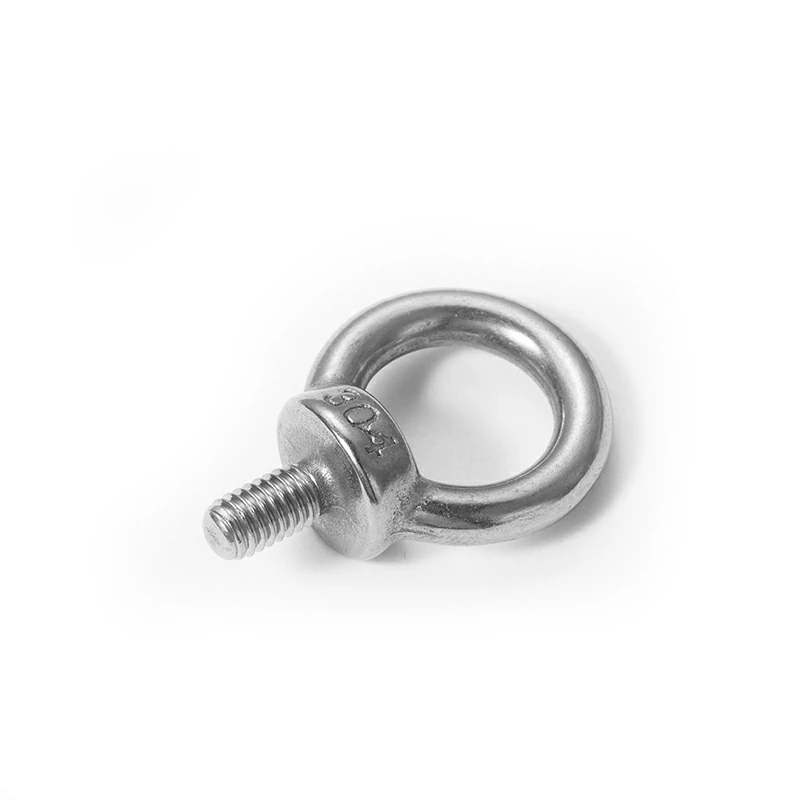

Ring bolt/ring nut |
|
Standard |
Ring bolt DIN580/ ring nut DIN582 |
|
Head shape |
Hanging rings |
|
Wood quality |
304 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

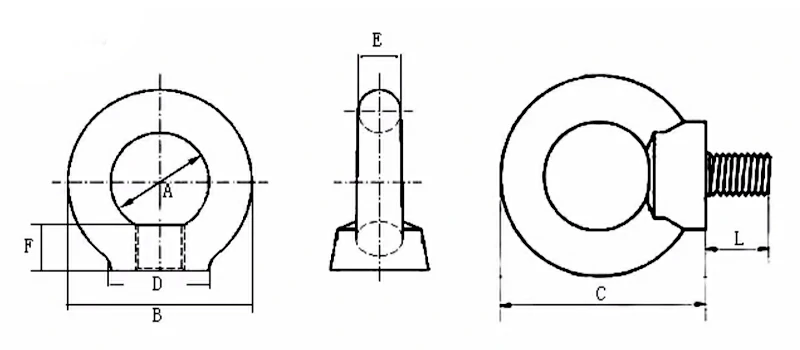

Specification
|
Specification |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
L(mm) |
|
M3 |
7 |
12.92 |
14.1 |
7 |
3.14 |
4 |
9.51 |
|
M4 |
10.5 |
17.77 |
19.32 |
8.5 |
4.14 |
5 |
10.83 |
|
M5 |
12.2 |
22.43 |
21.7 |
11.7 |
4.95 |
6 |
10.86 |
|
M6 |
16.42 |
27.12 |
29.6 |
16 |
5.36 |
6.5 |
12 |
|
M8 |
20.2 |
35.7 |
35.2 |
18.6 |
7.3 |
8 |
14 |
|
M10 |
25.6 |
42.82 |
43.5 |
23.3 |
8.6 |
9.5 |
18 |
