Parameter Information
|
Brand name |

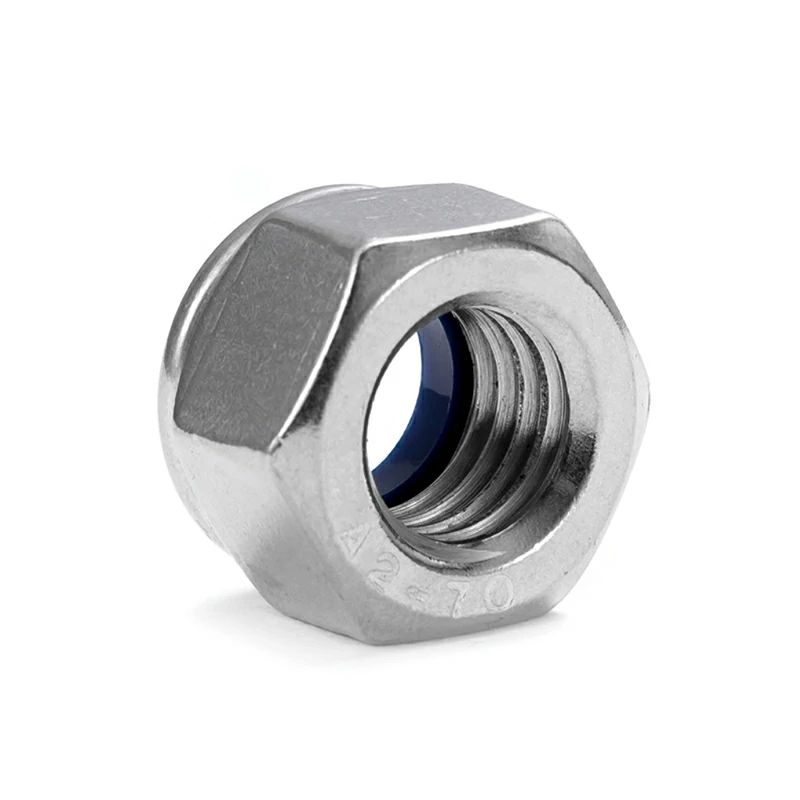

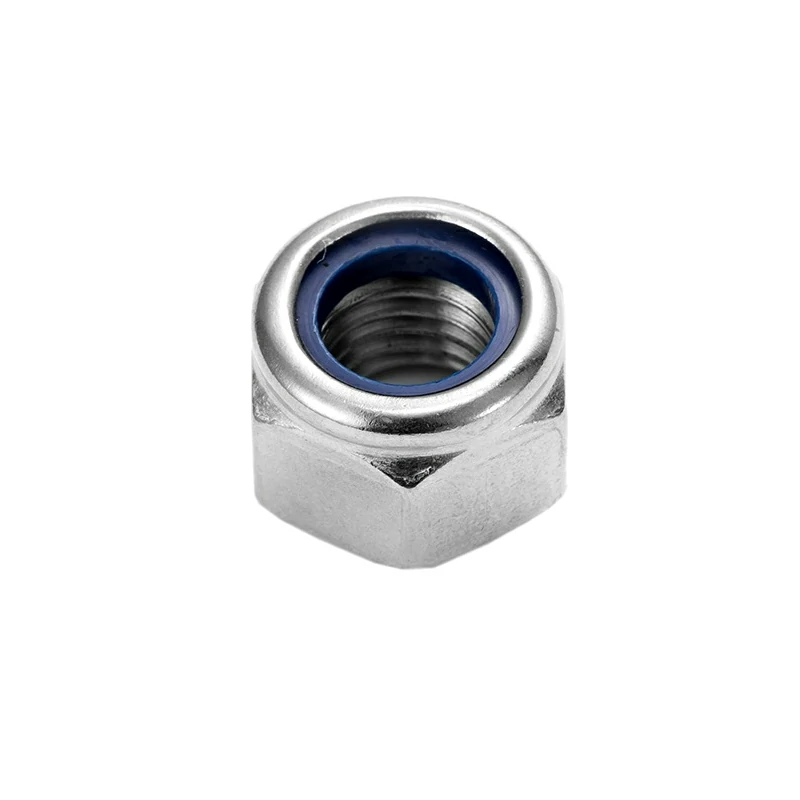

Hexagonal nylon nut - fine thread |
|
Standard |
DIN985 |
|
Type |
Lock nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock tightly |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

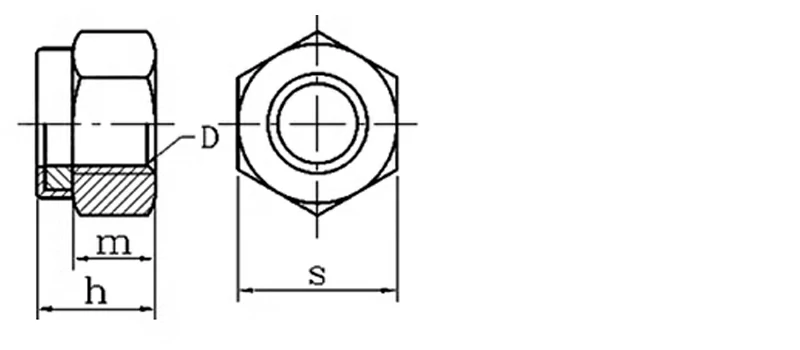

Specification
|
Thread specification-d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
|
|
P |
Pitch (coarse thread) |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
|
Fine teeth |
- |
- |
- |
- |
1 |
1.25 |
1.5 |
1.5 |
1.5 |
2 |
|
|
Fine teeth |
- |
- |
- |
- |
- |
1 |
1.25 |
- |
- |
1.5 |
|
|
e |
min |
6.01 |
7.66 |
8.79 |
11.05 |
14.38 |
18.9 |
21.1 |
24.49 |
26.75 |
29.56 |
|
h |
max= nominal |
4 |
5 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18.5 |
|
min |
3.7 |
4.7 |
4.7 |
5.7 |
7.64 |
9.64 |
11.57 |
13.3 |
15.3 |
17.66 |
|
|
m |
min |
2.4 |
2.9 |
3.2 |
4 |
5.5 |
6.5 |
8 |
9.5 |
10.5 |
13 |
|
s |
max= nominal |
5.5 |
7 |
8 |
10 |
13 |
17 |
19 |
22 |
24 |
27 |
|
min |
5.32 |
6.78 |
7.48 |
9.78 |
12.73 |
16.73 |
18.67 |
21.67 |
23.67 |
26.16 |
|
|
A thousand jin weighs in kilograms |
0.5 |
1 |
1.4 |
2.4 |
5.1 |
10.6 |
17.2 |
26 |
34 |
45 |
|
|
Thread specification-d |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
|
|
P |
Pitch (coarse thread) |
2.5 |
2.5 |
3 |
.3 |
3.5 |
3.5 |
4 |
4 |
4.5 |
4.5 |
|
Fine teeth |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
|
|
Fine teeth |
1.5 |
1.5 |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
e |
min |
32.95 |
35.03 |
39.55 |
45.2 |
50.85 |
55.37 |
60.79 |
66.44 |
72.09 |
76.95 |
|
h |
max= nominal |
20 |
22 |
24 |
27 |
30 |
33 |
36 |
39 |
42 |
45 |
|
min |
18.7 |
20.7 |
22.7 |
25.7 |
28.7 |
31.4 |
34.4 |
37.4 |
40.4 |
43.4 |
|
|
m |
min |
14 |
15 |
15 |
17 |
19 |
22 |
25 |
27 |
29 |
32 |
|
s |
max= nominal |
30 |
32 |
36 |
41 |
46 |
50 |
55 |
60 |
65 |
70 |
|
min |
29.16 |
31 |
35 |
40 |
45 |
49 |
53.8 |
58.8 |
63.8 |
68.1 |
|
|
A thousand jin weighs in kilograms |
65 |
75 |
100 |
162 |
212 |
317 |
415 |
499 |
628 |
771 |
|
