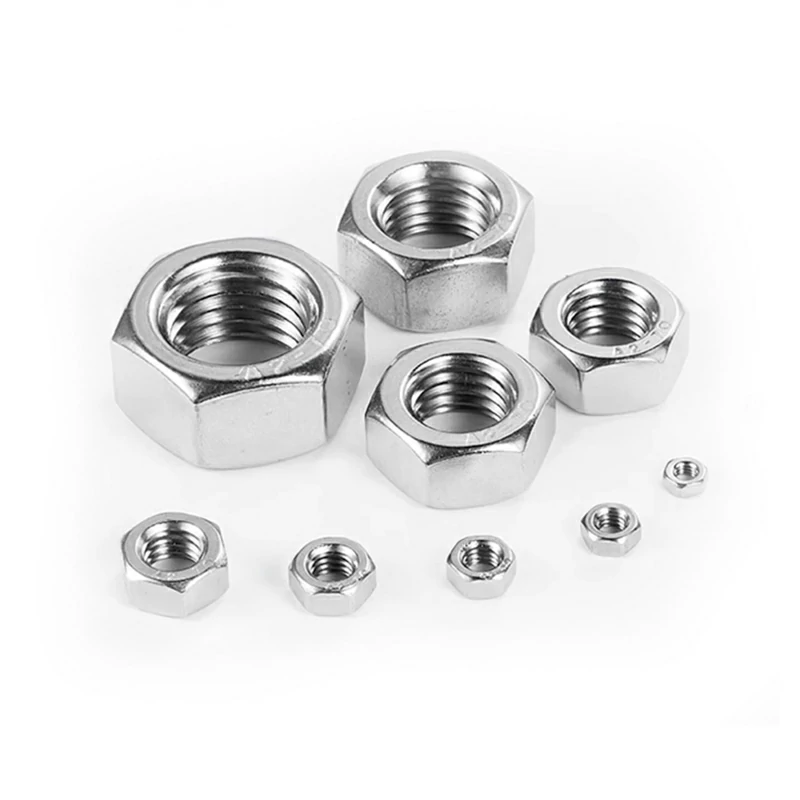

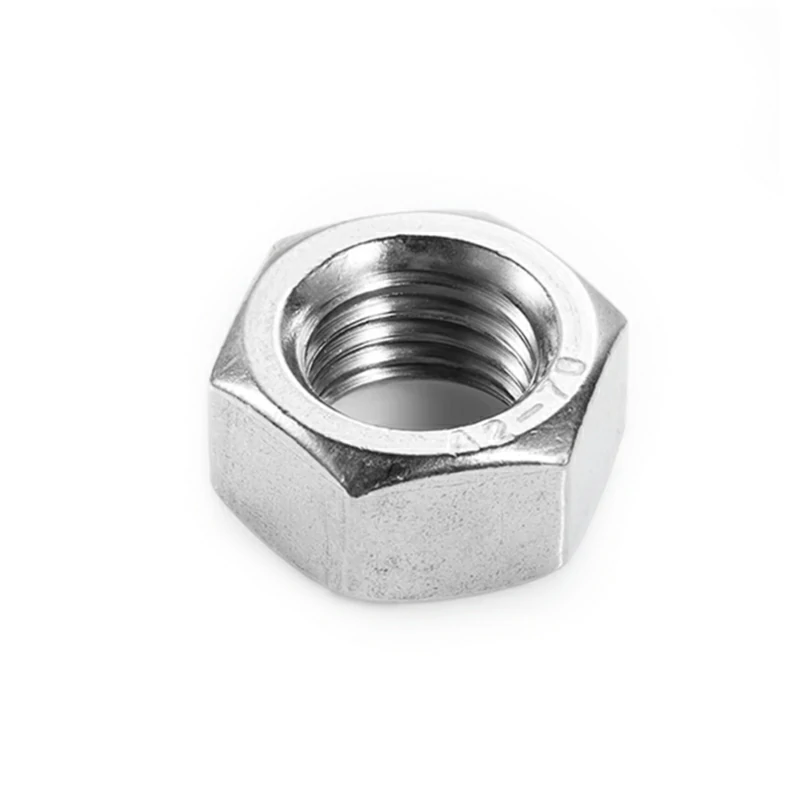

Parameter Information
|
Brand name |
Hexagon nut |
|
Standard |
DIN934 |
|
Type |
Hexagon nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

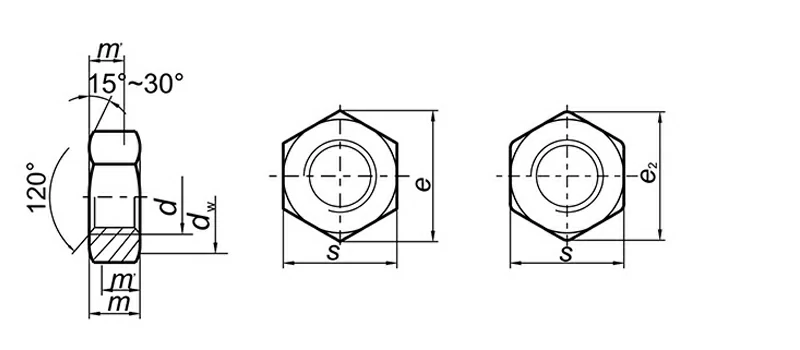

Specification
|
Specification-d |
M1 |
M1.2 |
M1.4 |
M1.6 |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M16 |
M17 |
|
|
P |
0.25 |
0.25 |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1 |
|
|
da |
min |
1 |
1.2 |
1.4 |
1.6 |
2 |
2.5 |
3 |
3.5 |
4 |
5 |
6 |
7 |
|
max |
1.15 |
1.4 |
1.6 |
1.84 |
2.3 |
2.9 |
3.45 |
4 |
4.6 |
5.75 |
6.75 |
7.75 |
|
|
dw |
min |
2 |
2.1 |
2.1 |
2.4 |
3.2 |
4.1 |
4.5 |
5 |
5.8 |
6.8 |
8.8 |
9.5 |
|
e |
min |
2.71 |
3.28 |
3.28 |
3.41 |
4.32 |
5.45 |
6.01 |
6.58 |
7.66 |
8.79 |
11.05 |
12.12 |
|
m′ |
max= nominal size |
0.8 |
1 |
1.2 |
1.3 |
1.6 |
2 |
2.4 |
2.8 |
3.2 |
4 |
5 |
5.5 |
|
min |
0.55 |
0.75 |
0.95 |
1.05 |
1.35 |
1.75 |
2.15 |
2.55 |
2.9 |
3.7 |
4.7 |
5.2 |
|
|
m |
min |
0.44 |
0.6 |
0.76 |
0.84 |
1.08 |
1.4 |
1.72 |
2.04 |
2.32 |
2.96 |
3.76 |
4.16 |
|
s |
max= nominal size |
2.5 |
3 |
3 |
3.2 |
4 |
5 |
5.5 |
6 |
7 |
8 |
10 |
11 |
|
min |
2.4 |
2. 9 |
2. 9 |
3.02 |
3.82 |
4.82 |
5.32 |
5.82 |
6.78 |
7.78 |
9.78 |
10.73 |
|
|
Weight (7.85kg/dm) ≈kg thousand pieces |
0.03 |
0.054 |
0.063 |
0.076 |
0.142 |
0.28 |
0.384 |
0.514 |
0.81 |
1.23 |
2.5 |
3.12 |
|
|
Specification-d |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
|
|
M8×1 |
M10×1 |
M12×1.5 |
M14×1.5 |
M16×1.5 |
M18×1.5 |
M20×2 |
||
|
|
M10×1.25 |
M12×1.25 |
|
|
M18×2 |
M20×1.5 |
||
|
P |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
2.5 |
|
|
da |
min |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
max |
8.75 |
10.8 |
13 |
15.1 |
17.3 |
19.5 |
21.6 |
|
|
dw |
min |
11.3 |
15.3 |
17.2 |
20.2 |
22.2 |
25.3 |
28.2 |
|
e |
min |
14.38 |
18.9 |
21.1 |
24.49 |
26.75 |
29.56 |
32.95 |
|
m′ |
max= nominal size |
6.5 |
8 |
10 |
11 |
13 |
15 |
16 |
|
min |
6.14 |
7.64 |
9.64 |
10.3 |
12.3 |
14.3 |
14.9 |
|
|
m |
min |
4.91 |
6.11 |
7.71 |
8.24 |
9.84 |
11.44 |
11.92 |
|
s |
max= nominal size |
13 |
17 |
19 |
22 |
24 |
27 |
30 |
|
min |
12.73 |
16.73 |
18.67 |
21.67 |
23.67 |
26.16 |
29.16 |
|
|
Weight (7.85kg/dm) ≈kg thousand pieces |
5.2 |
11.6 |
17.3 |
25 |
33.3 |
49.4 |
64.4 |
|
|
Specification-d |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
|
|
M22×1.5 |
M24×2 |
M27×2 |
M30×2 |
M33×2 |
M36×3 |
M39×3 |
||
|
M22×2 |
|
|
|
|
|
|
||
|
P |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
4 |
|
|
da |
min |
22 |
24 |
27 |
30 |
33 |
36 |
39 |
|
max |
23.7 |
25.9 |
29.1 |
32.4 |
35.6 |
38.9 |
42.1 |
|
|
dw |
min |
29.5 |
33.2 |
38 |
42.7 |
46.6 |
51.1 |
55.9 |
|
e |
min |
35.03 |
39.55 |
45.2 |
50.85 |
55.37 |
60.79 |
66.44 |
|
m′ |
max= nominal size |
18 |
19 |
22 |
24 |
26 |
29 |
31 |
|
min |
16.9 |
17.7 |
20.7 |
22.7 |
24.7 |
27.4 |
29.4 |
|
|
m |
min |
13.52 |
14.16 |
16.56 |
18.16 |
19.76 |
21.92 |
23.52 |
|
s |
max= nominal size |
32 |
36 |
41 |
46 |
50 |
55 |
60 |
|
min |
31 |
35 |
40 |
45 |
49 |
53.8 |
58.8 |
|
|
Weight (7.85kg/dm) ≈kg thousand pieces |
79 |
110 |
165 |
223 |
288 |
393 |
502 |
|
|
Specification-d |
M42 |
M45 |
M48 |
M52 |
M56 |
M60 |
M64 |
|
|
M42×3 |
M45×3 |
M48×3 |
M52×3 |
M56×4 |
M60×4 |
M64×4 |
||
|
P |
4.5 |
4.5 |
5 |
5 |
5.5 |
5.5 |
6 |
|
|
da |
min |
42 |
45 |
48 |
52 |
56 |
60 |
64 |
|
max |
45.4 |
48.6 |
51.8 |
56.2 |
60.5 |
64.8 |
69.1 |
|
|
dw |
min |
60.6 |
64.7 |
69.4 |
74.2 |
78.7 |
83.4 |
88.2 |
|
e |
min |
71.3 |
76.95 |
82.6 |
88.25 |
93.56 |
99.21 |
104.86 |
|
m′ |
max= nominal size |
34 |
36 |
38 |
42 |
45 |
48 |
51 |
|
min |
32.4 |
34.2 |
36.4 |
40.4 |
43.4 |
46.4 |
49.4 |
|
|
m |
min |
25.9 |
27.5 |
29.1 |
32.3 |
34.7 |
37.1 |
39.3 |
|
s |
max= nominal size |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
|
min |
63.1 |
68.1 |
73.1 |
78.1 |
82.8 |
87.8 |
92.8 |
|
|
Weight (7.85kg/dm) ≈kg thousand pieces |
652 |
800 |
977 |
1220 |
1420 |
1690 |
1980 |
|
