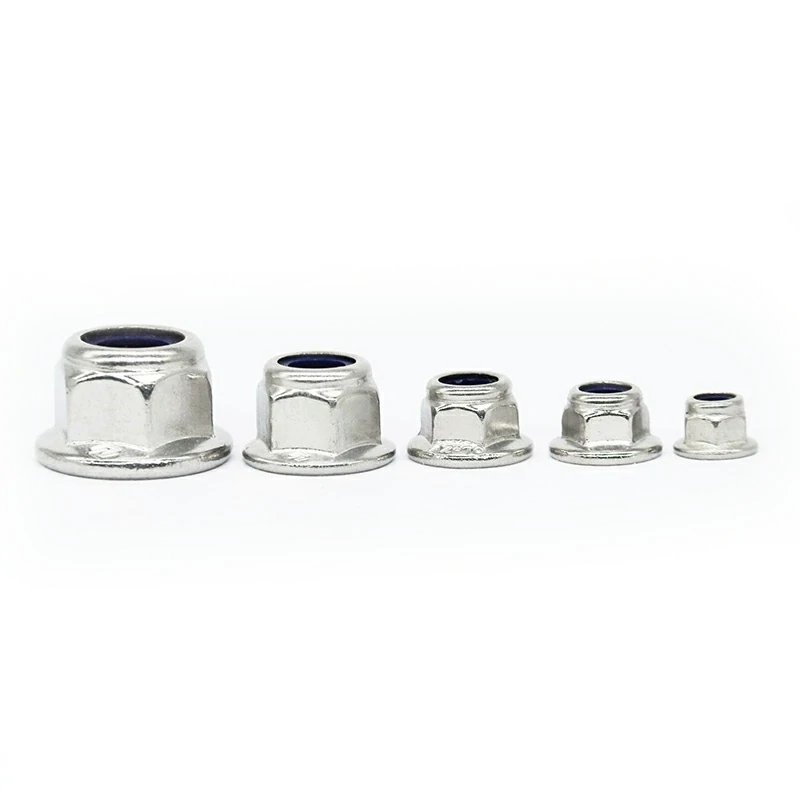

Parameter Information
|
Brand name |
Hex flange nylon lock nut |
|
Standard |
DIN6926 |
|
Type |
Flange nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

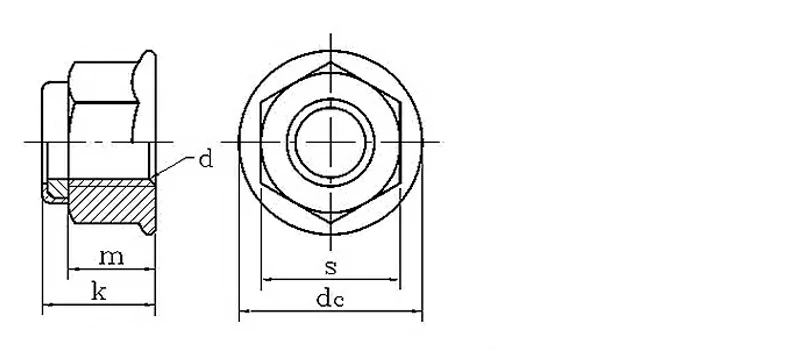

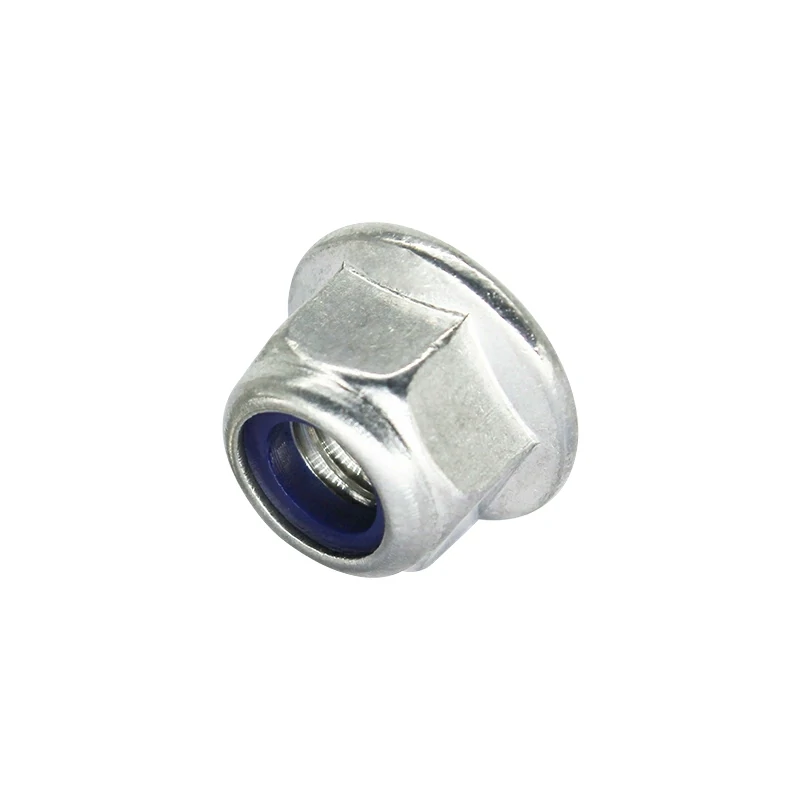

Specification
|
Nominal diameter -d |
Pitch -p |
dc |
k |
m |
s |
||
|
max |
max |
min |
min |
max |
min |
||
|
M4 |
0.7 |
10.5 |
6.5 |
6 |
4.5 |
7 |
6.6 |
|
M5 |
0.8 |
11.8 |
7.1 |
6.74 |
4.7 |
8 |
7.78 |
|
M6 |
1 |
14.2 |
9.1 |
8.74 |
5.7 |
10 |
9.78 |
|
M8 |
1.25 |
17.9 |
11.1 |
10.67 |
7.6 |
13 |
12.73 |
|
M10 |
1.5 |
21.8 |
13.5 |
13.07 |
9.6 |
15 |
14.73 |
|
M12 |
1.75 |
26 |
16.1 |
15.67 |
11.6 |
18 |
17.73 |
|
M14 |
2 |
29.9 |
18.2 |
17.68 |
13.3 |
21 |
20.67 |
|
M16 |
2 |
34.5 |
20.3 |
19.46 |
15.3 |
24 |
23.67 |
|
M20 |
2.5 |
42.8 |
24.8 |
23.96 |
18.9 |
30 |
29.16 |
