Parameter Information
|
Brand name |
Hexagon thin nut |
|
Standard |
DIN439 |
|
Wood quality |
304 stainless steel |
|
Product strength |
A2-70 |
|
Mode of action |
Lock |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

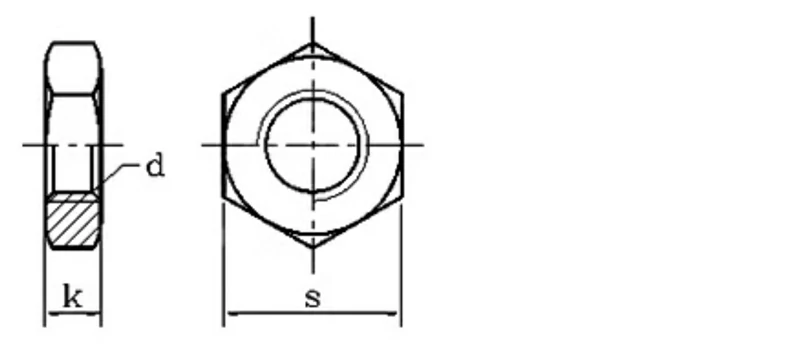

Specification
|
Nominal diameter -d |
Pitch -P |
k |
s |
The mass of every 1000 steel products is ≈kg |
||
|
max |
min |
max |
min |
|||
|
M1.6 |
0.35 |
1 |
0.75 |
3.2 |
3.02 |
0.04 |
|
M2 |
0.4 |
1.2 |
0.95 |
4 |
3.82 |
0.07 |
|
M2.5 |
0.45 |
1.6 |
1.35 |
5 |
4.82 |
0.16 |
|
M3 |
0.5 |
1.8 |
1.55 |
5.5 |
5.32 |
0.22 |
|
M3.5 |
0.6 |
2 |
1.75 |
6 |
5.82 |
0.28 |
|
M4 |
0.7 |
2.2 |
1.95 |
7 |
6.78 |
0.43 |
|
M5 |
0.8 |
2.7 |
2.45 |
8 |
7.78 |
0.66 |
|
M6 |
1 |
3.2 |
2.9 |
10 |
9.78 |
1.29 |
|
M8 |
1.25 |
4 |
3.7 |
13 |
12.73 |
2.72 |
|
M10 |
1.5 |
5 |
4.7 |
17 |
16.73 |
5.21 |
|
M12 |
1.75 |
6 |
5.7 |
19 |
18.67 |
7.51 |
|
M14 |
2 |
7 |
6.42 |
22 |
21.67 |
11.46 |
|
M16 |
2 |
8 |
7.42 |
24 |
23.67 |
17.18 |
|
M18 |
2.5 |
9 |
8.42 |
27 |
26.16 |
23.59 |
|
M20 |
2.5 |
10 |
9.1 |
30 |
29.16 |
31.43 |
|
M22 |
2.5 |
11 |
9.9 |
34 |
33 |
44.85 |
|
M24 |
3 |
12 |
10.9 |
36 |
35 |
54.26 |
|
M27 |
3 |
13.5 |
12.4 |
41 |
40 |
81.19 |
|
M30 |
3.5 |
15 |
13.9 |
46 |
45 |
117.4 |
|
M33 |
3.5 |
16.5 |
15.4 |
50 |
49 |
151.1 |
|
M36 |
4 |
18 |
16.9 |
55 |
53.8 |
202.2 |
|
M39 |
4 |
19.5 |
18.2 |
60 |
58.8 |
260.9 |
|
M42 |
4.5 |
21 |
19.7 |
65 |
63.1 |
325.2 |
|
M45 |
4.5 |
22.5 |
21.2 |
70 |
68.1 |
408.6 |
|
M48 |
5 |
24 |
22.7 |
75 |
73.1 |
509.4 |
|
M52 |
5 |
26 |
24.7 |
80 |
78.1 |
618.9 |
|
M56 |
5.5 |
28 |
26.7 |
85 |
82.8 |
739.2 |
|
M60 |
5.5 |
30 |
28.7 |
90 |
87.8 |
876.9 |
|
M64 |
6 |
32 |
30.5 |
95 |
92.8 |
1027 |
