Parameter Information
|
Brand name |

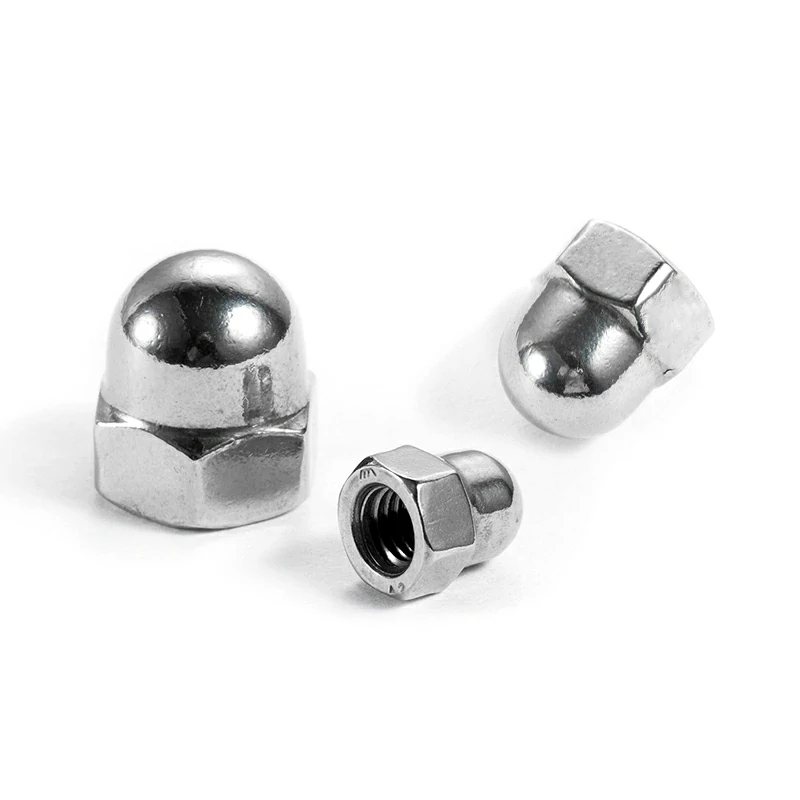

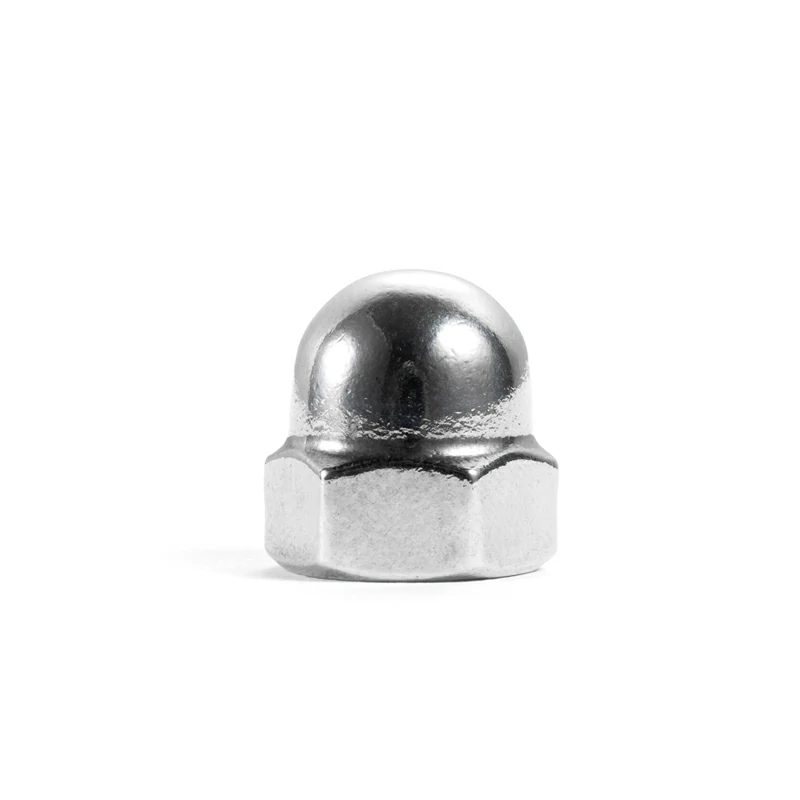

Hexagon cap nut - left tooth |
|
Standard |
DIN1587 |
|
Type |
Cap nut |
|
Wood quality |
304/316 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

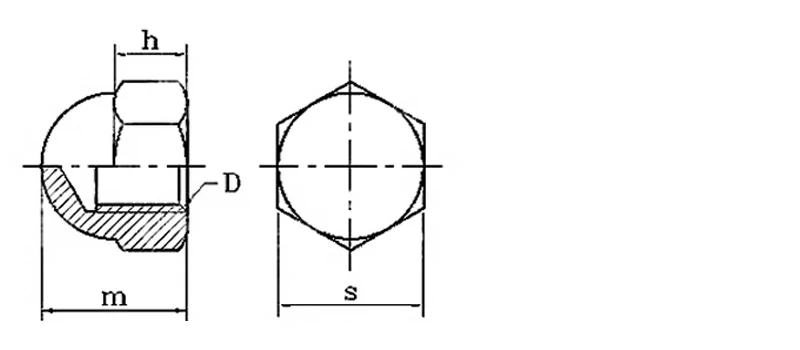

Specification
|
Specification |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
|
Pitch -P |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
2.5 |
2.5 |
3 |
|
Hexagon opposite side -s |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
27 |
30 |
34 |
36 |
|
Hexagonal thickness -h |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
11 |
13 |
14 |
16 |
18 |
19 |
|
Total thickness -m |
6 |
7 |
9 |
11 |
15 |
18 |
22 |
24 |
26 |
29 |
32 |
35 |
38 |
