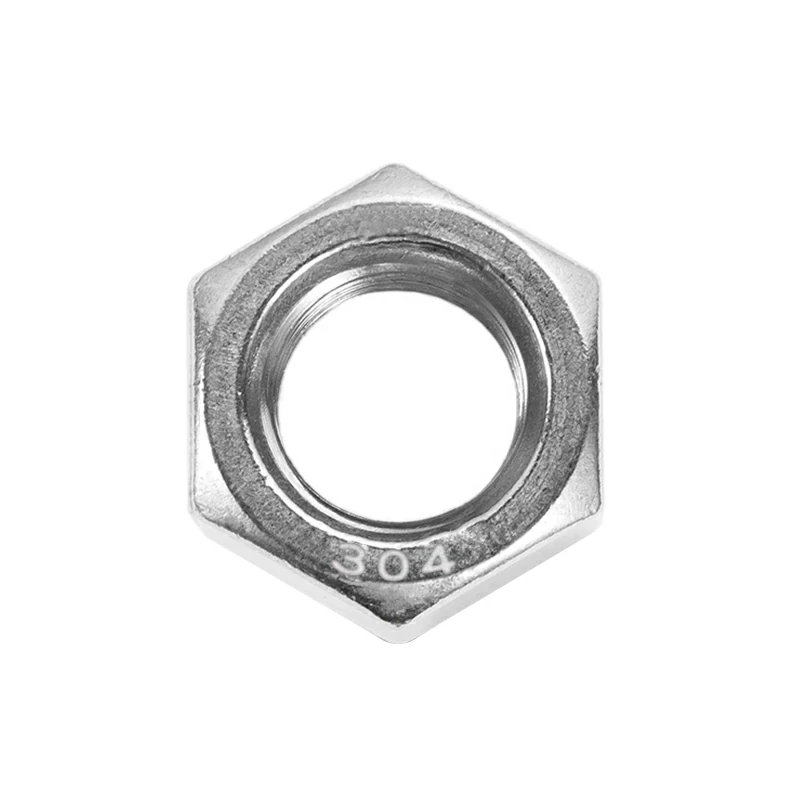

Parameter Information
|
Brand name |
American hexagon nut |
|
Standard |
ANSI B18.2.2 |
|
Type |
Hexagon nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
American standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

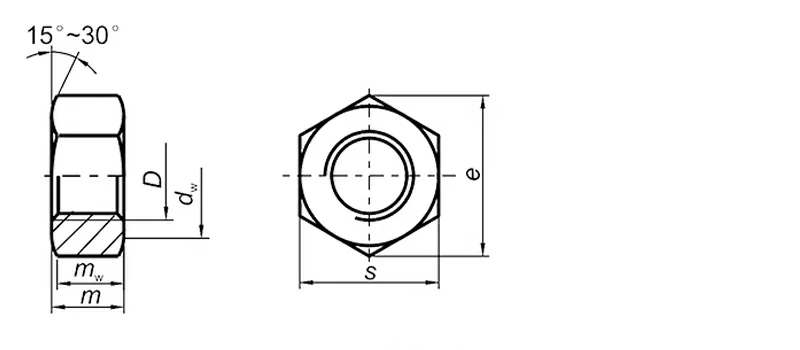

Specification
|
Nominal diameter-d |
s |
k |
||
|
max |
min |
max |
min |
|
|
1/4 |
0.438 |
0.428 |
0.226 |
0.212 |
|
5/16 |
0.500 |
0.489 |
0.273 |
0.258 |
|
3/8 |
0.562 |
0.551 |
0.337 |
0.320 |
|
7/16 |
0.688 |
0.675 |
0.385 |
0.365 |
|
1/2 |
0.750 |
0.736 |
0.448 |
0.427 |
|
9/16 |
0.875 |
0.861 |
0.496 |
0.473 |
|
5/8 |
0.938 |
0.922 |
0.559 |
0.535 |
|
3/4 |
1.125 |
1.088 |
0.665 |
0.617 |
|
7/8 |
1.312 |
1.269 |
0.776 |
0.724 |
|
1 |
1.500 |
1.450 |
0.887 |
0.831 |
|
1-1/8 |
1.688 |
1.631 |
0.999 |
0.939 |
|
1-1/4 |
1.875 |
1.812 |
1.094 |
1.030 |
|
1-3/8 |
2.062 |
1.994 |
1.206 |
1.138 |
|
1-1/2 |
2.250 |
2.175 |
1.317 |
1.245 |
