Parameter Information
|
Brand name |
Hexagon flange nut |
|
Standard |
DIN6923 |
|
Type |
Flange nut |
|
Wood quality |
304/316 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Oil anti-lock treatment/wax anti-lock treatment |
|
Packaging |
Packaging bag + carton packaging |

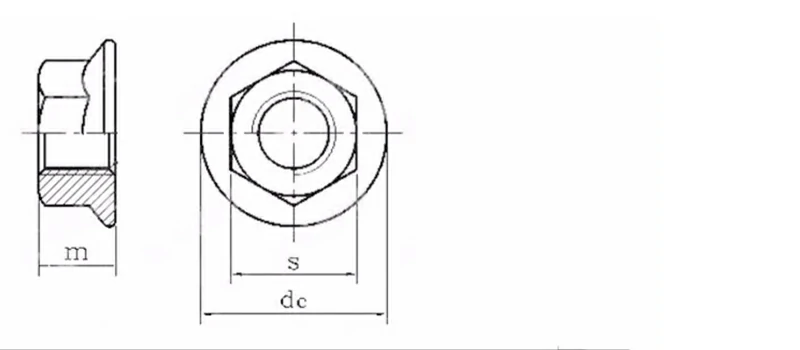

Specification
|
Specification |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M20 |
|
Pitch-P |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
|
Diameter-dc |
9.8 |
11.8 |
14.2 |
17.9 |
21.8 |
26 |
29.9 |
34.5 |
42.8 |
|
Hexagon to side-s |
7 |
8 |
10 |
13 |
15 |
18 |
21 |
24 |
30 |
|
Thickness-m |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
