Parameter Information
|
Brand name |
Thick hex nylon nut |
|
Standard |
DIN982 |
|
Type |
Lock nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
Lock |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

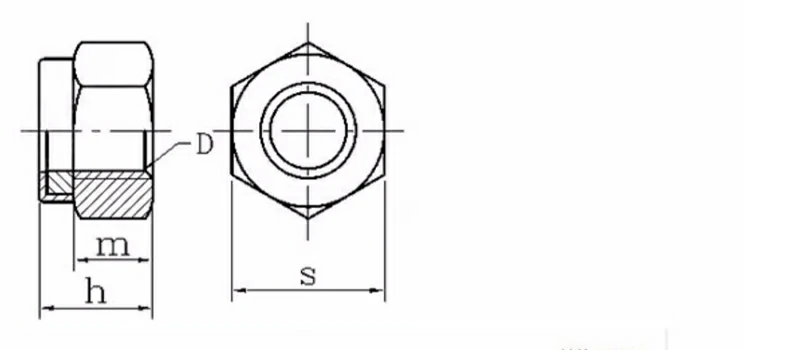

Specification
|
Nominal diameter -D |
Pitch -P |
h |
m |
s |
||
|
max |
min |
min |
max |
min |
||
|
M5 |
0.8 |
6.3 |
6 |
4.4 |
8 |
7.78 |
|
M6 |
1 |
8 |
7.7 |
4.9 |
10 |
9.78 |
|
M7 |
1 |
8.5 |
8.2 |
6.14 |
11 |
10.73 |
|
M8 |
1/1.25 |
9.5 |
9.14 |
6.44 |
13 |
12.73 |
|
M10 |
1/1.25/1.5 |
11.5 |
11.14 |
8.04 |
17 |
16.73 |
|
,M12 |
1.25/1.5/1.7 |
14 |
13.64 |
10.37 |
19 |
18.67 |
|
M14 |
1.5/2 |
16 |
15.3 |
12.1 |
22 |
21.67 |
|
M16 |
1.5/2 |
18 |
17.3 |
14.1 |
24 |
23.67 |
|
M18 |
1.5/2/2.5 |
20 |
19.16 |
15.1 |
27 |
26.16 |
|
M20 |
1.5/2/2.5 |
22 |
20.7 |
16.9 |
30 |
29.16 |
|
M22 |
1.5/2/2.5 |
25 |
23.7 |
18.1 |
32 |
31 |
|
M24 |
2/3 |
28 |
26.7 |
20.2 |
36 |
35 |
