Parameter Information
|
Brand name |
Square nut |
|
Standard |
DIN557 |
|
Type |
Square nut |
|
Mode of action |
lock |
|
Wood quality |
304/316/316L不锈钢 |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

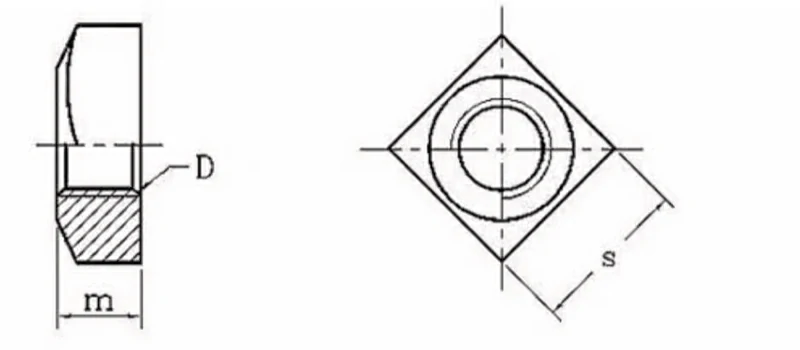

Specification
|
Nominal diameter -d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
|
|
Pitch -p |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
|
|
m |
max |
3.0 |
3.8 |
4.6 |
5.6 |
7.25 |
8.75 |
10.8 |
|
min |
2.25 |
3.4 |
3.4 |
4.4 |
6.75 |
7.25 |
9.25 |
|
|
s |
max |
5.5 |
7 |
8 |
10 |
13 |
17 |
19 |
|
min |
5.32 |
6.64 |
7.64 |
9.64 |
12.57 |
16.57 |
18.48 |
|
