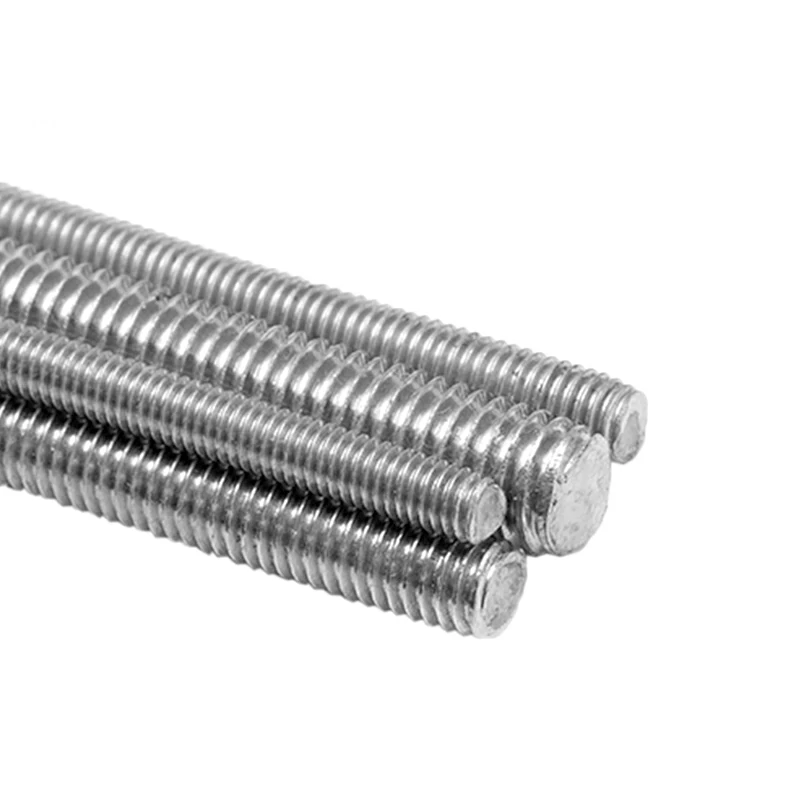

Parameter Information
|
Brand name |
Thread bar |
|
Standard |
DIN975 |
|
Wood quality |
316 stainless steel |
|
Category |
Thread bar |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

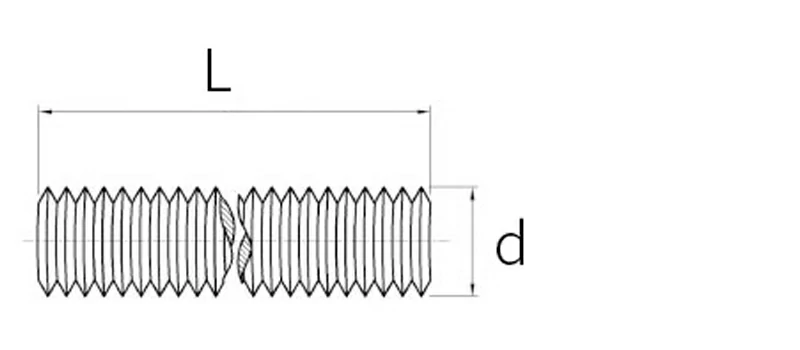

Specification
The following data is a single batch of manual measurement results (please refer to the actual subject, there is an error, mind caution!)
Unit :mm
|
Thread diameter |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
|
Screw pitch |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
|
Thread diameter |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
|
Screw pitch |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
