Description

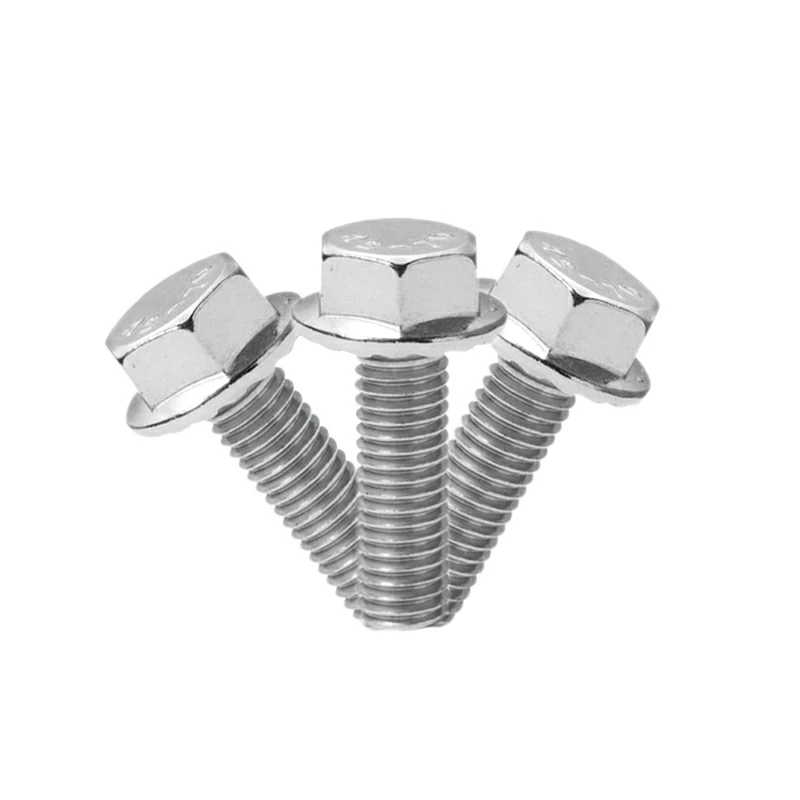

The 304 Stainless Steel GB5789 Flanged Hex Head Bolt is a durable and corrosion-resistant fastener engineered for applications requiring superior load distribution, vibration resistance, and long-term reliability. Designed with an integrated flange beneath the hexagonal head, this bolt eliminates the need for a separate washer while offering enhanced stability and surface protection during tightening.
Manufactured according to the GB5789 standard, this Flanged Hex Head Bolt is ideal for heavy-duty industrial environments, including construction, automotive, marine, machinery, and chemical processing. With its robust structure, deep threading, and excellent anti-rust performance, it ensures secure fastening and long service life even under demanding conditions.
Features & Benefits
- Integrated Flange Design: The built-in outer hexagon flange distributes clamping force over a larger surface area, reducing the risk of loosening due to vibration and protecting the material surface from damage.
- Corrosion and Rust Resistance: Crafted from 304 stainless steel, this fastener offers high wear resistance and strong oxidation resistance. It is highly resistant to rust in humid environments, ensuring long-term durability and a clean appearance.
- High Hardness and Strength: With its robust construction and high hardness, this hexagon bolt is practical and resistant to deformation, maintaining a strong hold even under stress.
- Secure Threading: The deep, uniform screw threads ensure a consistent and powerful clamping force, providing a reliable and stable connection that is easy to lock and won't slip.

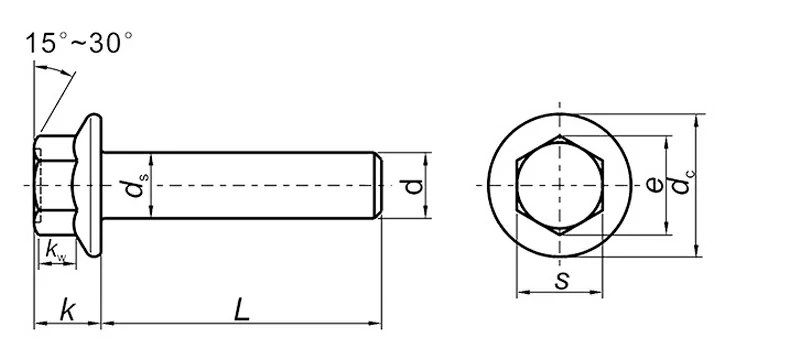

Specification
|
d |
|
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M20 |
|
dc |
max |
11.8 |
14.2 |
18.0 |
22.3 |
26.6 |
30.5 |
35.0 |
43.0 |
|
ds |
max |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
|
min |
4.82 |
5.82 |
7.78 |
9.78 |
11.73 |
13.73 |
15.73 |
19.67 |
|
|
e |
min |
8.56 |
10.8 |
14.08 |
16.32 |
19.68 |
22.58 |
25.94 |
32.66 |
|
k |
max |
5.40 |
6.60 |
8.10 |
9.20 |
10.40 |
12.40 |
14.10 |
17.70 |
|
s |
max |
8 |
10 |
13 |
15 |
18 |
21 |
24 |
30 |
|
min |
7.64 |
9.64 |
12.57 |
14.57 |
17.57 |
20.16 |
23.17 |
29.16 |
FAQ:
Q1: What is the main advantage of using a Flanged Hex Head Bolt over a standard bolt?
A: The main advantage is the integrated flange, which acts like a built-in washer. It distributes the clamping force over a larger surface area, which protects the mating surface and reduces the risk of the fastener loosening due to vibration.
Q3: Does this fastener comply with specific industrial standards?
A: Yes, this hex head bolt is manufactured adhering to the GB5789 standard, ensuring it meets specific requirements for large hexagon flange bolts.
Q3: Do I need a washer with this bolt?
A: No. The integrated flange replaces the need for a separate washer while offering stronger and more reliable fastening.
Q4: Where is this bolt commonly used?
A: It is widely used in automotive assemblies, construction structures, machinery equipment, marine hardware, and chemical processing industries.
Q5: Does the flange design prevent loosening?
A: Yes. The flange increases friction and reduces vibration-related loosening, making it ideal for dynamic or high-load applications.
