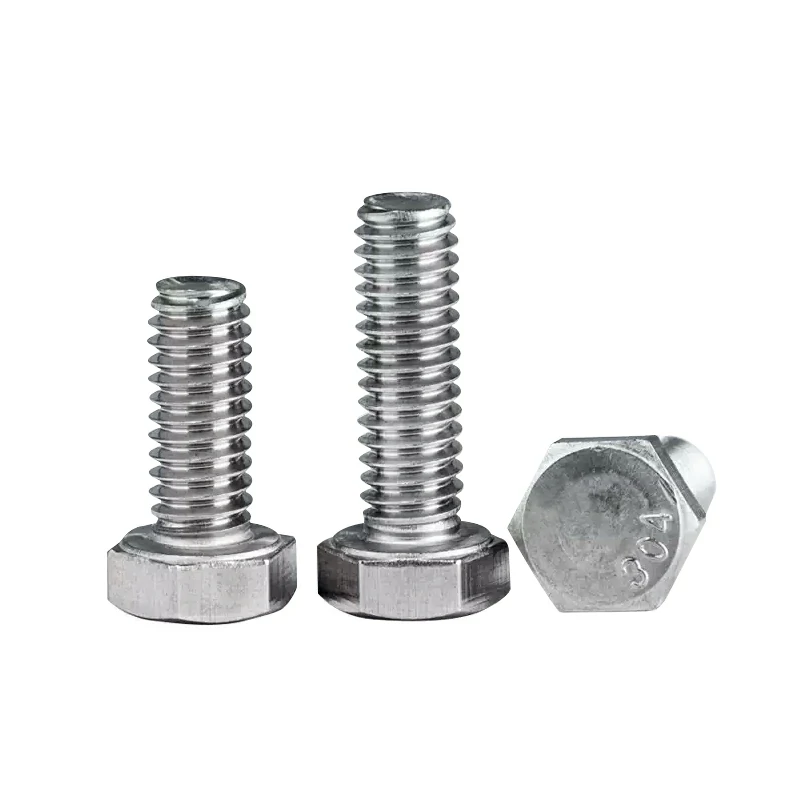

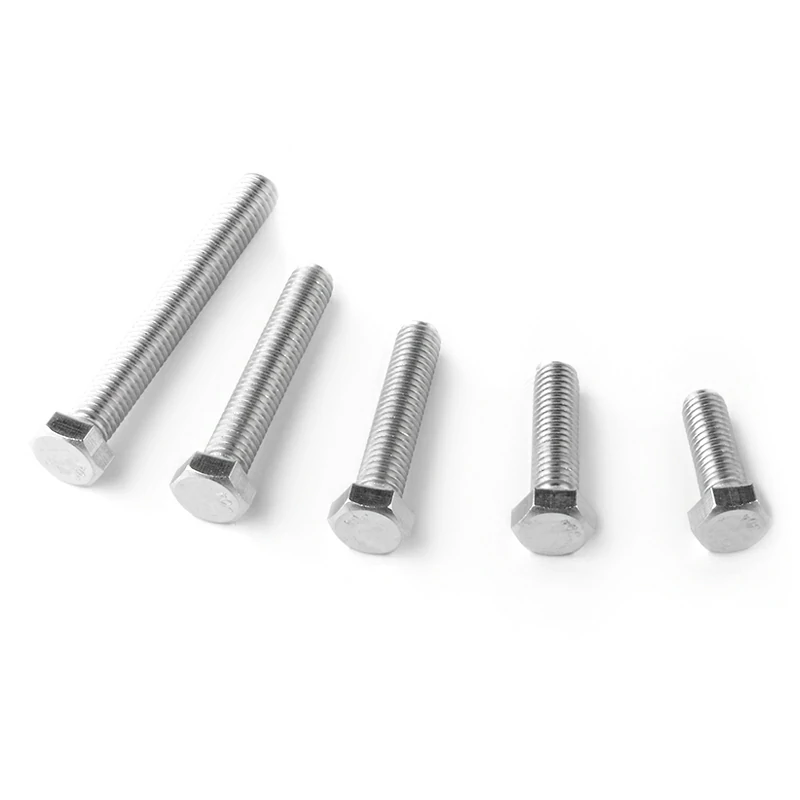

The 304 Stainless Steel American External Hex Head Bolt Full Thread is a corrosion-resistant, durable bolt that offers reliable fastening for a wide range of applications. Its full thread design ensures a strong connection, while the hex head allows for easy tightening with tools. The 304 stainless steel material provides superior protection against corrosion, making it perfect for both indoor and outdoor environments. This Hex Head Bolt Full Thread is used in various industrial and mechanical applications. The ANSI B18.2.1 standard ensures that this bolt meets the required mechanical and dimensional specifications for a variety of industrial and construction needs.
Parameter Information
|
Brand name |
External hexagonal full tooth bolt |
|
Standard |
ANSI B18.2.1 |
|
Wood quality |
304 stainless steel |
|
Head shape |
Outer hexagon |
|
Standard type |
American standard |
|
Surface treatment |
Stainless washing |
|
Packaging |
Packaging bag + carton packaging |

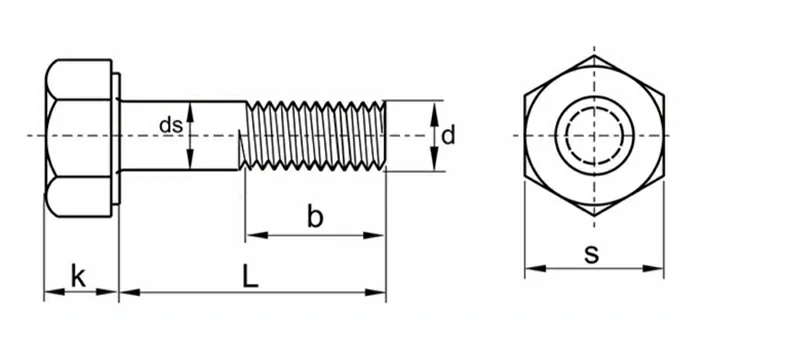

Specification
|
Nominal diameter -d |
ds |
S |
k |
b |
||||
|
max |
min |
max |
min |
max |
min |
L≤6 |
L＞6 |
|
|
1/4 |
0.2500 |
0.2450 |
0.438 |
0.428 |
0.163 |
0.150 |
0.750 |
1.000 |
|
5/16 |
0.3125 |
0.3065 |
0.500 |
0.489 |
0.211 |
0.195 |
0.875 |
1.125 |
|
3/8 |
0.3750 |
0.3690 |
0.562 |
0.551 |
0.243 |
0.226 |
1.000 |
1.250 |
|
7/16 |
0.4375 |
0.4305 |
0.625 |
0.612 |
0.291 |
0.272 |
1.125 |
1.375 |
|
1/2 |
0.5000 |
0.4930 |
0.750 |
0.736 |
0.323 |
0.302 |
1.250 |
1.500 |
|
9/16 |
0.5625 |
0.5545 |
0.812 |
0.798 |
0.371 |
0.348 |
1.375 |
1.625 |
|
5/8 |
0.6250 |
0.6170 |
0.938 |
0.922 |
0.403 |
0.378 |
1.500 |
1.750 |
|
3/4 |
0.7500 |
0.7410 |
1.125 |
1.100 |
0.483 |
0.455 |
1.750 |
2.000 |
|
7/8 |
0.8750 |
0.8660 |
1.312 |
1.285 |
0.563 |
0.531 |
2.000 |
2.250 |
|
1 |
1.0000 |
0.9900 |
1.500 |
1.469 |
0.627 |
0.591 |
2.250 |
2.500 |
|
1-1/8 |
1.1250 |
1.1140 |
1.688 |
1.631 |
0.718 |
0.658 |
2.500 |
2.750 |
|
1-1/4 |
1.2500 |
1.2390 |
1.875 |
1.812 |
0.813 |
0.749 |
2.750 |
3.000 |
|
1-3/8 |
1.3750 |
1.3630 |
2.062 |
1.994 |
0.878 |
0.810 |
3.000 |
3.250 |
|
1-1/2 |
1.5000 |
1.4880 |
2.250 |
2.175 |
0.974 |
0.902 |
3.250 |
3.500 |
|
1-3/4 |
1.7500 |
1.7380 |
2.625 |
2.538 |
1. 134 |
1.054 |
3.750 |
4.000 |
|
2 |
2.0000 |
1.9880 |
3.000 |
2.900 |
1.263 |
1.175 |
4.250 |
4.500 |
|
2-1/4 |
2.2500 |
2.2380 |
3.375 |
3.262 |
1.423 |
1.327 |
4.750 |
5.000 |
|
2-1/2 |
2.5000 |
2.4880 |
3.750 |
3.625 |
1.583 |
1.479 |
5.250 |
5.500 |
|
2-3/4 |
2.7500 |
2.7380 |
4.125 |
3.988 |
1.744 |
1.632 |
5.750 |
6.000 |
|
3 |
3.0000 |
2.9880 |
4.500 |
4.350 |
1.935 |
1.815 |
6.250 |
6.500 |
