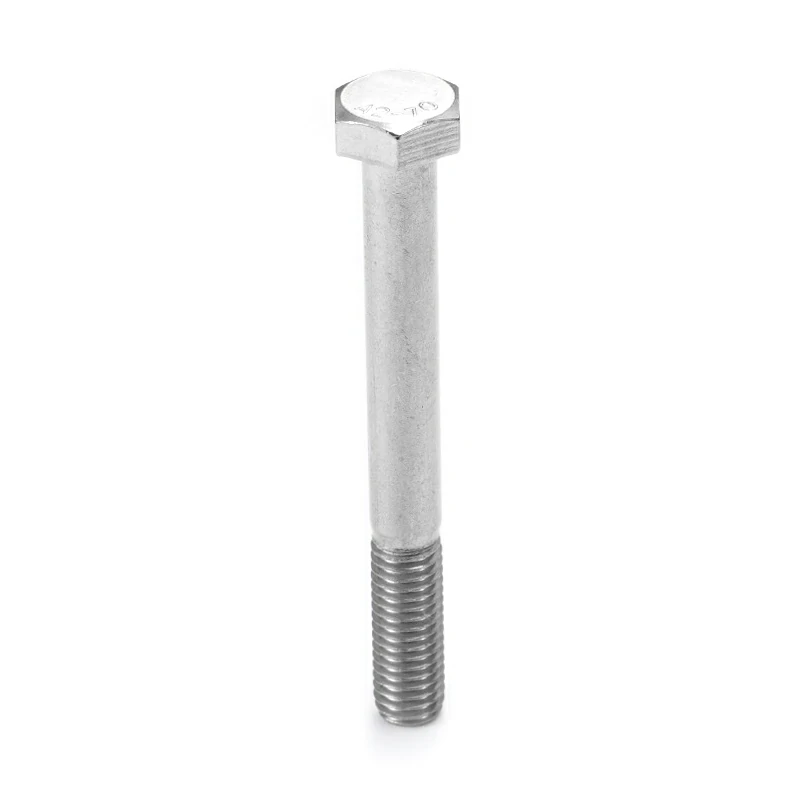

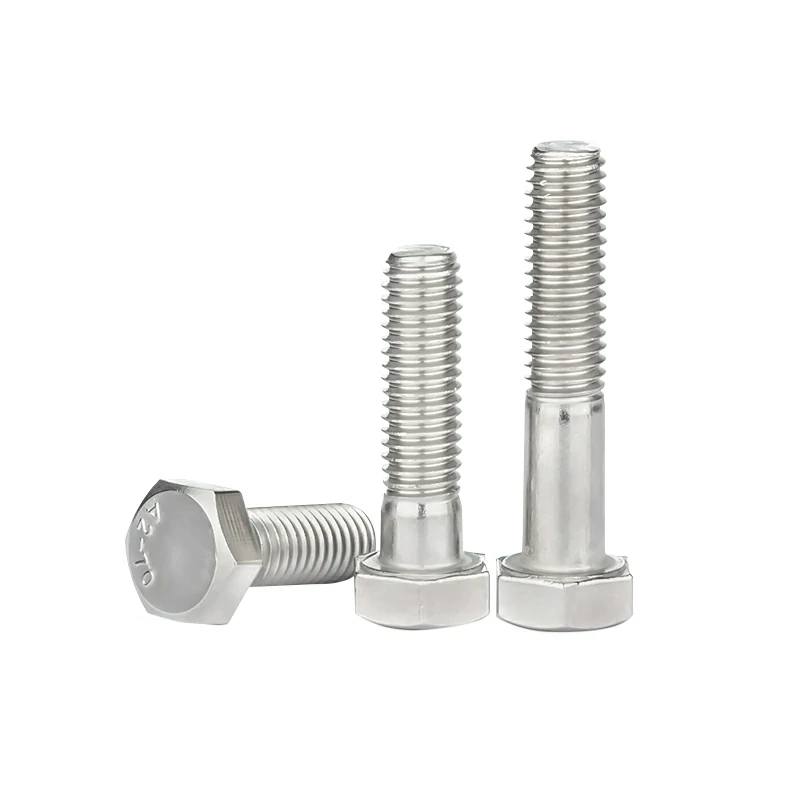

The 304 Stainless Steel Half-Tooth Outer M10 Hex Head Bolt is a robust, corrosion-resistant fastener with a 10mm diameter, an external hexagonal head, and partial threading, manufactured according to the stringent DIN 931 standard for quality and performance. This M10 Hex Head Bolt is typically used in applications where strength, corrosion resistance, and secure fastening are critical, such as in automotive, machinery, or construction. The M10 size and 304 stainless steel construction make it suitable for both indoor and outdoor environments where moisture or corrosive substances might be present.
Parameter Information
|
Brand name |
Outer hexagon full tooth bolt |
|
Standard |
DIN931 |
|
Wood quality |
304 stainless steel |
|
Product strength |
A2-70 |
|
Head shape |
Outer hexagon |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

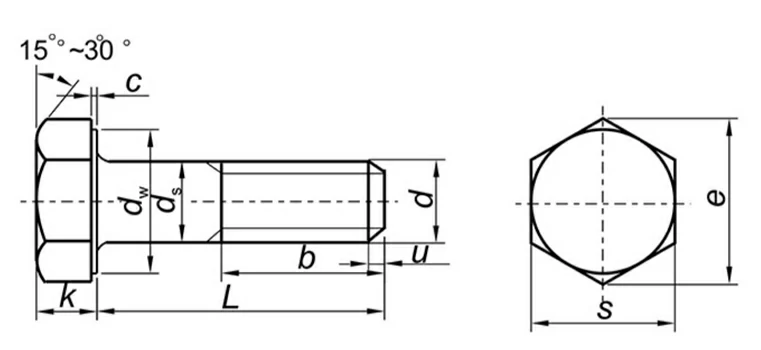

Specification
Thread accuracy: 8g
Thread length: L<125 b=2d+6 125≤L≤200 b=2d+12 L>200 b=2d+25
|
d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
||
|
ds |
max |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
|
min |
Level A |
2.86 |
3.82 |
4.82 |
5.82 |
7.78 |
9.78 |
11.73 |
13.73 |
15.73 |
|
|
Grade B |
3.75 |
3.7 |
4.7 |
5.7 |
7.64 |
9.64 |
11.57 |
13.57 |
15.57 |
||
|
e |
min |
Level A |
6.01 |
7.66 |
8.79 |
11.05 |
14.38 |
17.77 |
20.03 |
23.36 |
26.75 |
|
Grade B |
5.88 |
7.5 |
8.63 |
10.89 |
14.20 |
17.59 |
19.85 |
22.78 |
26.17 |
||
|
k |
Nominal |
2 |
2.8 |
3.50 |
4 |
5.3 |
6.4 |
7.5 |
8.8 |
10 |
|
|
Level A |
min |
1.875 |
2.675 |
3.35 |
3.85 |
5.15 |
6.22 |
7.32 |
8.62 |
9.82 |
|
|
max |
2.125 |
2.925 |
3.65 |
4.15 |
5.45 |
6.58 |
7.68 |
8.98 |
10.18 |
||
|
Grade B |
min |
1.8 |
2.6 |
3.26 |
3.76 |
5.06 |
6.11 |
7.21 |
8.51 |
9.71 |
|
|
max |
2.2 |
3 |
3.74 |
4.24 |
5.54 |
6.69 |
7.79 |
7.09 |
10.29 |
||
|
s |
Level A |
max |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
|
min |
5.32 |
6.78 |
7.78 |
9.78 |
12.73 |
15.73 |
17.73 |
20.67 |
23.67 |
||
|
Grade B |
max |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
|
|
min |
5.2 |
6.64 |
7.64 |
9.64 |
12.57 |
15.57 |
17.57 |
20.16 |
23.16 |
||
|
d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
||
|
ds |
max |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
|
min |
Level A |
2.86 |
3.82 |
4.82 |
5.82 |
7.78 |
9.78 |
11.73 |
13.73 |
15.73 |
|
|
Grade B |
3.75 |
3.7 |
4.7 |
5.7 |
7.64 |
9.64 |
11.57 |
13.57 |
15.57 |
||
|
e |
min |
Level A |
6.01 |
7.66 |
8.79 |
11.05 |
14.38 |
17.77 |
20.03 |
23.36 |
26.75 |
|
Grade B |
5.88 |
7.5 |
8.63 |
10.89 |
14.20 |
17.59 |
19.85 |
22.78 |
26.17 |
||
|
k |
Nominal |
2 |
2.8 |
3.50 |
4 |
5.3 |
6.4 |
7.5 |
8.8 |
10 |
|
|
Level A |
min |
1.875 |
2.675 |
3.35 |
3.85 |
5.15 |
6.22 |
7.32 |
8.62 |
9.82 |
|
|
max |
2.125 |
2.925 |
3.65 |
4.15 |
5.45 |
6.58 |
7.68 |
8.98 |
10.18 |
||
|
Grade B |
min |
1.8 |
2.6 |
3.26 |
3.76 |
5.06 |
6.11 |
7.21 |
8.51 |
9.71 |
|
|
max |
2.2 |
3 |
3.74 |
4.24 |
5.54 |
6.69 |
7.79 |
7.09 |
10.29 |
||
|
s |
Level A |
max |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
|
min |
5.32 |
6.78 |
7.78 |
9.78 |
12.73 |
15.73 |
17.73 |
20.67 |
23.67 |
||
|
Grade B |
max |
5.5 |
7 |
8 |
10 |
13 |
16 |
18 |
21 |
24 |
|
|
min |
5.2 |
6.64 |
7.64 |
9.64 |
12.57 |
15.57 |
17.57 |
20.16 |
23.16 |
||
