Parameter Information
|
Brand name |
Elastic retainer for shaft |
|
Standard |
GB894.1 |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

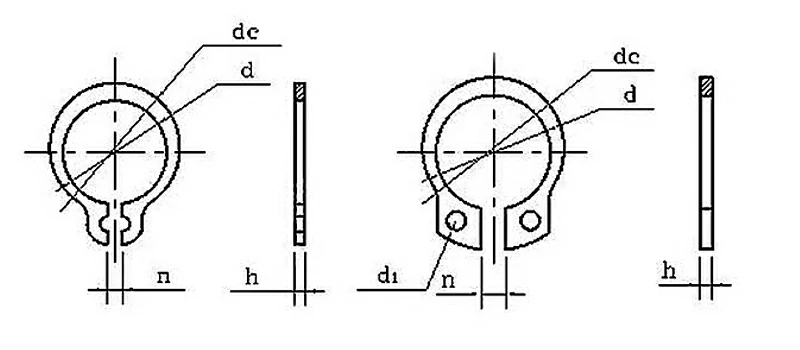

Specification
|
Specification -do |
Inside diameter -d |
Outside diameter -D |
Thickness |
Specification -do |
Inside diameter -d |
Outside diameter -D |
Thickness |
|
Φ3 |
2.7 |
3.9 |
0.4 |
Φ34 |
31.5 |
38 |
1.8 |
|
Φ4 |
3.7 |
5 |
Φ35 |
32.2 |
39 |
||
|
Φ5 |
4.7 |
6.4 |
0.5 |
Φ36 |
33.2 |
40 |
|
|
Φ6 |
5.6 |
7.6 |
Φ37 |
34.2 |
41 |
||
|
Φ7 |
6.5 |
8.48 |
Φ38 |
35.2 |
42.7 |
||
|
Φ8 |
7.4 |
9.38 |
0.7 |
Φ38 |
35.2 |
44 |
|
|
Φ9 |
8.4 |
10.56 |
Φ40 |
36.5 |
46 |
||
|
Φ10 |
9.3 |
11.5 |
1 |
Φ42 |
38.5 |
49 |
|
|
Φ11 |
10.2 |
12.5 |
Φ45 |
42.5 |
49 |
||
|
Φ12 |
11 |
13.6 |
Φ47 |
43.5 |
51 |
||
|
Φ13 |
11.9 |
14.7 |
Φ48 |
44.5 |
52 |
||
|
Φ14 |
12.9 |
15.7 |
Φ50 |
45.8 |
54 |
2 |
|
|
Φ15 |
13.8 |
16.8 |
Φ52 |
47.5 |
56 |
||
|
Φ16 |
14.7 |
18.2 |
Φ55 |
50.8 |
59 |
||
|
Φ17 |
15.7 |
19.4 |
Φ58 |
53.8 |
63 |
||
|
Φ18 |
16.5 |
20.2 |
Φ60 |
55.8 |
65 |
||
|
Φ19 |
17.5 |
21.2 |
Φ62 |
57.8 |
67 |
||
|
Φ20 |
18.5 |
22.5 |
Φ65 |
60.8 |
70 |
2.5 |
|
|
Φ21 |
19.5 |
23.5 |
Φ68 |
63.5 |
73 |
||
|
Φ22 |
20.5 |
24.5 |
Φ70 |
65.5 |
75 |
||
|
Φ23 |
20.5 |
24.5 |
1.2 |
Φ72 |
70 |
77 |
|
|
Φ24 |
22.2 |
27.2 |
Φ75 |
73.5 |
80 |
||
|
Φ25 |
23.2 |
28.2 |
Φ78 |
73.5 |
83 |
||
|
Φ26 |
24.2 |
29.2 |
Φ80 |
74.5 |
85 |
||
|
Φ27 |
25.2 |
30.2 |
Φ85 |
79.5 |
90 |
||
|
Φ28 |
25.9 |
31.3 |
Φ90 |
84.5 |
96 |
||
|
Φ30 |
27.9 |
33.5 |
Φ95 |
89.5 |
103.3 |
||
|
Φ32 |
29.6 |
35.5 |
Φ100 |
94.5 |
108.5 |
