Parameter Information
|
Brand name |
Pin |
|
Wood quality |
304 stainless steel |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

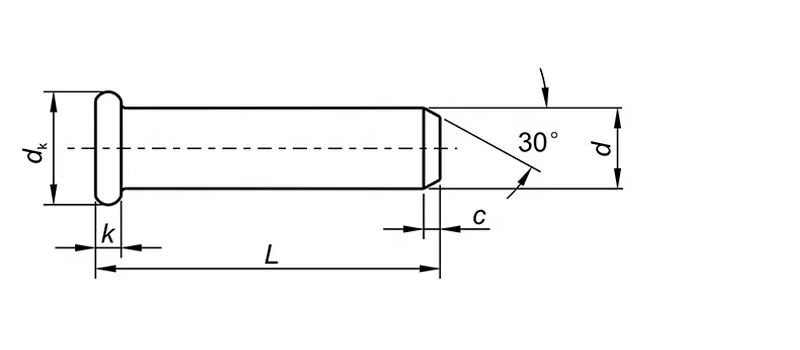

Specification
|
Specification |
Outside diameter |
Head breadth |
Height of head |
Pin hole diameter |
Distance from tail to center of pin hole |
|
M3 |
2.9-3 |
5.4-5.6 |
1.1-1.3 |
1.4-1.6 |
min1.6 |
|
M4 |
3.85-3.9 |
6.8-7.0 |
1.3-1.5 |
1.6-1.8 |
min.2.2 |
|
M5 |
4.8-4.9 |
8.2-8.4 |
1.6-1.8 |
1.9-2.1 |
min.2.9 |
|
M6 |
5.8-5.9 |
9.7-10.0 |
1.9-2.1 |
2.1-2.3 |
min.3.2 |
|
M8 |
7.8-7.9 |
12.3-12.5 |
2.4-2.6 |
3.1-3.3 |
min.3.5 |
|
M10 |
9.8-9.9 |
14.3-14.5 |
2.9-3.1 |
3.1-3.3 |
min.4.5 |
|
M12 |
11.8-11.9 |
17-17.3 |
3.2-3.4 |
3.9-4.1 |
min.5.5 |
