Parameter Information
|
Brand name |
Adjusting nut |
|
Standard |
DIN315 |
|
Type |

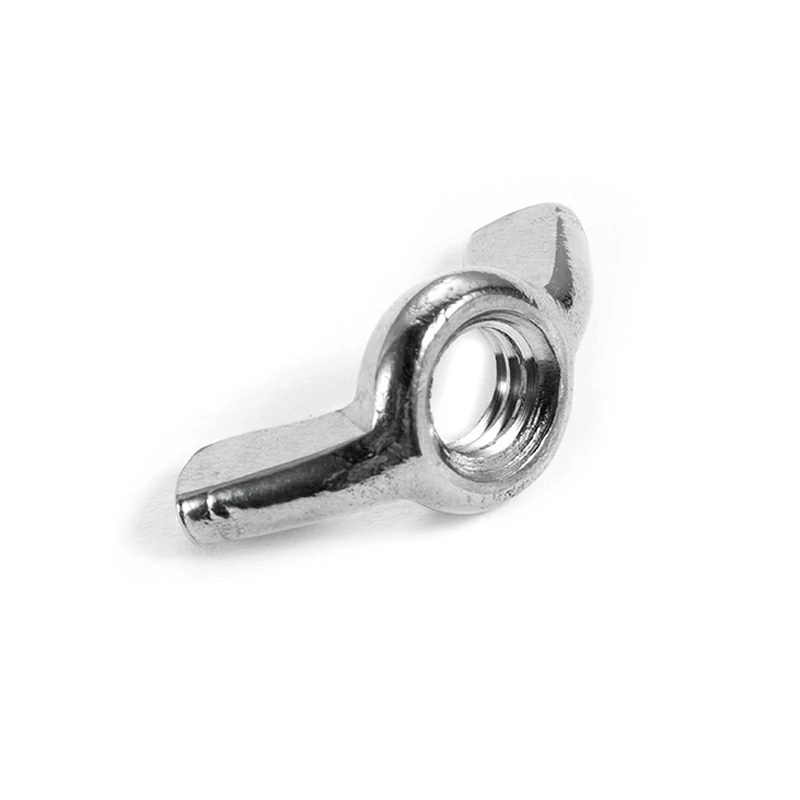

Butterfly nut |
|
Product strength |
A2-70 |
|
Mode of action |
Hand screwing |
|
Wood quality |
304 stainless steel |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

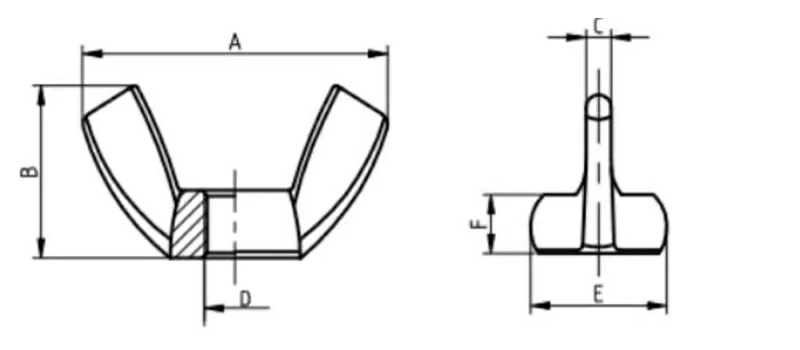

Specification
|
Specification -D |
Wing width -A |
Total height -B |
Wing thickness -C |
Nut outer diameter -E |
Nut thickness -F |
|||||
|
|
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
|
M3×0.5 |
18.50 |
20.00 |
9.00 |
11.00 |
2.30 |
3.00 |
7.50 |
9.00 |
3.00 |
4.00 |
|
M4×0.7 |
18.50 |
20.00 |
9.00 |
11.00 |
2.30 |
3.00 |
7.50 |
9.00 |
3.00 |
4.00 |
|
M5×0.8 |
20.50 |
22.50 |
10.00 |
12.00 |
2.80 |
3.50 |
8.50 |
10.00 |
3.50 |
4.50 |
|
M6×1.0 |
24.50 |
26.50 |
11.50 |
14.00 |
3.30 |
4.00 |
10.70 |
12.00 |
4.50 |
5.50 |
|
M8×1.25 |
28.00 |
30.00 |
13.50 |
16.00 |
3.30 |
4.00 |
12.50 |
14.00 |
5.00 |
6.09 |
|
M10×1.5 |
35.50 |
37.50 |
16.00 |
18.50 |
3.50 |
4.50 |
16.00 |
17.50 |
5.50 |
6.60 |
