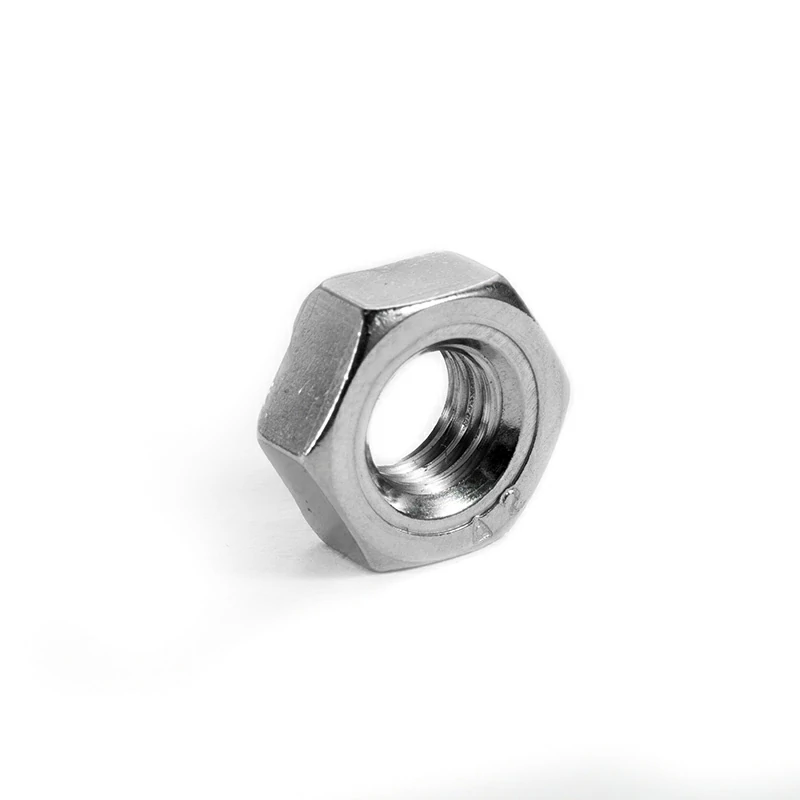

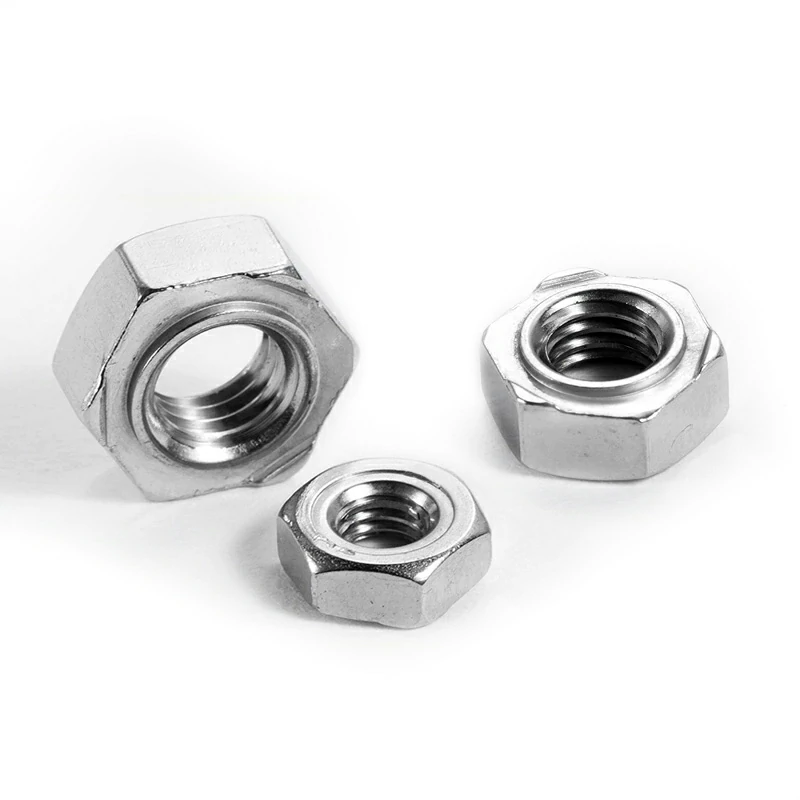

Parameter Information
|
Brand name |
Hexagon welding nut |
|
Standard |
DIN929 |
|
Type |
Welding nut |
|
Wood quality |
304 stainless steel |
|
Mode of action |
weld |
|
Standard type |
German standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

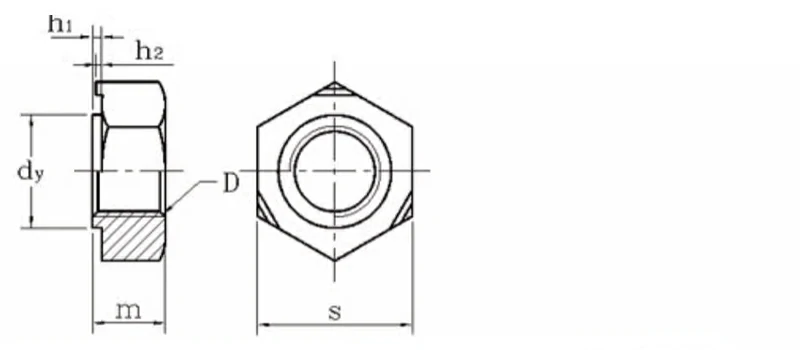

Specification
|
Nominal diameter -D |
Pitch -P |
H1 |
H2 |
m h14 |
s h13 |
dy d11 |
||
|
Nominal |
Allowance |
Nominal |
Allowance |
|||||
|
M3 |
0.5 |
0.55 |
0 -0.1 |
0.25 |
0 -0.1 |
3 |
7.5 |
4.5 |
|
M4 |
0.6 |
0.65 |
0.35 |
3.5 |
9 |
6 |
||
|
M5 |
0.8 |
0.7 |
0.4 |
4 |
10 |
7 |
||
|
M6 |
1 |
0.75 |
0 -0.15 |
0.4 |
5 |
11 |
8 |
|
|
M8 |
1.25 |
0.9 |
0.5 |
0 -0.15 |
6.5 |
14 |
10.5 |
|
|
M10 |
1.5 |
1.15 |
0.65 |
8 |
17 |
12.5 |
||
|
M12 |
1.75 |
1.4 |
0 -0.5 |
0.8 |
0 -0.2 |
10 |
19 |
14.8 |
|
M14 |
2 |
1.8 |
1 |
11 |
22 |
16.8 |
||
|
M16 |
2 |
1.8 |
1 |
13 |
24 |
18.8 |
||
