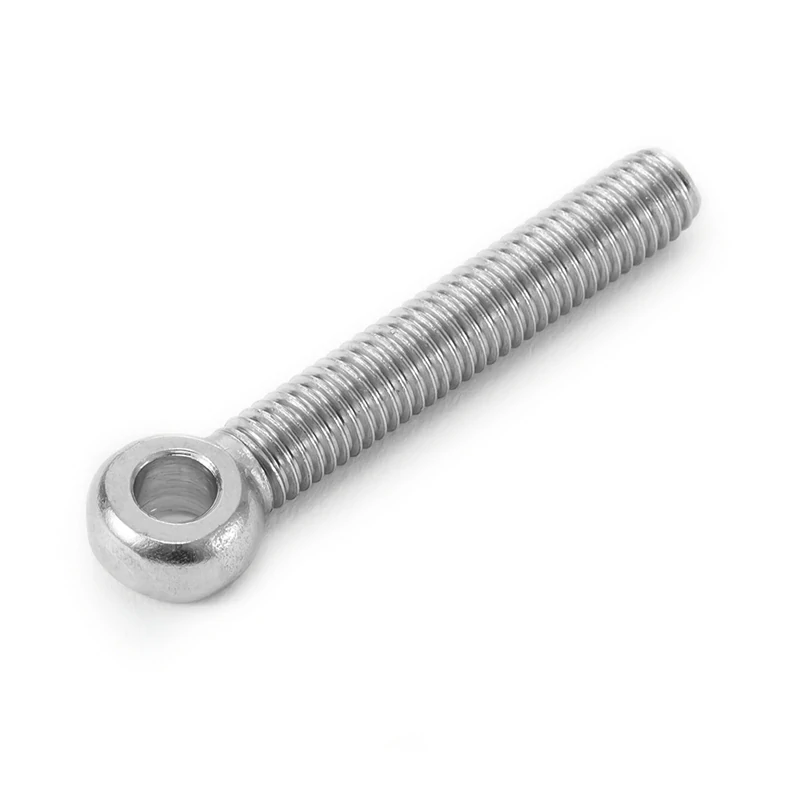

Parameter Information
|
Brand name |
Knuckle bolt |
|
Standard |
GB798 |
|
Wood quality |
304 stainless steel |
|
Head shape |
Roundness |
|
Standard type |
National standard |
|
Surface treatment |
Stainless steel washing |
|
Packaging |
Packaging bag + carton packaging |

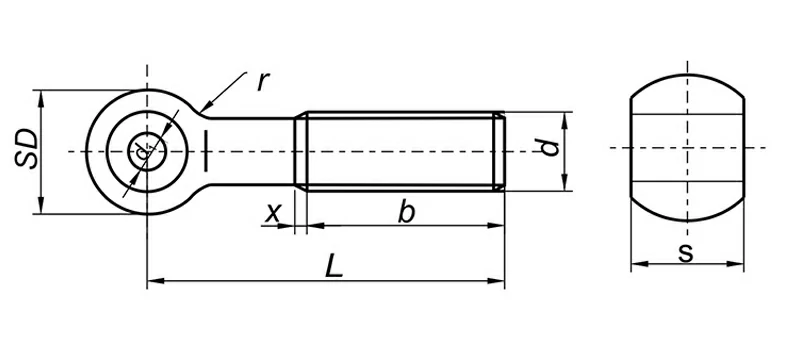

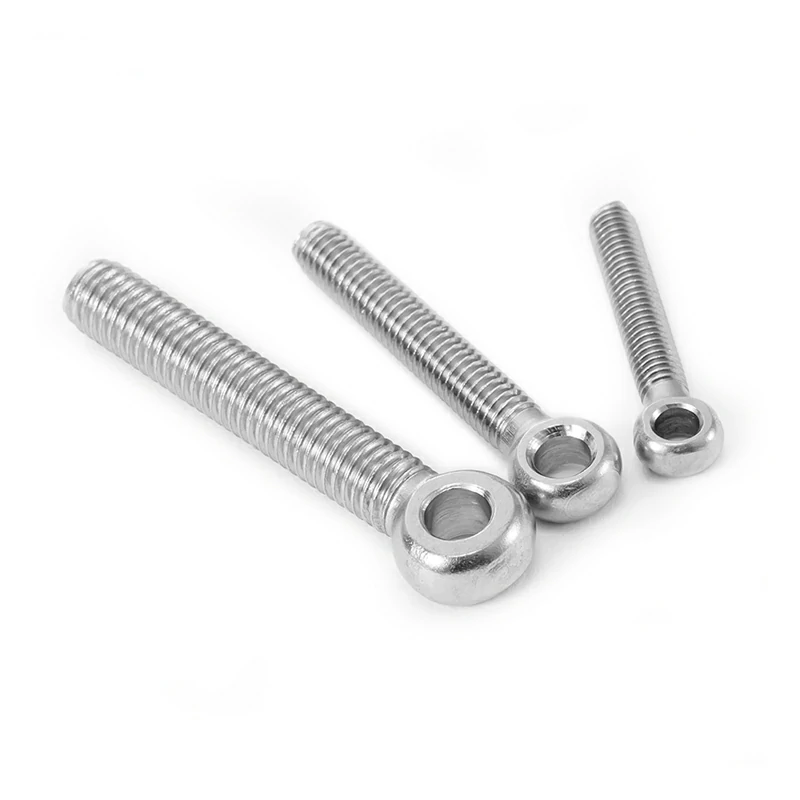

Specification
There are tolerances in this product, the size is subject to the actual object, please be careful to shoot!
Size unit: mm
|
Specification |
Length |
Head diameter |
Head thickness |
Aperture |
Thread length |
|
M5 |
25-40 |
8.2-8.5 |
4.4-4.6 |
4.2-4.3 |
Full thread |
|
M5) |
45-70 |
8.2-8.5 |
4.4-4.6 |
4.2-4.3 |
40 |
|
M6 |
20-50 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
Full thread |
|
M6 |
55-100 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
40 |
|
M8 |
20-60 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
Full thread |
|
M8 |
65-150 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
40 |
|
M10 |
25-50 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
Full thread |
|
M10 |
55-150 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
50 |
|
M12 |
40-70 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
Full thread |
|
M12 |
80-150 |
11-11.5 |
5.3-5.5 |
5.2-5.4 |
60 |
|
M16 |
60-70 |
27.5-28.5 |
17.5-18 |
12.2-12.5 |
Full thread |
|
M16 |
80-150 |
27.5-28.5 |
17.5-18 |
12.2-12.5 |
70 |
|
M20 |
70-90 |
27.5-28.5 |
17.5-18 |
12.2-12.5 |
Full thread |
|
M20 |
100-160 |
27.5-28.5 |
17.5-18 |
12.2-12.5 |
80 |
